Features
-Slide Mechanism: They feature a slide or toggle mechanism that allows users to change the position of internal switches to configure binary (on/off) settings.
-Recessed Design: The switches are recessed into the housing, providing protection against accidental toggling and minimizing the risk of damage during handling or operation.
-Number of Pins: They come in configurations ranging from 1 to 12 pins, where each pin corresponds to a specific switch or setting. The number of pins determines the number of binary options (2^n) available for configuration.
-Compact Size: DIP switches are typically compact in size, making them suitable for integration into small electronic devices, circuit boards, and modules.
Applications
1.Networking and Telecommunications
2.Computer Peripherals
3.Consumer Electronics
4.Industrial Automation
Specifications
Slide Recessed type dip switch 1~12pins
Material:
Cover: PBT plastic (red or blue)
Base: PBT plastic (black)
Operator: POM plastic (white)
Stock: epoxy resin potting
Terminal: tin plated phosphor bronze, contact gold plated 3u"
Sealing tape: polyimide KAPTON
Switching Characteristics:
Switch Capacity: 25mA at 24VDC
Insulation Resistance:100MΩ at 250VDC
Contact Resistance: 50mΩ max.
Insulation strength: 500VAC / 1min
Operation Force : 1000gf max.
Electrical life: 2000 times
Operation Temp:-20ºC~+70ºC
Welding requirements:
Manual welding: 320 degrees C no more than 2 seconds. (30 watt iron max.)
Wave soldering: 260 degrees C no more than 5 seconds, in the welding and cleaning process switch is open state.
Technical Documents
Please contact us for more information.

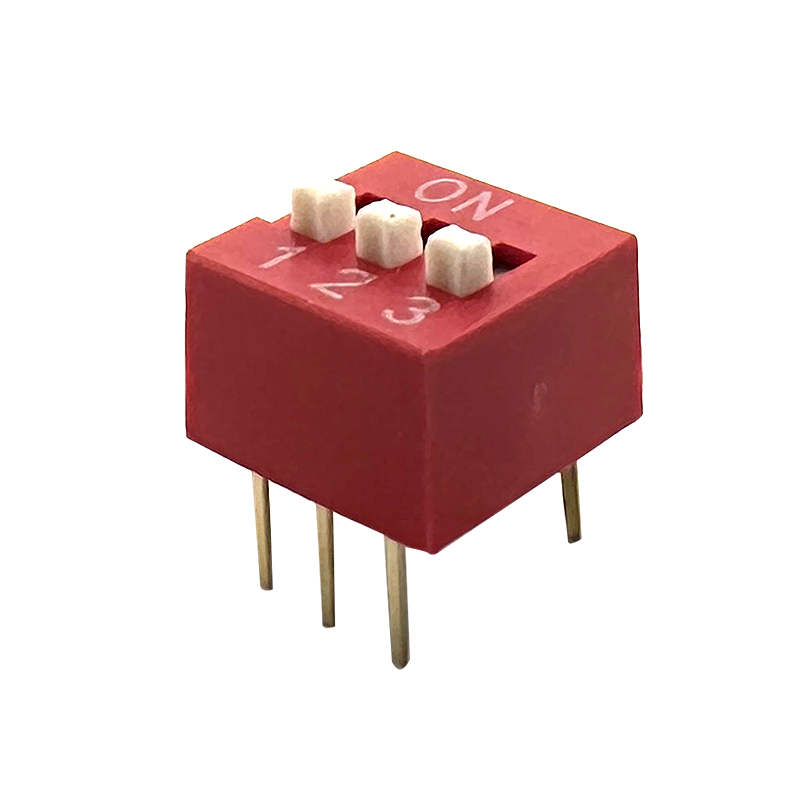

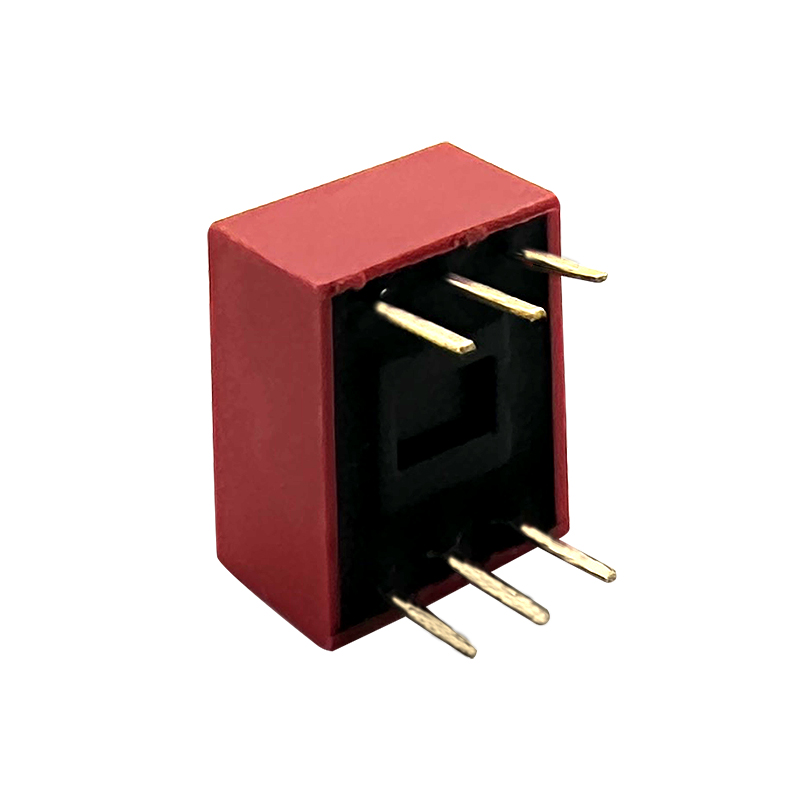

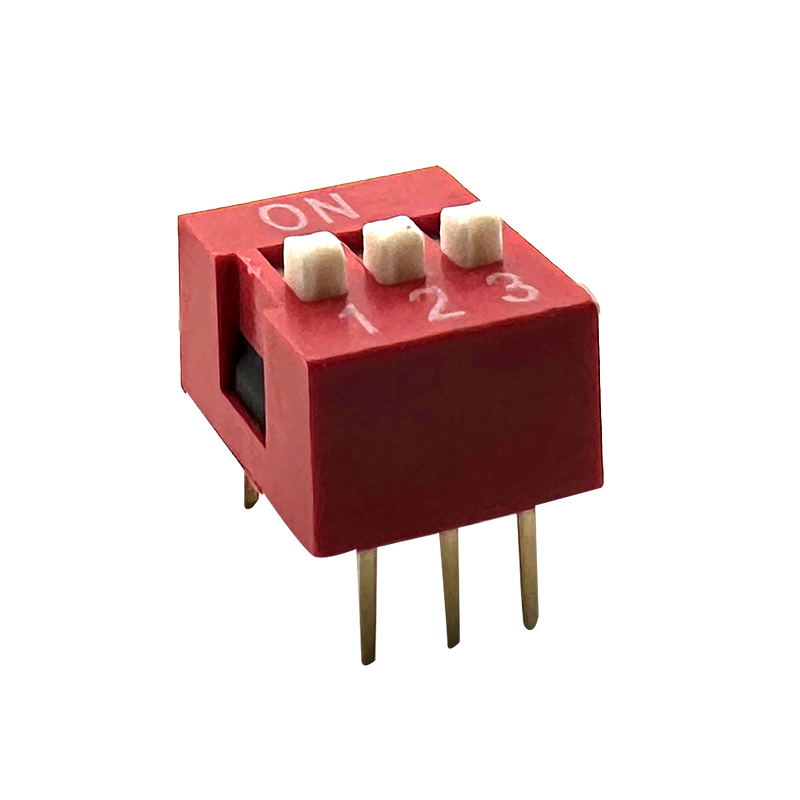

Slide Recessed type dip switch 1~12pins:RHTGYSTR
