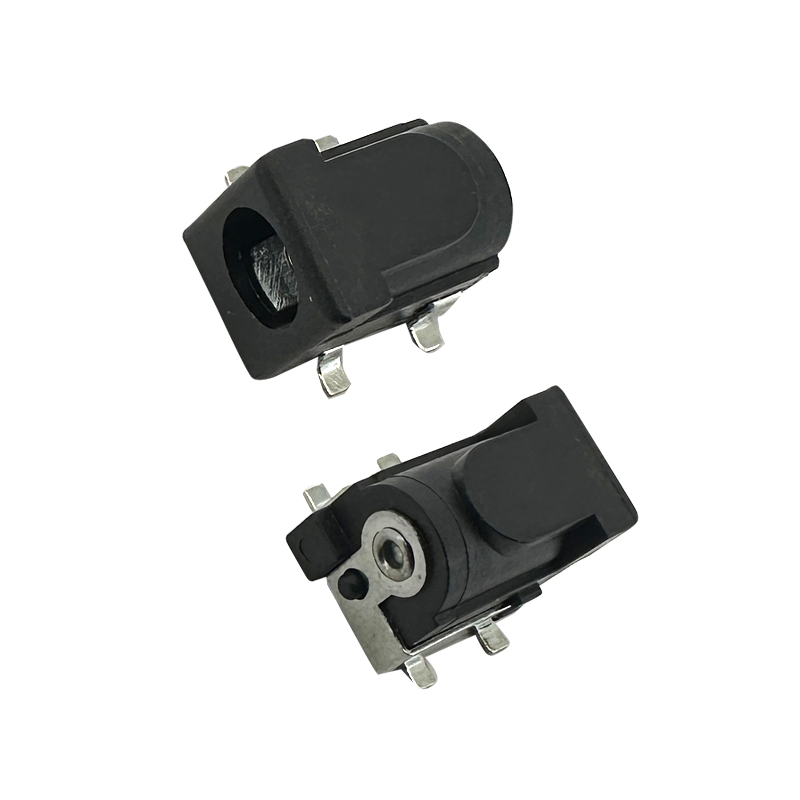

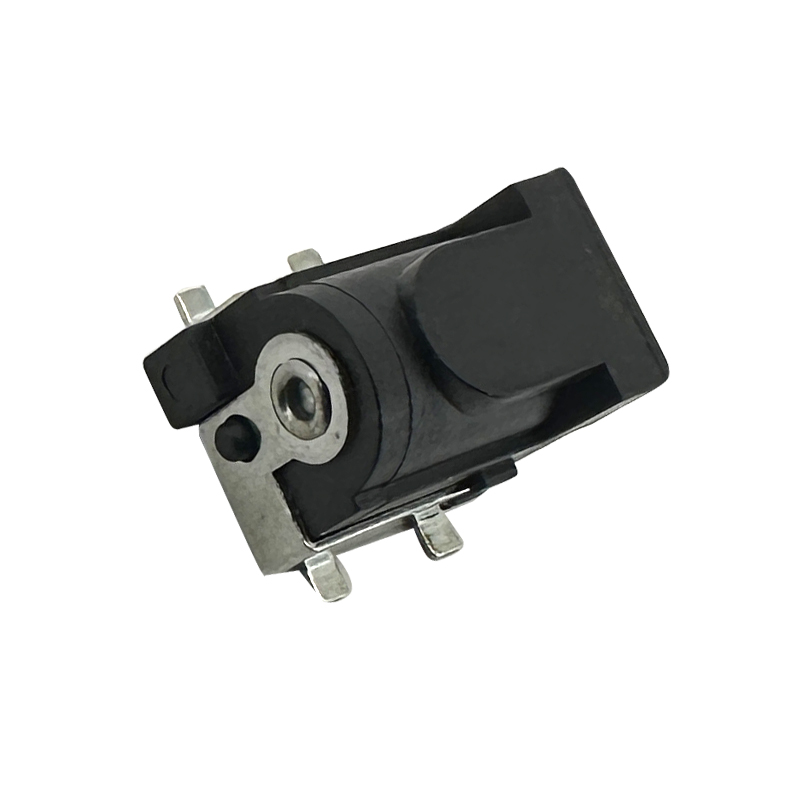

    DC POWER Jack SMT HORIZONTAL:RHTAYDC-001

    Series Part No: RHTAYDC-001
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N


    Features

    -Connector Type: They typically feature a barrel-type connector, either cylindrical or rectangular in shape, that accepts a corresponding plug from the power adapter. The connector's design ensures a secure electrical connection.

    -Polarity Markings: Like other DC power connectors, SMT horizontal jacks are marked with polarity indicators (often center-positive or center-negative) to ensure correct alignment with the power supply and prevent damage to the connected device.

    -Voltage and Current Ratings: These connectors come in various sizes and ratings to accommodate different voltage and current requirements, ensuring compatibility with the power supply and the device being powered.

    -Durability and Reliability: High-quality SMT horizontal DC power jacks are made from durable materials such as metal or high-temperature plastics to withstand repeated insertions and removals, as well as environmental factors.

    Applications

    1.Laptops and Tablets

    2.Networking Equipmen

    3.Industrial Electronics

    4.Medical Devices

    Specifications

    Rated Load: DC 30V 0.5A

    Contact resistance: 30mΩ, max

    Insulation resistance: 100MΩ, min

    Withstand Voltage: AC500V

    Actuating Force: 3~20N

    Life: 5000 cycles

    Operating Temperature: -30ºC ~ 70ºC

    Technical Documents

    Please contact us for more information.
