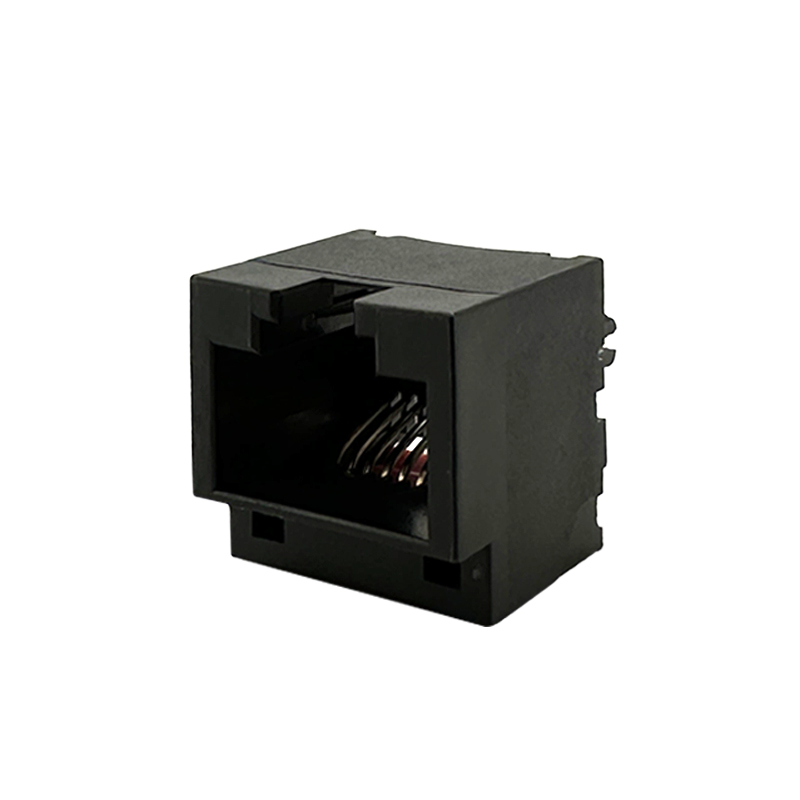

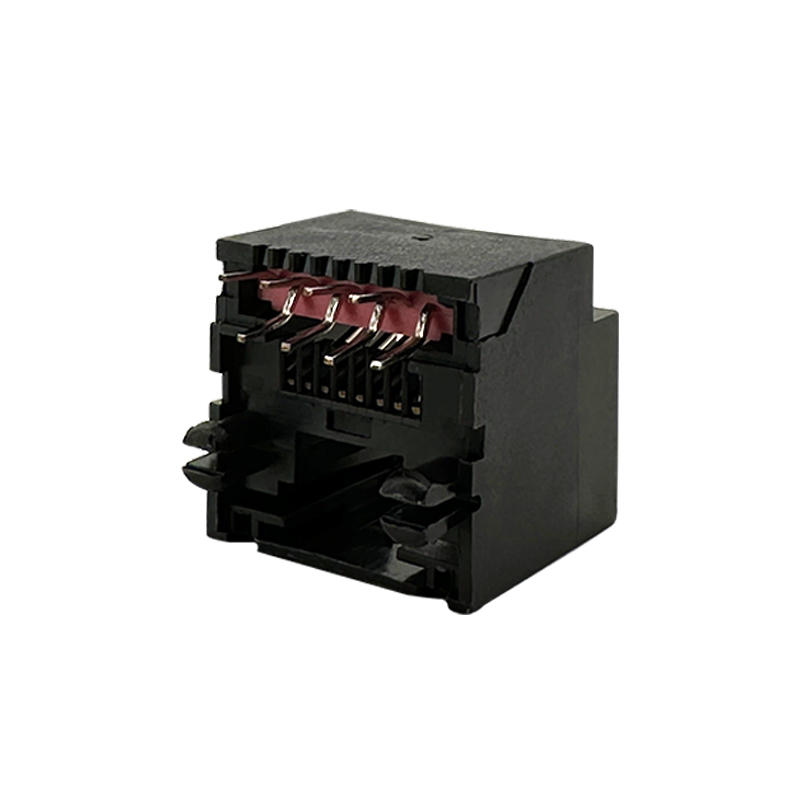

RJ11 4P4C Jack Vertical : RE-C-152-4P4C

Series Part No: RE-C-152-4P4C

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Material:
Housing: Engineering Thermoplastic
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze
Plating: Gold Plating Over Nickel in Contact.
Tin Plating Over Nickel in Solder Area.
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 40mΩ Max.
Insulation Resistance: 1000MΩ Min. @500VDC
Dielectric Strength: 1000VAC Rms 60Hz,1 Min.
Durability: 750 cycles Min.
Operation Temperature:-20°C~+75°C

RJ11 4P4C Jack Vertical : RE-C-152-4P4C
