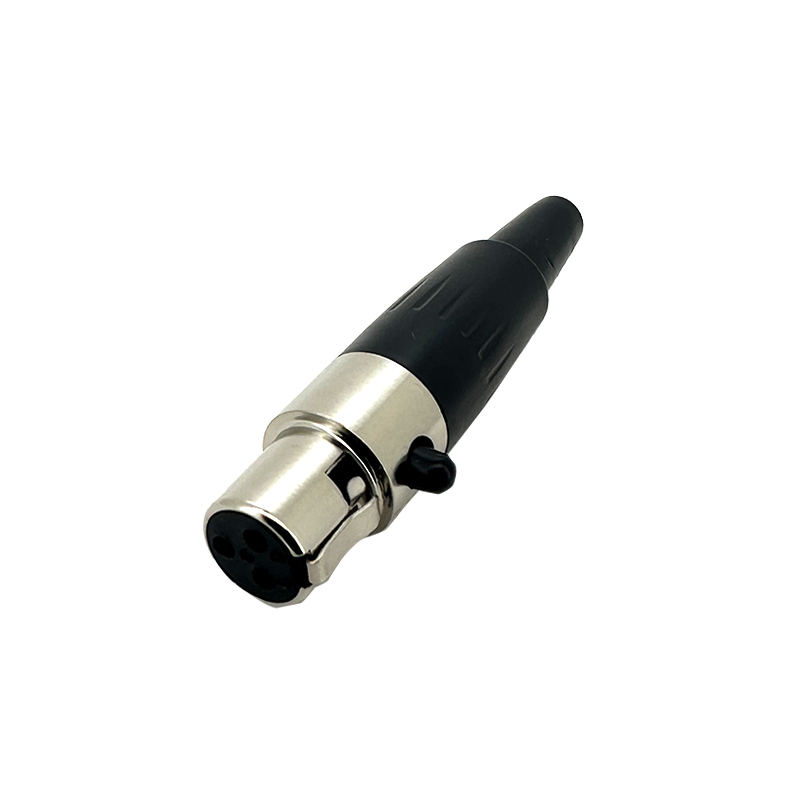

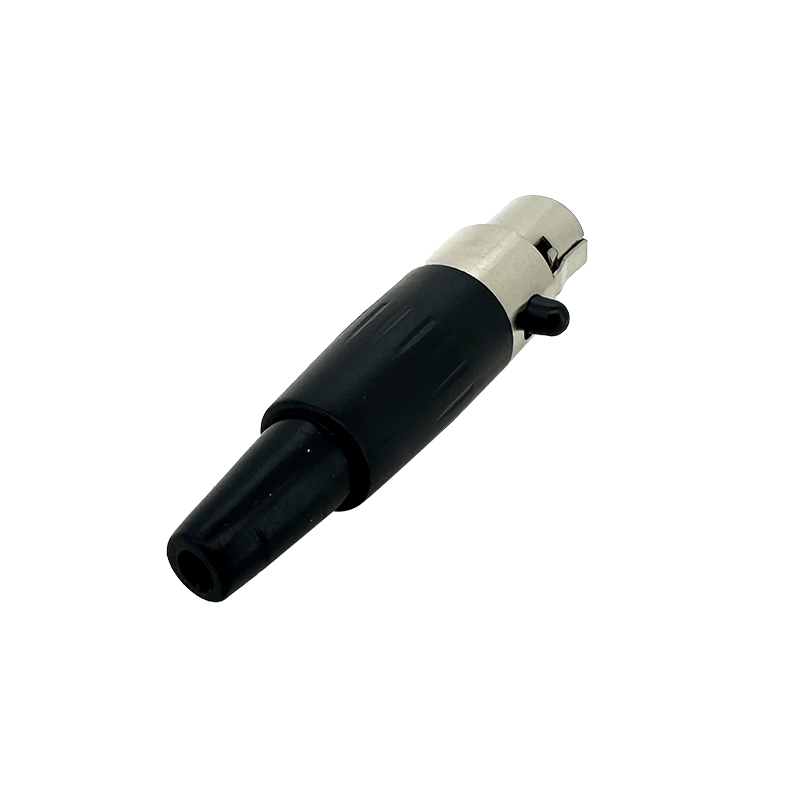

Mini XLR Plug : RE-C-XLR-P01A

Series Part No: RE-C-XLR-P01A

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Electrical Specification:
Rated current / voltage: 3A 250VAC
The contact resistance: 5mΩMax
nsulation Resistance: 500VDC 1000MΩmin
The test voltage: 1000 VDC 1Min
he ambient temperature: -30° C ~ 100° C
he life of the product: 5000
Diameter: Φ2 ~ Φ5mm
Material:
Contact material: gold-plated copper
Insulator material: PA66,of PBT
Connector Body Material: Metal

Mini XLR Plug : RE-C-XLR-P01A
