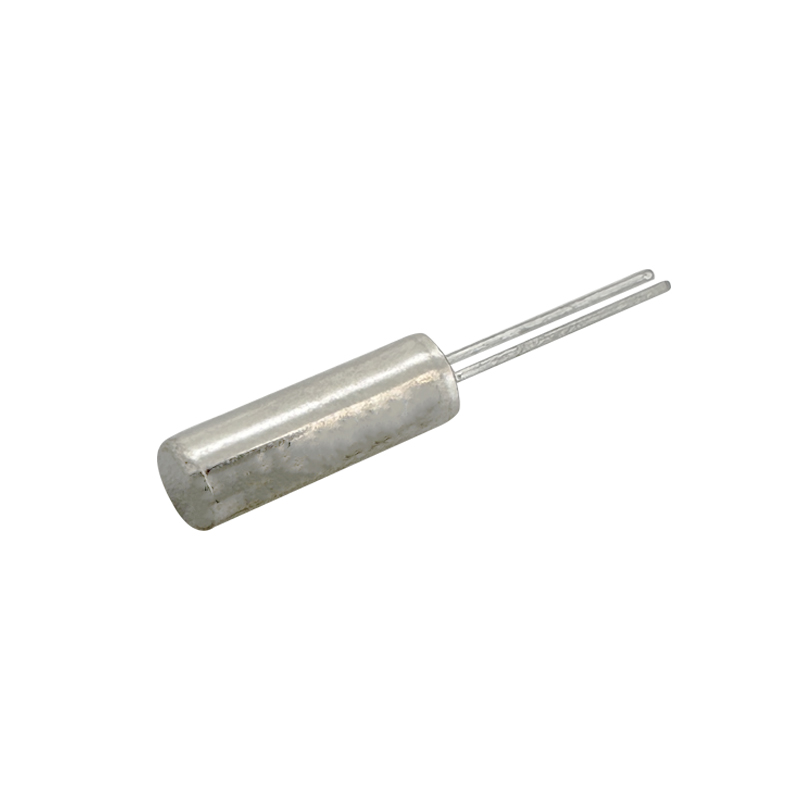

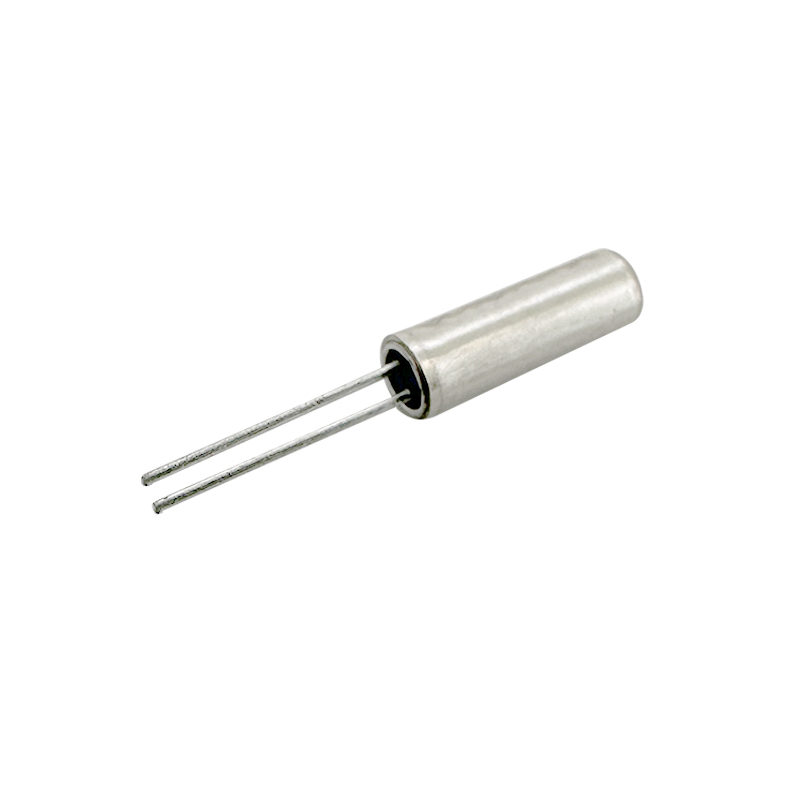

    32.768KHz Crystal Units 2.0x6.0mm DIP:RHTNYU206

    Series Part No: RHTNYU206
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N


    Features

    -Frequency Stability: Provides a stable oscillation frequency of 32.768 kHz, which is commonly used as a timekeeping reference in real-time clocks (RTCs) and for synchronization purposes in digital systems.

    -Compact Size: The 2.0x6.0 mm DIP package is relatively small, making it suitable for PCB designs where space is limited.

    -High Accuracy: Offers high precision in frequency output, crucial for maintaining accurate timekeeping and synchronization in electronic devices.

    -Temperature Stability: Typically designed with temperature-compensated materials or temperature-compensated cuts to minimize frequency variations over temperature changes.

    Applications

    1.Real-Time Clocks (RTCs)

    2.Wearable Devices

    3.Consumer Electronics

    4.Communication Systems

    Specifications

    Dimensions(3.0x8.0mm)

    Nominal frequency range:32 768K . Hz

    Crystal cut:Fundamental [AT–cut]

    Storage temperature range:-40  ℃∼ +85℃

    Operating temperature range:-20℃~+70℃,-40℃~+85℃

    Frequency temperature characteristics (Ref. to +25 ):±20x10-6,or specify

    Frequency tolerance (at +25℃):±10X10-6,±20X10-6,±30X10-6,or specify

    Equivalent series resistance:50K max

    Load capacitance:12.5pF,or specify

    Shunt capacitance:1.6pF max

    Level of drive:1.0 μW max


    Outline and Dimensions [unit:mm]
    32.768KHz Crystal Units 2.0x6.0mm DIP:RHTNYU-206
