Features
-Configuration:
SPST Design: Single-Pole, Single-Throw configuration means each switch has a single set of contacts that are either open or closed, providing a basic ON/OFF function for each switch position.
-Number of Positions:
1 to 12 Pins: Available in various configurations ranging from 1 to 12 pins, where each pin corresponds to a switch position. This allows for multiple switch settings in a single component.
-Actuation Method:
Piano Type Actuation: Operates with a piano-style actuator that moves vertically across the switch body, allowing for simultaneous or sequential activation of multiple switches.
-Contact Material:
Metal Contacts: Typically made from materials such as copper alloy or phosphor bronze to ensure good conductivity and durability for reliable switching operations.
Applications
1.Consumer Electronics
2.Telecommunications Equipment
3.Computer and Peripherals
4.Industrial Control Systems
Specifications

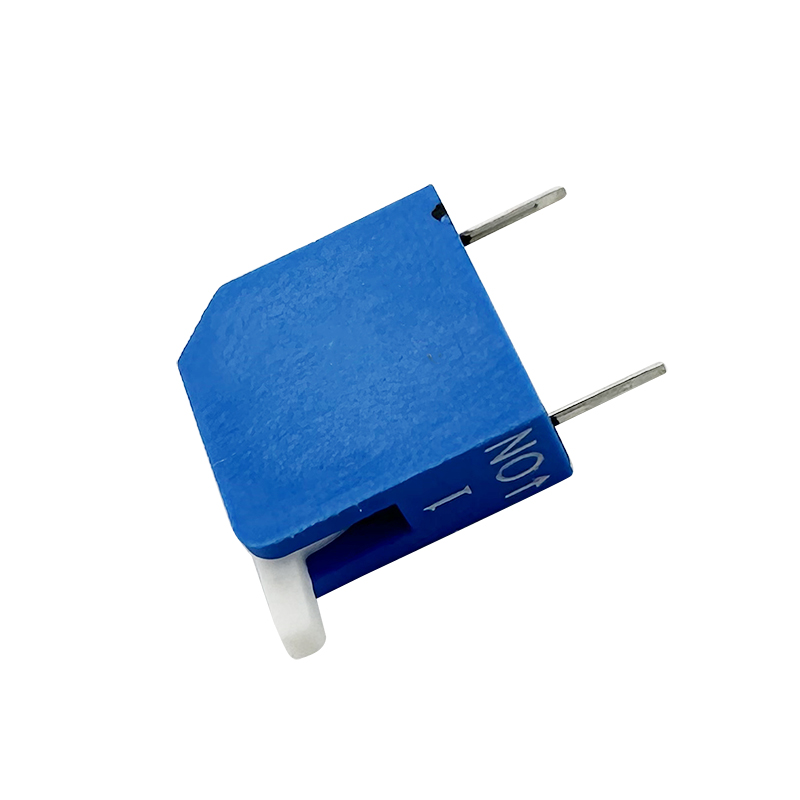

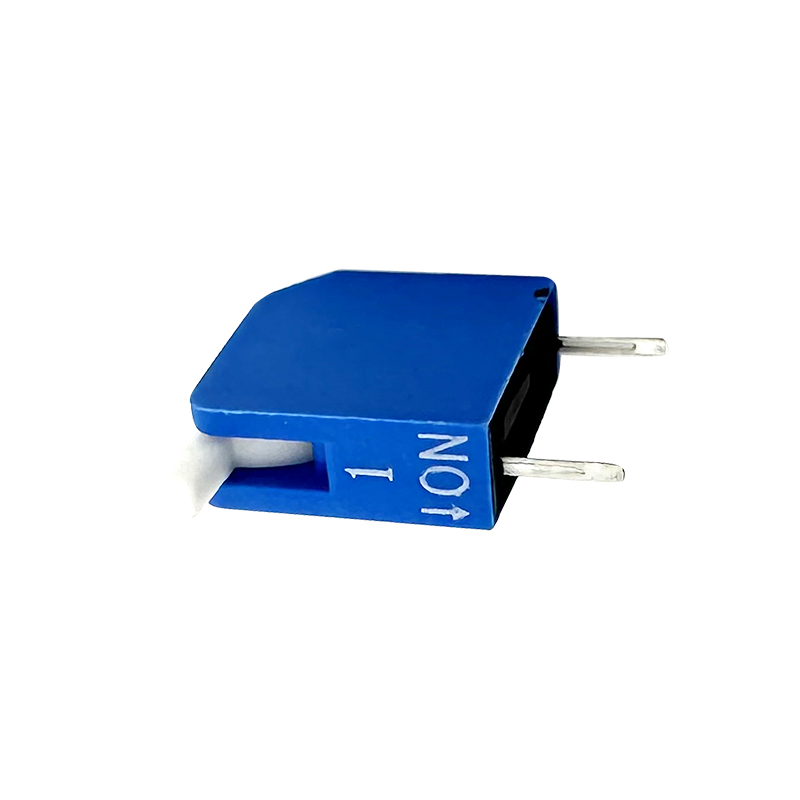

SPST Standary Piano type dip switch 1~12pins
Material:
Cover: PBT plastic (red or blue)
Base: PBT plastic (black)
Operator: POM plastic (white)
Stock: epoxy resin potting
Terminal: tin plated phosphor bronze, contact gold plated 3u"
Sealing tape: polyimide KAPTON
Switching Characteristics:
Switch Capacity: 25mA at 24VDC
Insulation Resistance:100MΩ at 250VDC
Contact Resistance: 50mΩ max.
Insulation strength: 500VAC / 1min
Operation Force : 1000gf max.
Electrical life: 2000 times
Operation Temp:-20ºC~+70ºC
Welding requirements:
Manual welding: 320 degrees C no more than 2 seconds. (30 watt iron max.)
Wave soldering: 260 degrees C no more than 5 seconds, in the welding and cleaning process switch is open state.
Technical Documents
Please contact us for more information.
SPST Standary Piano type dip switch 1~12pins :RHTGYPT
