Features
-Design: They typically have a flat, rectangular actuator (the part you push or toggle) that rocks up and down to make or break electrical contacts.
-Operation: Rocker switches operate with a simple on-off mechanism, where flipping the switch up (on one side of its center position) turns the circuit on, and flipping it down (on the opposite side) turns it off.
-Durability: They are known for their robustness and durability, making them suitable for various applications, including household appliances, automotive controls, and industrial equipment.
-Visibility: Many rocker switches have illuminated indicators, making it easy to see whether the switch is on or off, especially in low-light conditions.
Applications
1.Household Appliances
2.Automotive
3.Industrial Equipment
4.Electronic Devices
Specifications
Rocker Switch
MATERIAL
1.Housing: Nylon 66
2.Rocker: PC & PA66
3.Contacts: Silver Alloy
4.Terminal: Brass Silver Plated
5.Lamp: Neon Lamp,Tungsten Lamp
6.Spring: SWP,SUS
7.Movable Arm: Brass Silver Plated
ELECTRICAL
1.Electrical Rating: 6(4)A 250VAC /10A 125VAC
2.Mechanical life:Over 30000 Cycles
3.Electrical life: Over 10000 Cycles
4.Contact Resistance: ≤50mΩ
5.Insulation Resistance: ≥100MΩ
6.High Voltage Resistance:>1500V 1 min
7.Ambient Temperature: Terminal Side -20ºC~+85ºC;Actuating Side -20ºC~+55ºC
8.Storage Temperature: -30ºC~+80ºC Max
9.Atmospheric Humidity: Max 85%
10.Actuating force: 4~8N(depends on different switch function)
11.Flammability: UL94 V-2
12.Temperature rise at the terminal: Max 30ºC (Ul1054)
13.Solder ability of terminal: Max 350ºC 3S
Technical Documents
Please contact us for more information.

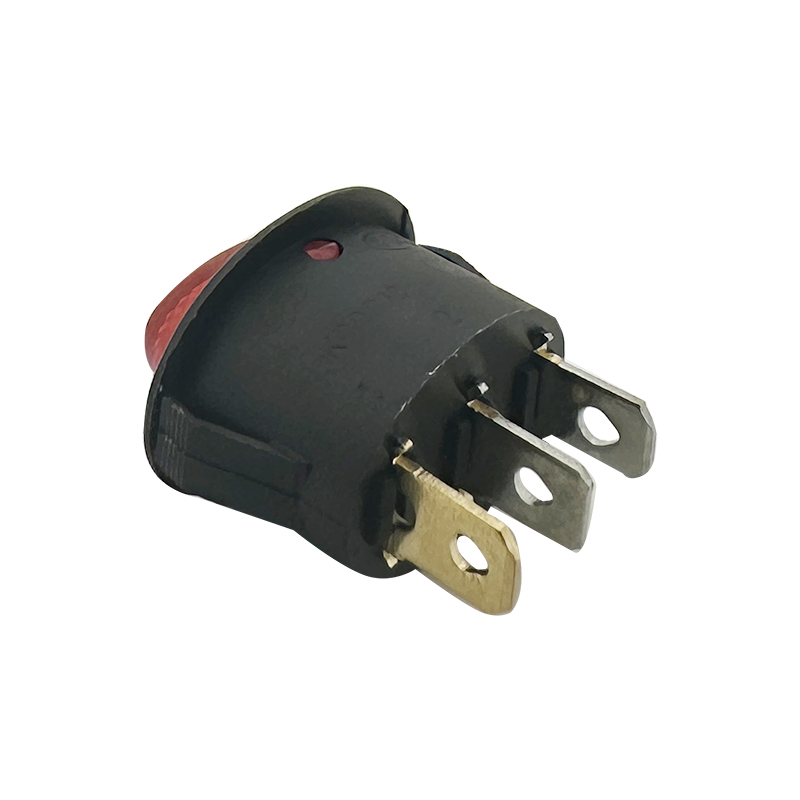

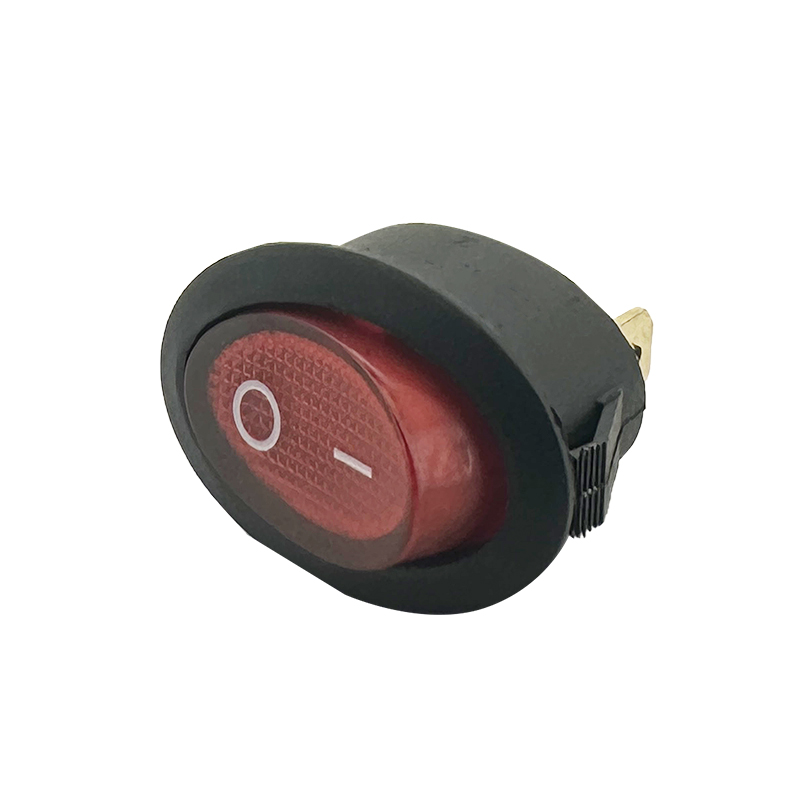

Rocker Switch :RHTGY21
