Features
-Compact SMD Design： Space-saving surface mount package, ideal for compact and lightweight electronic products.
-Self-Drive Circuit： Integrated driving circuit, no external oscillator needed, reducing overall design complexity.
-Stable Sound Output： Provides clear, consistent, and reliable audio signals, ensuring accurate alerts and notifications.
-Low Power Consumption： Designed for energy efficiency, suitable for battery-powered and portable devices.
Applications
1.Industrial Equipment
2.Security Systems
3.Home Appliances
4.Automotive Electronics
Specifications
Rated Voltage 5VDC
Operating Voltage 3~16VDC
Rated Current 10mA Max.
S.P.L.（@10cm） 80dB Min. at 10cm
Resonant Frequency 4.0 ±0.5KHz
Operating Temp -30~+85°C
Weight 2.3g
Technical Documents
Please contact us for more information.

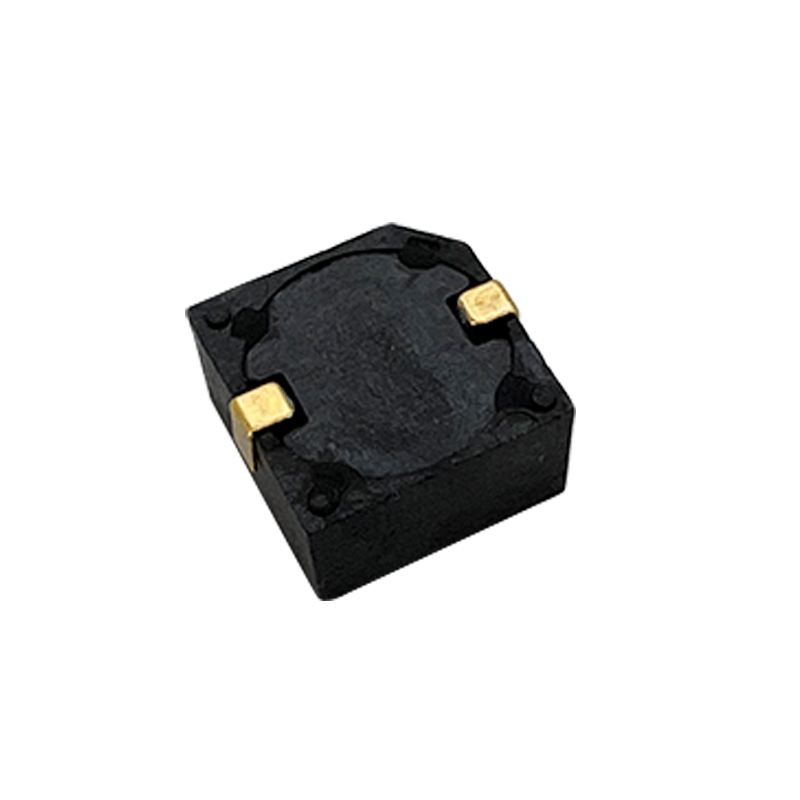

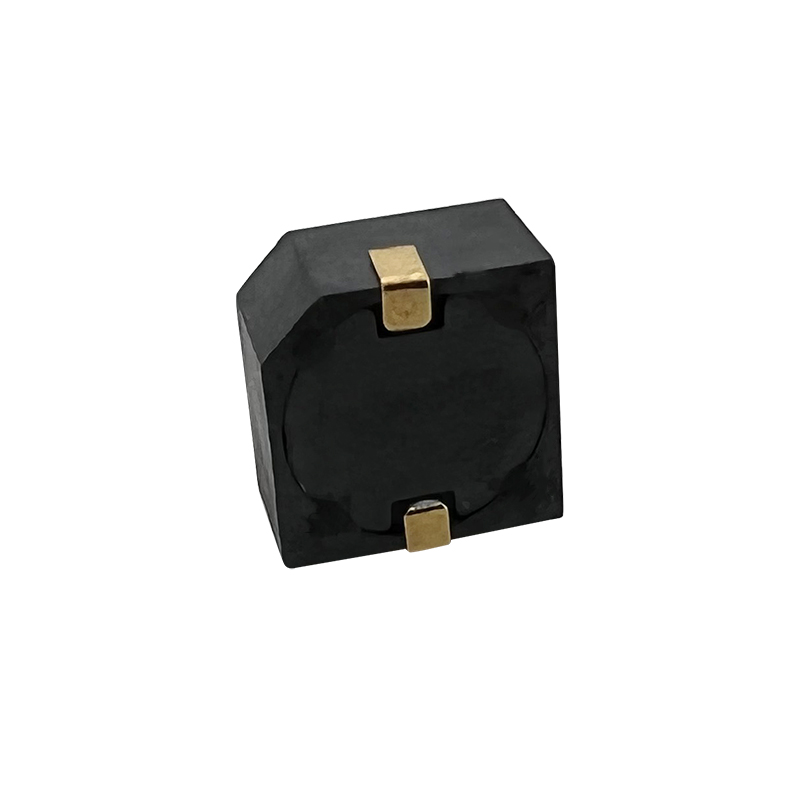

SMD piezo buzzer,Externally driven type:RHTCYMT-15x08B
