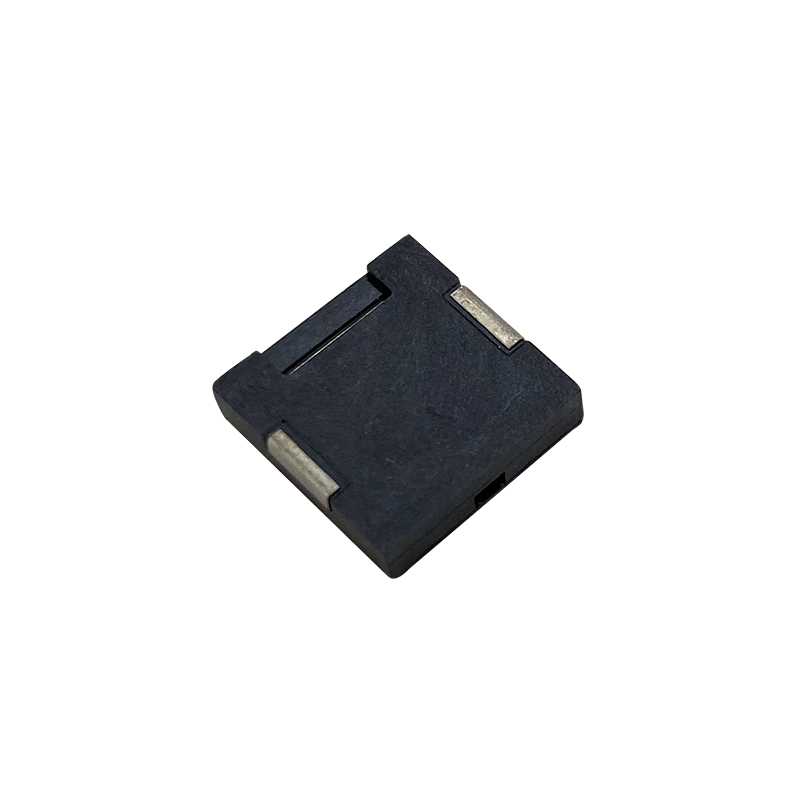

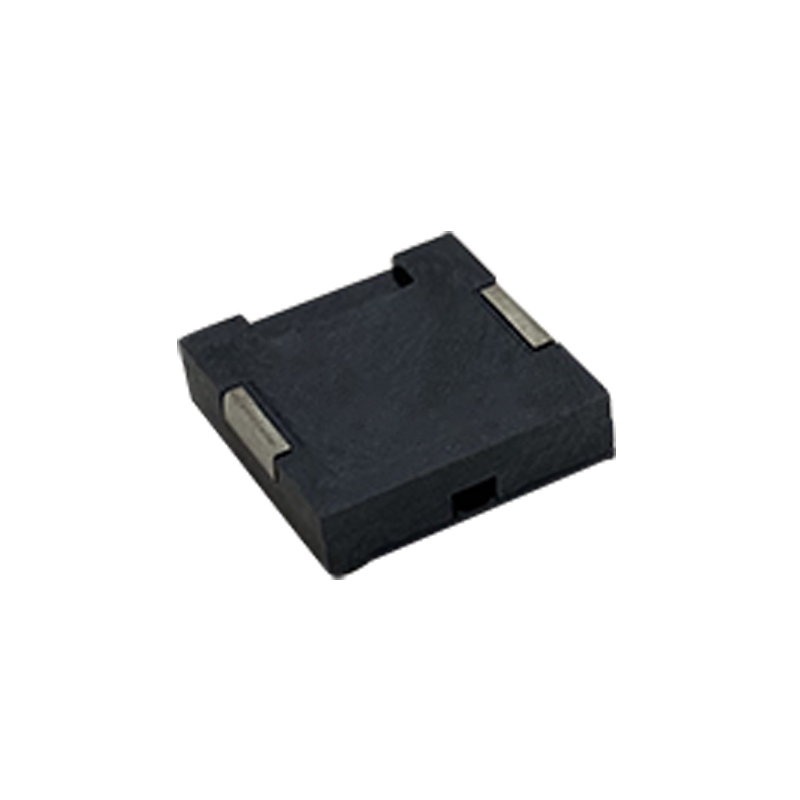

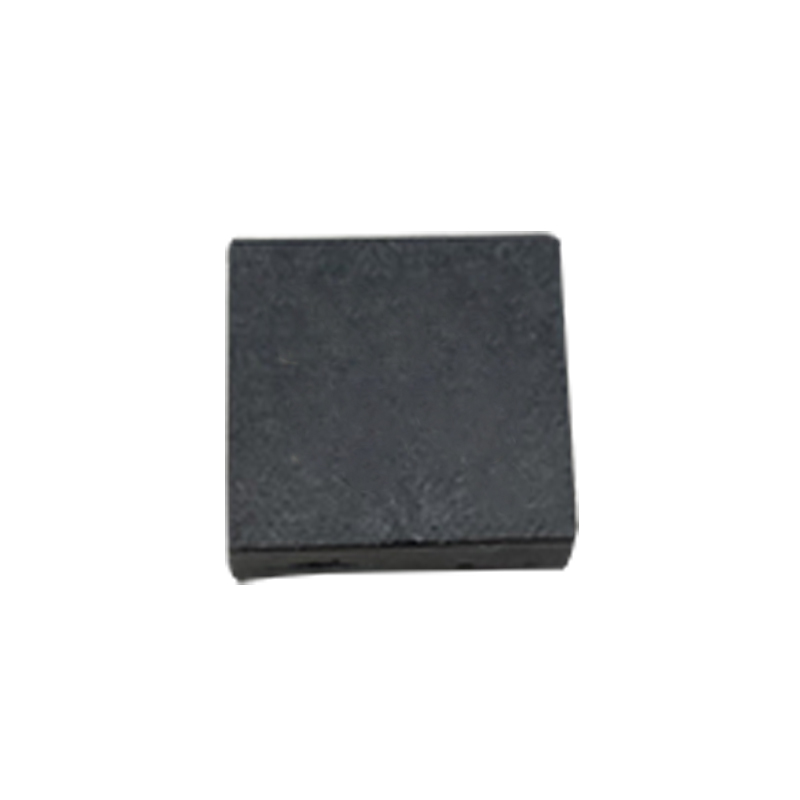

    SMD piezo buzzer,Externally driven type:RHTCYMT-12x03

    Series Part No: RHTCYMT-12x03
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features


    -Low Profile SMD Package：Ultra-compact design allows easy integration into slim and space-limited electronic products.

    -Stable Acoustic Output：Delivers consistent sound signals with excellent frequency response and reliable operation.

    -Easy PCB Assembly：Surface mount structure supports efficient automated production and installation.

    -Wide Operating Compatibility：Suitable for various electronic circuits requiring compact sound indication.



    Applications


    1.Office Equipment

    2.Power Equipment

    3.Instrumentation Equipment

    4.Electronic Control Boards



    Specifications

    1 Rated Voltage                              3 (Vp-p)
    2 Resonance Frequency               4.0±0.5(KHz)
    3 Max Input Voltage                         25(Vp-p)
    4 Capacitance at 120Hz                16000±30%(pF)
    5 *Sound Output at 10cm               ≥75(dB)
    6 Operating Temperature (℃)       -20～+70
    7 Storage Temperature (℃)           -30～+80
    8 *Rated Current                               ≤3(mA)
    9 Weight (g)                                           0.3
    10 Housing Material                            LCP

    Technical Documents

    Please contact us for more information.
