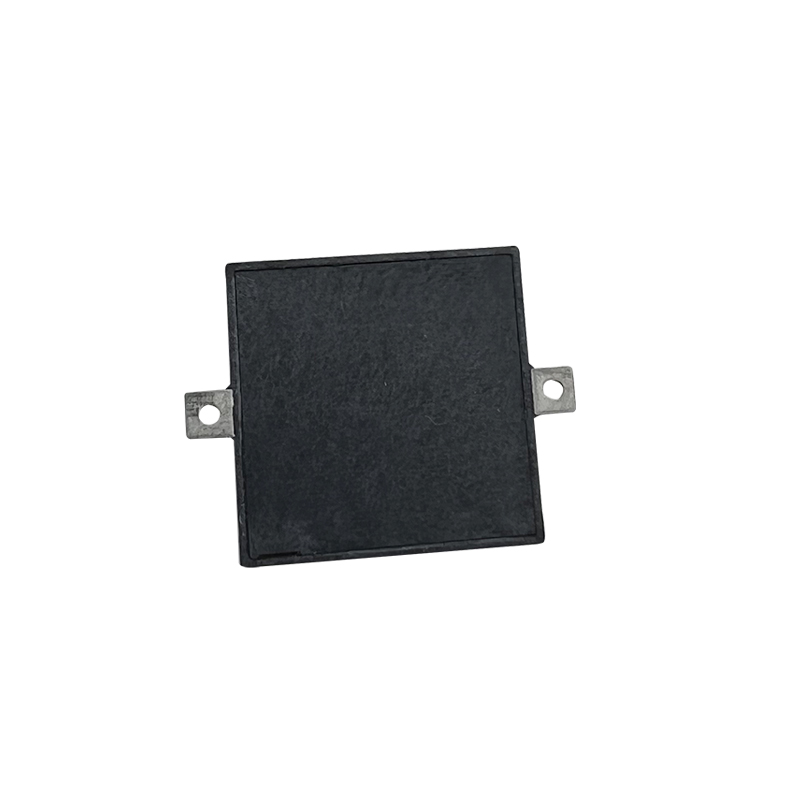

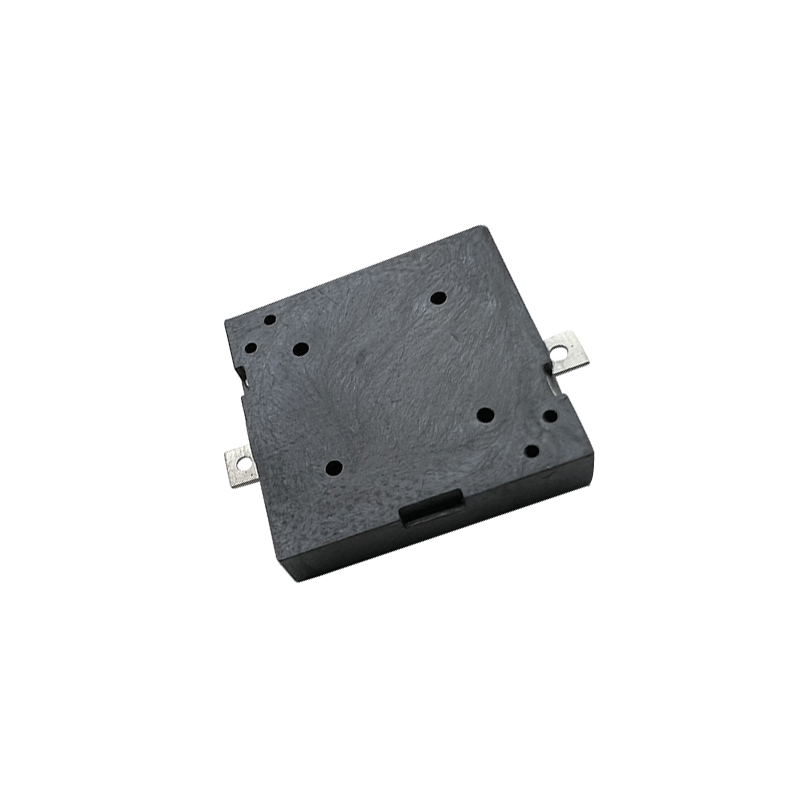

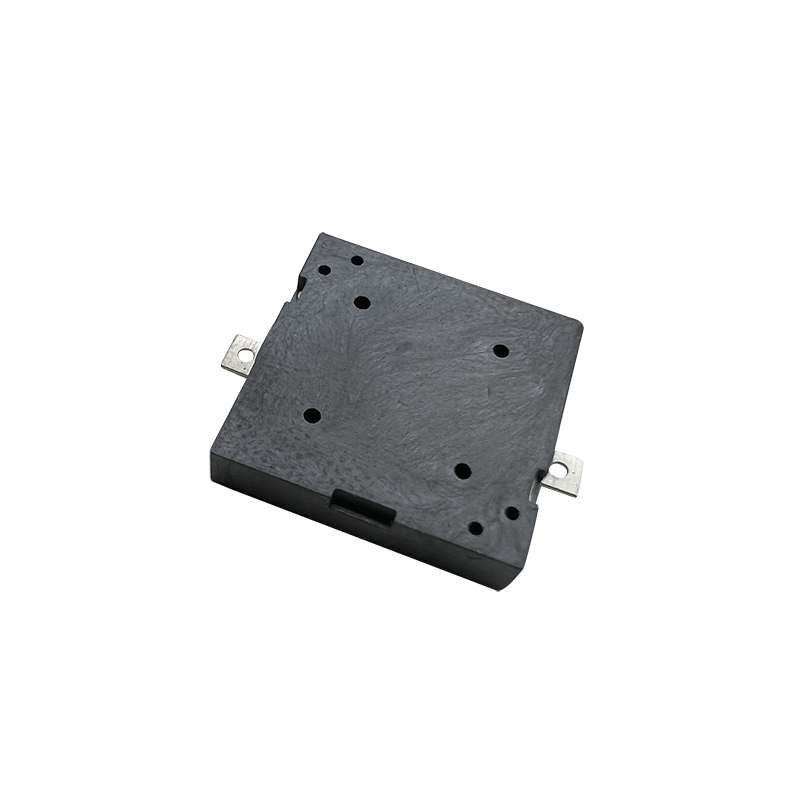

SMD piezo buzzer,Externally driven type:RHTCYMT-13x2.5

Series Part No: RHTCYMT-13x2.5

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Features

-Compact SMD low-profile design, ideal for space-saving and high-density PCB layouts

-Piezoelectric sound generation with clear, stable output and low power consumption

-Reliable performance across wide temperature and voltage ranges

-SMT-compatible construction for automated assembly and high production efficiency

Applications

1.Consumer Electronics

2.Industrial Control

3.Automotive Electronics

4.Security & Alarm Systems

Specifications

Rated Voltage 5Vp-p Operating Voltage 1-25Vp-p Max.Rated Current 3mA Min.S.P.L.(@10cm) MIN. 75dB at Rated Voltage at 10cm Resonant Frequency 4.0±0.5KHz Capacitance at 100Hz 16000±30%pF Operating Temp -20~+70°C Weight 0.5g

Technical Documents

Please contact us for more information.
