SIM card connectors & Micro SIM card connectors & Nano SIM Card Connectors

SIM Card Connectors, Micro SIM Card Connectors and Nano SIM Card Connectors are engineered for compact card interfaces and reliable signal transmission. Their design focuses on contact arrangement, spring characteristics, card positioning, insertion force and wear resistance. Optimized contact structures help maintain stable electrical performance through repeated card insertion, while compact housings support space-efficient integration in communication devices, terminals and embedded systems.

Enlarge

Quick View

SIM Card Connector,PUSH PUSH,6P+2P,H1.85mm,without Post ：RHTAYIM-086

Series Part No:RHTAYIM-086

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-PUSH PUSH Eject Mechanism: Allows smooth and user-friendly SIM card insertion and removal, enhancing overall usability in end devices.
-6P+2P Contact Configuration: Supports standard SIM interface along with optional auxiliary connections for added functionality.
-Ultra Low Profile: With a compact height of only 1.85mm, it is perfect for slim mobile devices, smart wearables, and compact electronic applications.
-Post-free Design: Optimized for modern PCB layouts where a post is not required, offering more design flexibility.

Applications

1.Mobile Phones
2.Smart Wearable Devices
3.IoT Modules and Devices
4.GPS Trackers

Specifications

SIM Card Connector,PUSH PUSH,6P+2P,H1.85mm,without Post
Material:
Insulator:H-Temperature Plastic,UL94V-0.Black.
Contact:Copper Alloy,T=0.15mm
Shell:Stainless Steel,T=0.15mm
Finsh:
Terminal:50u" min Nickel Underplated on Allover,Gold Plating on Contact Arer,80u" min
Tin on Solder Tail.
Shell:50u" Nickel Underplated on Allover,Gold Flash on Solder Latch.
Electrical:
Current Rating:0.5A.
Voltage Rating:5.0 Vrms.
Insulation Resistance:500M Min.At DC 500V DC
Withstanding Voltage:250V ACrms For 1 Minute.
Contact Resistance:100M Max.At 10MA/20mV MAX.
Mating Cycles:5000 Insertions.
Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

SIM Card Connector,PUSH PUSH,6P,H1.85mm,without Post ：RHTAYIM-087

Series Part No:RHTAYIM-087

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-PUSH PUSH Eject Mechanism: This innovative mechanism allows for smooth and effortless SIM card insertion and ejection, enhancing user convenience and minimizing wear on both the connector and the SIM card.
-6P Contact Configuration: The connector features a 6P (6-position) configuration, providing reliable electrical connections and supporting a wide range of applications requiring standard SIM functionality.
-Compact Low Profile Design: With a height of just H1.85mm, this connector is designed for space-constrained devices, making it ideal for modern, slim mobile phones, smart wearables, and other compact electronic devices.
-Post-Free Design: The post-free design ensures flexibility in PCB layout, allowing for easier integration into devices with space limitations and reducing the need for additional components in the assembly process.

Applications

1.Payment Terminals
2.Industrial Control Devices
3.Telematics Systems
4.Smart Home Devices

Specifications

SIM Card Connector,PUSH PUSH,6P,H1.85mm,without Post
Material:
Insulator:H-Temperature Plastic,UL94V-0.Black.
Contact:Copper Alloy,T=0.15mm
Shell:Stainless Steel,T=0.15mm
Finsh:
Terminal:50u" min Nickel Underplated on Allover,Gold Plating on Contact Arer,80u" min
Tin on Solder Tail.
Shell:50u" Nickel Underplated on Allover,Gold Flash on Solder Latch.
Electrical:
Current Rating:0.5A.
Voltage Rating:5.0 Vrms.
Insulation Resistance:500M Min.At DC 500V DC
Withstanding Voltage:250V ACrms For 1 Minute.
Contact Resistance:100M Max.At 10MA/20mV MAX.
Mating Cycles:5000 Insertions.
Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

SIM Card Connector;PUSH PUSH,6P,H1.85mm ：RHTAYIM-106

Series Part No:RHTAYIM-106

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Reliable Electrical Performance: Ensures a stable connection for high-quality performance in mobile communication and data transfer.
-Durability: Designed to withstand thousands of insertion and ejection cycles, ensuring longevity.
-RoHS Compliant: Made with lead-free and environmentally safe materials, meeting international standards.
-Versatile Application: Suitable for mobile phones, wearables, IoT devices, GPS modules, and more.

Applications

1.Payment Terminals
2.Industrial Control Devices
3.Telematics Systems
4.Smart Home Devices

Specifications

SIM Card Connector,PUSH PUSH,6P,H1.85mm,with Post
Housing:Hi-Temp Plastic,UL94V-0.Rated.
Contact:Copper Alloy.
Shell:SUS.
Finish:
Gold plated on conatct area,Tin plated on solder tails.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

SIM Card Connector,PUSH PUSH,6P+1P,H1.9mm,with Post：RHTAYIM-107

Series Part No:RHTAYIM-107

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-H1.9mm Height: Compact design with a low profile height of H1.9mm, ideal for space-constrained applications.
-With Post Design: The post feature enhances the stability and durability of the connector during soldering and ensures reliable connections.
-Surface Mount Technology (SMT): Compatible with automated assembly processes for cost-efficient high-volume production.
-Durable Construction: Built to withstand numerous insertion and ejection cycles, providing long-lasting performance.

Applications

1.Smart Wearable Devices
2.IoT Modules
3.GPS Trackers
4.Tablets
Specifications

SIM Card Connector,PUSH PUSH,6P+1P,H1.9mm,with Post
Material:
Housing:Hi-Temp Plastic,UL94V-0.Rated.
Contact:Copper Alloy.
Shell:Copper Alloy/Steel.
Plating:
Contact Area:Gold flash.
Solder area:80u" Min,Matte tin alloy plated.
Under plate:30u" min,Nickel.
Shell:30u" Min,Nickel plated overall
Solder area:Gole flash.
Electrical:
Current Rating:0.5A.
Withstanding Voltage:AC500V r.m.s.
Insulation Resistance:1000MΩMin,At DC 500V
Contact Resistance:100mΩ Max.
Mating Cycles:3000 Insertions.
Operating Temperature:-40%%DC TO +85%%DC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

SIM Card Connector,PUSH PUSH,6P+1P,H1.9mm,with Post：RHTAYIM-108

Series Part No:RHTAYIM-108

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Durable Construction: Built to withstand numerous insertion and ejection cycles, providing long-lasting performance.
-Reliable Electrical Contact: Ensures stable and secure electrical connections for consistent performance in mobile communication and data transmission.
-RoHS Compliant: Manufactured with lead-free, environmentally friendly materials, meeting global RoHS standards.
-Versatile Applications: Ideal for use in mobile phones, smart wearables, IoT devices, GPS trackers, and other compact electronics.

Applications

1.Payment Terminals
2.Industrial Control Devices
3.Telematics Systems
4.Smart Home Devices

Specifications

SIM Card Connector,PUSH PUSH,8P+1P,H1.9mm,with Post
Material:
Housing:Hi-Temp Plastic,UL94V-0.Rated.
Contact:Copper Alloy.
Shell:Copper Alloy.
Plating:
Contact Area:Gold flash.
Solder area:80u" Min,Matte tin alloy plated.
Under plate:30u" min,Nickel.
Shell:30u" Min,Nickel plated overall
Solder area:Gole flash.
Electrical:
Current Rating:0.5A.
Withstanding Voltage:AC500V r.m.s.
Insulation Resistance:1000MΩMin,At DC 500V
Contact Resistance:100mΩ Max.
Mating Cycles:3000 Insertions.
Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

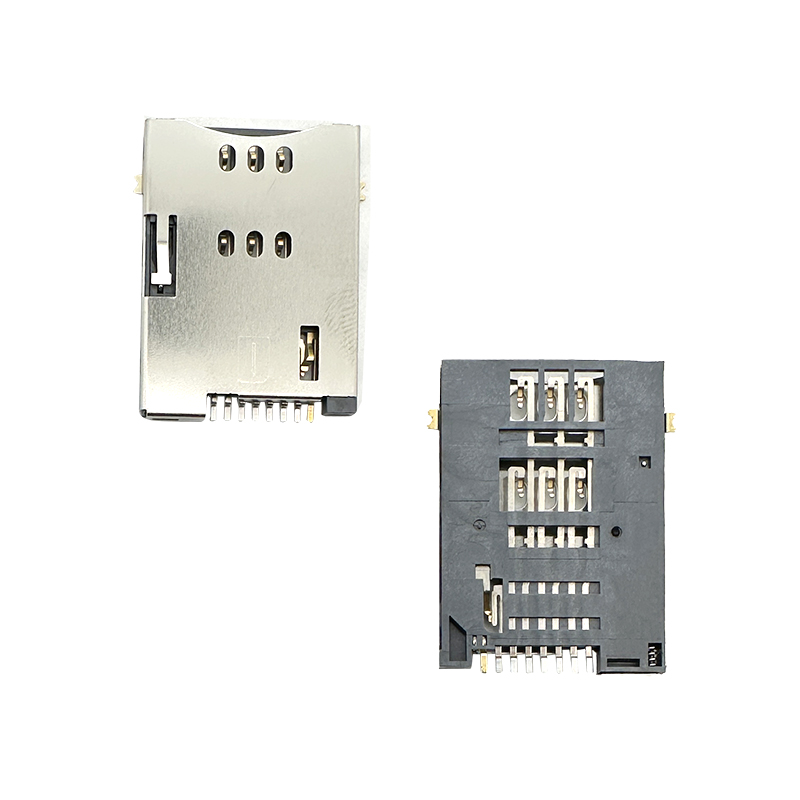

SIM Card Connector PUSH PUSH 6P 2P H1.80mm With post or Without post :RHTAYIM-110

Series Part No:RHTAYIM-110

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Height (H1.80mm):Specifies the vertical clearance required above the PCB surface, ensuring proper spacing for components and allowing for efficient airflow within the device.

-Durability:Engineered to withstand multiple insertion and removal cycles, ensuring long-term reliability and performance.

-Material Quality:Typically made from durable materials such as thermoplastics, with gold-plated contacts for excellent conductivity, durability, and corrosion resistance.

-Ease of Integration:Designed for easy integration into PCB layouts, often using surface-mount technology (SMT) for efficient assembly.

-PUSH-PUSH Mechanism: The PUSH-PUSH design allows for smooth, easy SIM card insertion and removal. Simply pushing the card into the slot triggers a spring-loaded eject mechanism for simple retrieval, offering convenience and secure retention.

Applications

1.Smartphones and Mobile Devices:

2.Tablets and Laptops:

3.IoT Devices

4.Wearable Technology

Specifications

SIM Card Connector;PUSH PUSH,6P+2P,H1.80mm With post or Without post.

Material:

Housing Material: LCP UL94V-0

Contact Material: Tin-Bronze

Package: Tape and Reel Package

Electrical Characteristics:

Voltage rating: 100V AC

Current Rating: 0.5A Max

Withstand voltage: 250V AC/1Minute

Insulation resistance: ≥1000ΜΩ

Contact resistance: ≤30mΩ

Life: ＞5000 Cycles

Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

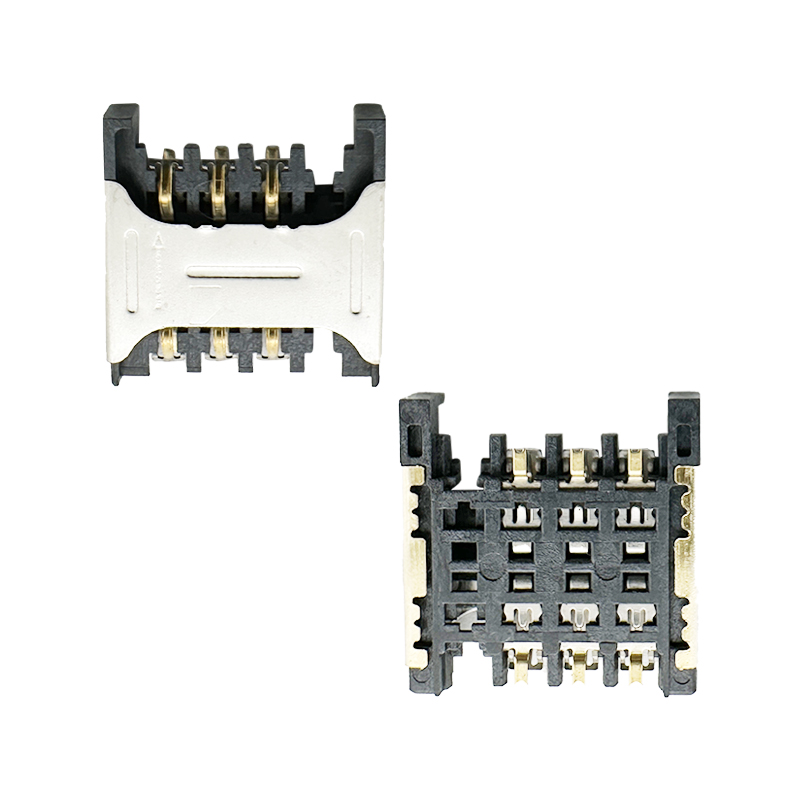

Micro SIM Card Connector 6P,PUSH PULL,Micro SIM Slot H2.4mm :RHTAYIM-044-6P

Series Part No:RHTAYIM-044-6P

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: Micro SIM card connector designed for SIM (Subscriber Identity Module) cards used in mobile devices.

-Number of Pins: Contains 6 pins for electrical connections between the SIM card and the device. These pins facilitate data transfer, communication, and power supply between the SIM card and the mobile device.

-Height: Designed with a height of 2.4mm, which is relatively compact and suitable for mobile devices where space is limited but not as low-profile as smaller variants.

-Push-Pull Mechanism: Utilizes a push-pull mechanism for easy insertion and removal of the SIM card. This mechanism allows users to push the card in to insert it and pull it out to remove it, providing a secure and reliable method for managing SIM cards.

-Secure Card Retention: The push-pull mechanism ensures that the SIM card is securely held in place, reducing the risk of accidental disconnection or ejection during use.

Applications

1.M2M Applications

2.Embedded Systems

3.Portable Wi-Fi Hotspots

4.Security Systems

Specifications

Micro SIM Card Connector 6P,PUSH PULL,H2.4mm

Material:

Base:Hi-Temp Thermoplastic,UL94V-0.Black.

Data Contact:Copper Alloy,Gold Plated.

Shell:Stainless Steel,Gold Plated.

Electrical:

Contact Resistance:50mΩ typical,100Ω Max.

Insulation Resistance:>1000MΩ/500V DC.

3.Solderability

Vapor phase:215ºC.30sec.Max.

IR feflow:250ºC.5sec.Max.

Manual soldering:370ºC.3sec.Max.

Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

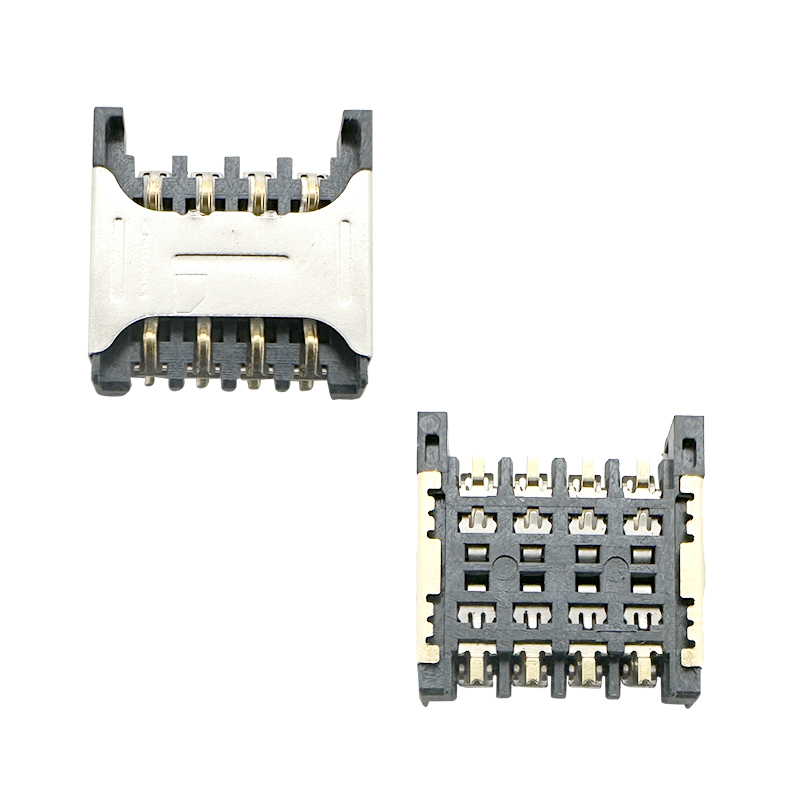

Micro SIM Card Connector 8P,PUSH PULL,H2.4mm:RHTAYIM-044-8P

Series Part No:RHTAYIM-044-8P

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Versatile Application: Suitable for various mobile communication devices, IoT devices, and other applications that require a reliable and compact SIM card interface.

-8-Pin Configuration: Offers 8 contact points for reliable and stable connections with SIM cards in mobile and electronic devices.

-Height: Designed with a height of 2.4mm, which is relatively compact and suitable for mobile devices where space is limited but not as low-profile as smaller variants.

-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability in mobile applications.

-Electrical Performance: Provides secure electrical contacts with low contact resistance, ensuring reliable data transmission and communication between the Micro SIM card and the device.

Applications

1.Automotive Applications

2.Telecommunication Equipment

3.Portable Wi-Fi Hotspots

4.Security and Alarm Systems

5.Smartphones

Specifications

Micro SIM Card Connector 8P,PUSH PULL,H2.4mm

Material:

Base:Hi-Temp Thermoplastic,UL94V-0.Black.

Data Contact:Copper Alloy,Gold Plated.

Shell:Stainless Steel,Gold Plated.

Electrical:

Contact Resistance:50mΩ typical,100Ω Max.

Insulation Resistance:>1000MΩ/500V DC.

3.Solderability

Vapor phase:215ºC.30sec.Max.

IR feflow:250ºC.5sec.Max.

Manual soldering:370ºC.3sec.Max.

Operating Temperature: -45ºC~+105ºC

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6 7 8 next page
