Features
-Height (H1.80mm):Specifies the vertical clearance required above the PCB surface, ensuring proper spacing for components and allowing for efficient airflow within the device.
-Durability:Engineered to withstand multiple insertion and removal cycles, ensuring long-term reliability and performance.
-Material Quality:Typically made from durable materials such as thermoplastics, with gold-plated contacts for excellent conductivity, durability, and corrosion resistance.
-Ease of Integration:Designed for easy integration into PCB layouts, often using surface-mount technology (SMT) for efficient assembly.
-PUSH-PUSH Mechanism: The PUSH-PUSH design allows for smooth, easy SIM card insertion and removal. Simply pushing the card into the slot triggers a spring-loaded eject mechanism for simple retrieval, offering convenience and secure retention.
Applications
1.Smartphones and Mobile Devices:
2.Tablets and Laptops:
3.IoT Devices
4.Wearable Technology
Specifications
SIM Card Connector;PUSH PUSH,6P+2P,H1.80mm With post or Without post.
Material:
Housing Material: LCP UL94V-0
Contact Material: Tin-Bronze
Package: Tape and Reel Package
Electrical Characteristics:
Voltage rating: 100V AC
Current Rating: 0.5A Max
Withstand voltage: 250V AC/1Minute
Insulation resistance: ≥1000ΜΩ
Contact resistance: ≤30mΩ
Life: ＞5000 Cycles
Operating Temperature: -45ºC~+85ºC
Technical Documents
Please contact us for more information.
SIM card connectors & Micro SIM card connectors & Nano SIM Card is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

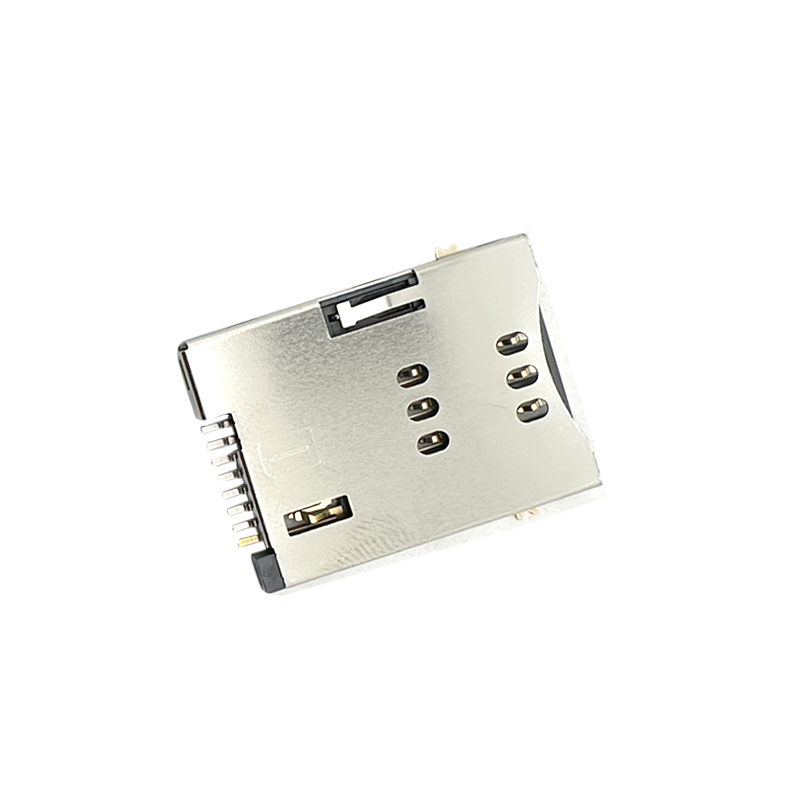

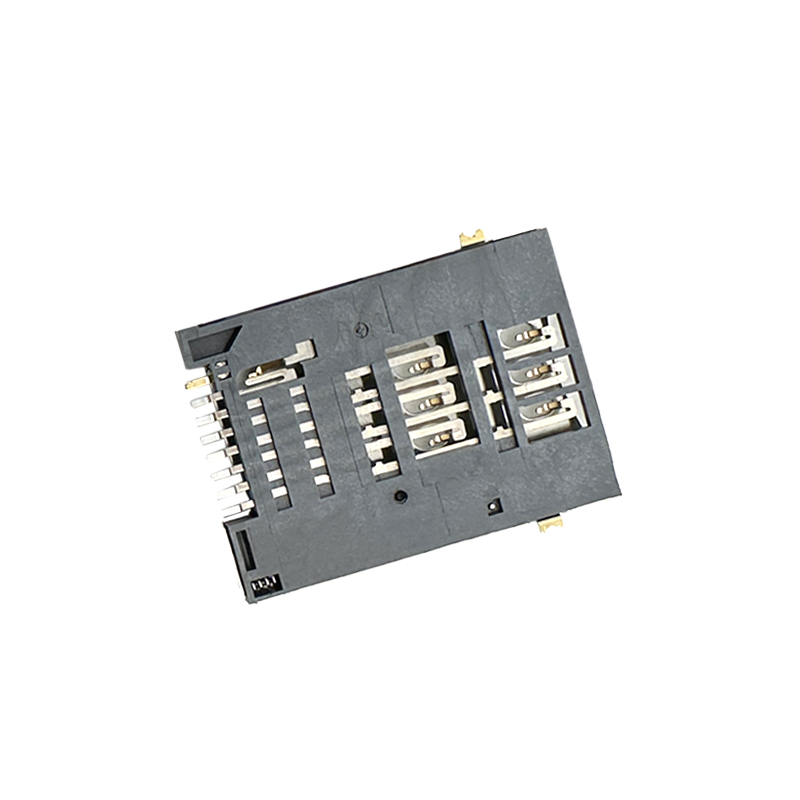

SIM Card Connector PUSH PUSH 6P 2P H1.80mm With post or Without post :RHTAYIM-110
