    Micro SIM Card Connectors: MUP-C790 Alternative RE-C-SIM-044-6P

    Series Part No: RE-C-SIM-044-6P
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N

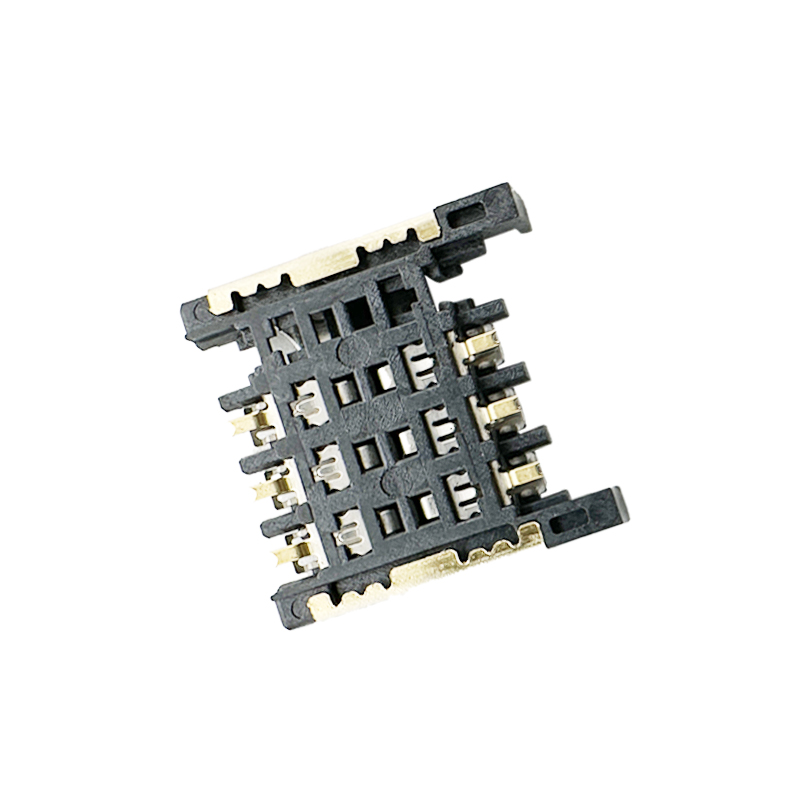

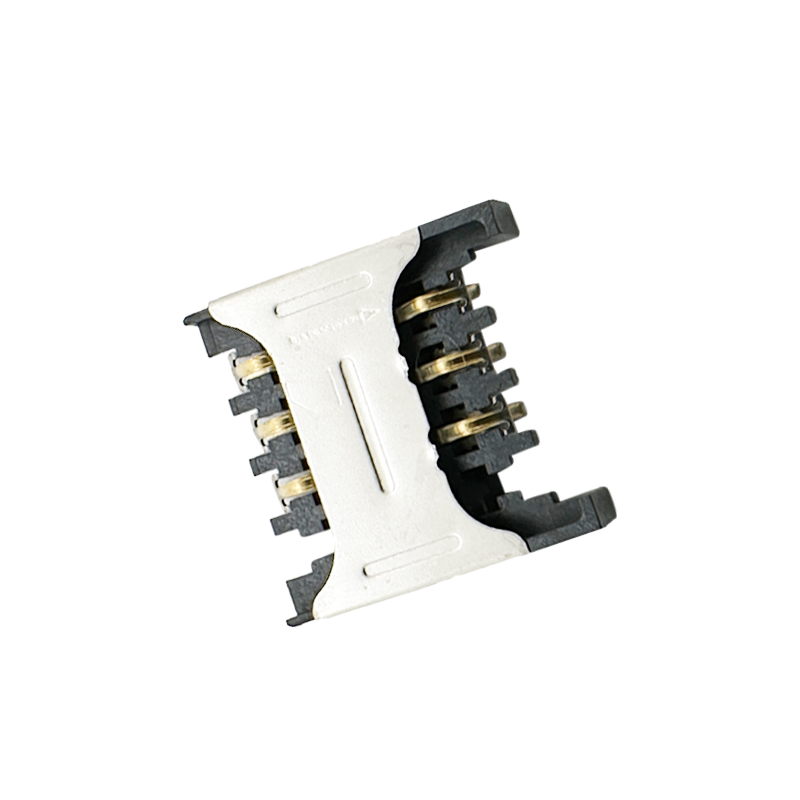

    Micro SIM Card Connector 6P,PUSH PULL,H2.4mm

    MUP-C790 Alternative RE-C-SIM-044-6P

    Material:
    Base:Hi-Temp Thermoplastic,UL94V-0.Black.
    Data Contact:Copper Alloy,Gold Plated.
    Shell:Stainless Steel,Gold Plated.
    Electrical:
    Contact Resistance:50mΩ typical,100Ω Max.
    Insulation Resistance:>1000MΩ/500V DC.
    3.Solderability
    Vapor phase:215ºC.30sec.Max.
    IR feflow:250ºC.5sec.Max.
    Manual soldering:370ºC.3sec.Max.
    Operating Temperature: -45ºC~+105ºC
