Features
-Durability: These connectors are designed for repeated insertion and removal cycles, ensuring durability and reliability over time. They are built to withstand the mechanical stresses associated with regular use in portable electronic devices.
-Compatibility: Mini USB connectors comply with USB standards and are compatible with USB 2.0 specifications for data transfer rates and power delivery.
-Mounting Style: The connector is designed for through-hole mounting, which is suitable for applications where a strong mechanical connection to the PCB is required.
-Materials: The connector body is typically made from durable materials such as plastic or sometimes metal, depending on the application's requirements for mechanical strength and electrical insulation.
Applications
1.Consumer Electronics
2.DIY Electronics Projects
3.Prototype and Development
4.Specialized Equipment
Specifications
Material
Housing:Hing Temperature Thermoplastic,UL94V-0 LCP,Black.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Piated Gold In Mating Area;Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.0A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:300 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.0kgf Max.
Unmated Force:0.7kgf Min.
Terminal Retenion:0.5
Technical Documents
Please contact us for more information.
Mini USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Mini USB connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

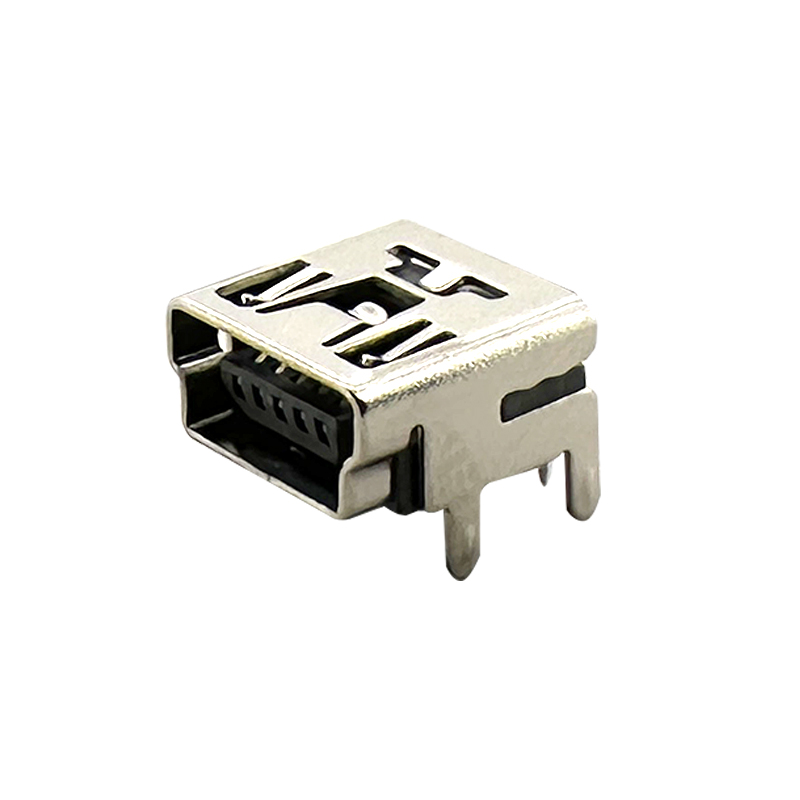

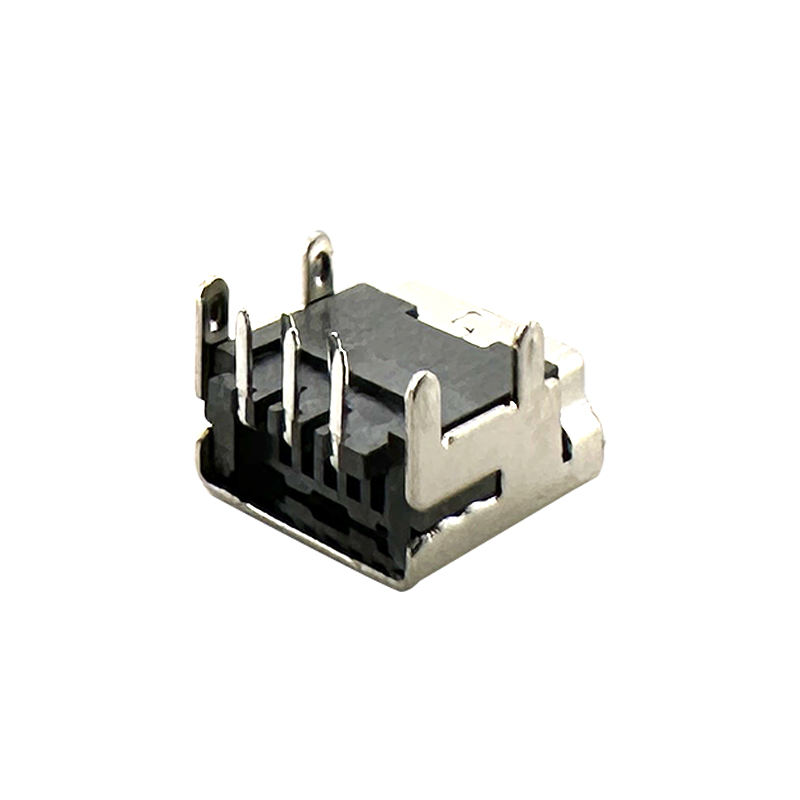

5P B type R/A dip 90 Mini USB connector socket :RHTAY29-5FQ
