Mini USB connectors

Mini USB Connectors are engineered for compact device interfaces requiring dependable data and power transmission. Their design focuses on connector size, contact arrangement, mating force, retention strength and housing durability. Optimized terminal structure supports accurate alignment and repeated plugging cycles, helping maintain stable electrical contact while enabling space-efficient integration in portable electronics, control devices and embedded systems.

Enlarge

Quick View

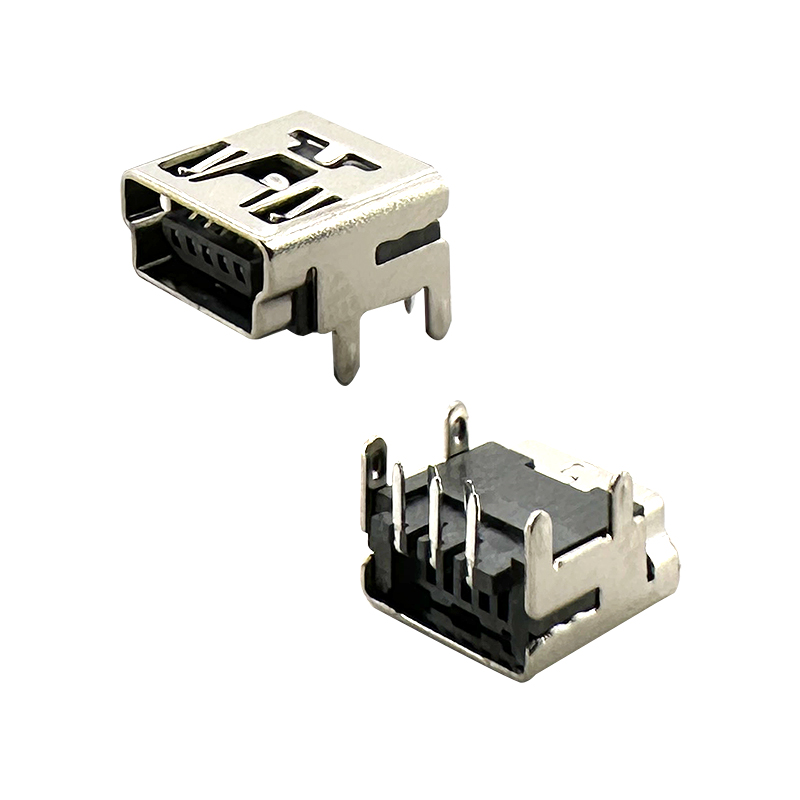

5P B type R/A dip 90 Mini USB connector socket:RHTAY29-5FA

Series Part No:RHTAY29-5FA

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-DIP (Dual In-line Package): This indicates that the connector has through-hole mounting pins, which are inserted into holes on a PCB and soldered to create a stable electrical and mechanical connection. DIP connectors are typically used in applications where a more secure mounting method is required.

-90 Degrees: The "90" in "dip 90" refers to the angle of the connector's pins relative to the body of the connector. In this case, it indicates that the pins are angled at 90 degrees, allowing for right-angle mounting on the PCB.

-Number of Pins (5P): This specifies that the connector has 5 pins. Mini USB connectors typically have 5 pins arranged in a specific configuration: one for VCC (power), one for ground, and three for data (D+, D-, and sometimes ID pin for OTG functionality).

-Durability: These connectors are designed for repeated insertion and removal cycles, ensuring durability and reliability over time. They are built to withstand the mechanical stresses associated with regular use in portable electronic devices.

Applications

1.Consumer Electronics

2.DIY Electronics Projects

3.Prototype and Development

4.Specialized Equipment

Specifications

Material

Housing:Hing Temperature Thermoplastic,

UL94V-0 LCP,Black.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680.

Finish:

Contact:Piated Gold In Mating Area;Tin On Solder Tolls.

Shell:Nickel Plating.

Electrical:

Current Rating:1.0A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:50mΩ Max.

Dielectric Withstanding Voltage:300 V AC AT Sea Level.

Insulation Resistance:100MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.0kgf Max.

Unmated Force:0.7kgf Min.

Terminal Retenion:0.5kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

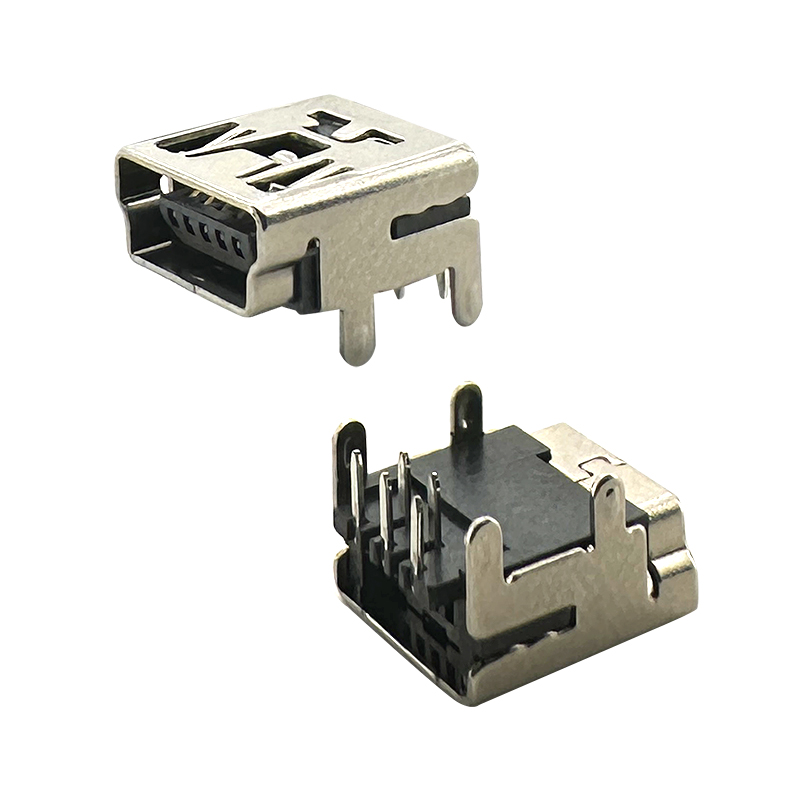

5P B type R/A dip 90 Mini USB connector socket :RHTAY29-5FQ

Series Part No:RHTAY29-5FQ

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Durability: These connectors are designed for repeated insertion and removal cycles, ensuring durability and reliability over time. They are built to withstand the mechanical stresses associated with regular use in portable electronic devices.

-Compatibility: Mini USB connectors comply with USB standards and are compatible with USB 2.0 specifications for data transfer rates and power delivery.

-Mounting Style: The connector is designed for through-hole mounting, which is suitable for applications where a strong mechanical connection to the PCB is required.

-Materials: The connector body is typically made from durable materials such as plastic or sometimes metal, depending on the application's requirements for mechanical strength and electrical insulation.

Applications

1.Consumer Electronics

2.DIY Electronics Projects

3.Prototype and Development

4.Specialized Equipment

Specifications
Material

Housing:Hing Temperature Thermoplastic,UL94V-0 LCP,Black.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680/SPCC.

Finish:

Contact:Piated Gold In Mating Area;Tin On Solder Talls.

Shell:Nickel Plating.

Electrical:

Current Rating:1.0A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:50mΩ Max.

Dielectric Withstanding Voltage:300 V AC AT Sea Level.

Insulation Resistance:100MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.0kgf Max.

Unmated Force:0.7kgf Min.

Terminal Retenion:0.5

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

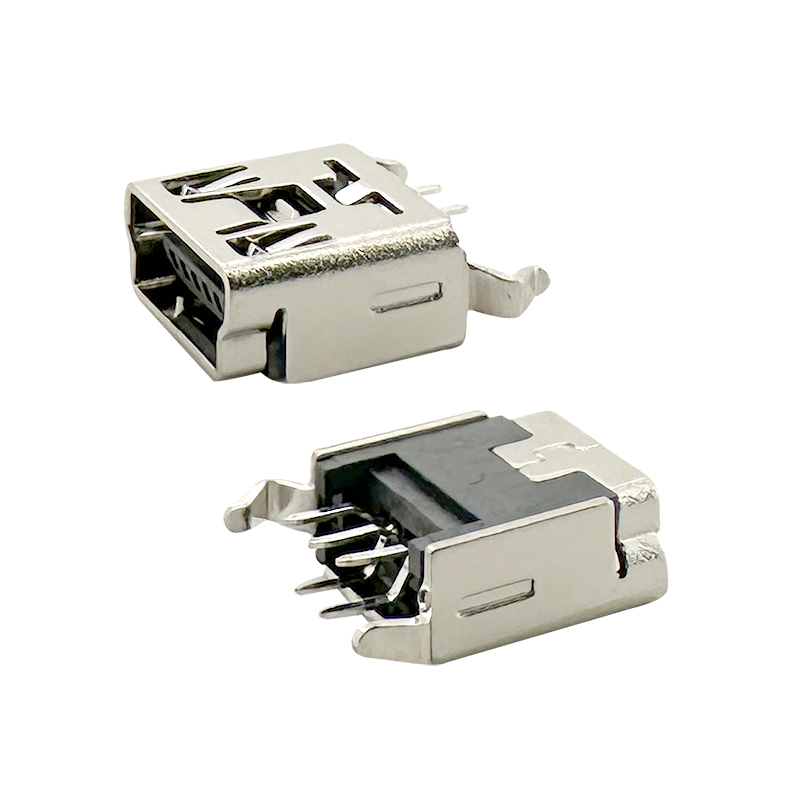

5P B type R/A dip 180 Mini USB connector socket:RHTAY29-5FC

Series Part No:RHTAY29-5FC

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Number of Pins (5P): This specifies that the connector has 5 pins. Mini USB connectors typically have 5 pins arranged in a specific configuration: one for VCC (power), one for ground, and three for data (D+, D-, and sometimes an ID pin for OTG functionality).

-Application: Mini USB connectors are commonly used in various consumer electronics, such as digital cameras, MP3 players, mobile phones, and other portable devices. They provide a reliable interface for data transfer and charging.

-Durability: These connectors are designed for repeated insertion and removal cycles, ensuring durability and reliability over time. They are built to withstand the mechanical stresses associated with regular use in portable electronic devices.

-Compatibility: Mini USB connectors comply with USB standards and are compatible with USB 2.0 specifications for data transfer rates and power delivery.

Applications

1.Portable Electronics

2.Mobile Phones and Tablets

3.Peripheral Devices

4.Automotive Electronics

Specifications

Material

Housing:Hing Temperature Thermoplastic,UL94V-0 PBT/LCP,Black/White.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680/SPCC.

Finish:

Contact:Piated Gold In Mating Area;Tin On Solder Talls.

Shell:Nickel Plating.

Electrical:

Current Rating:1.5A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:30mΩ Max.

Dielectric Withstanding Voltage:500 V AC AT Sea Level.

Insulation Resistance:1000MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.75kgf Max.

Unmated Force:1.02kgf Min.

Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

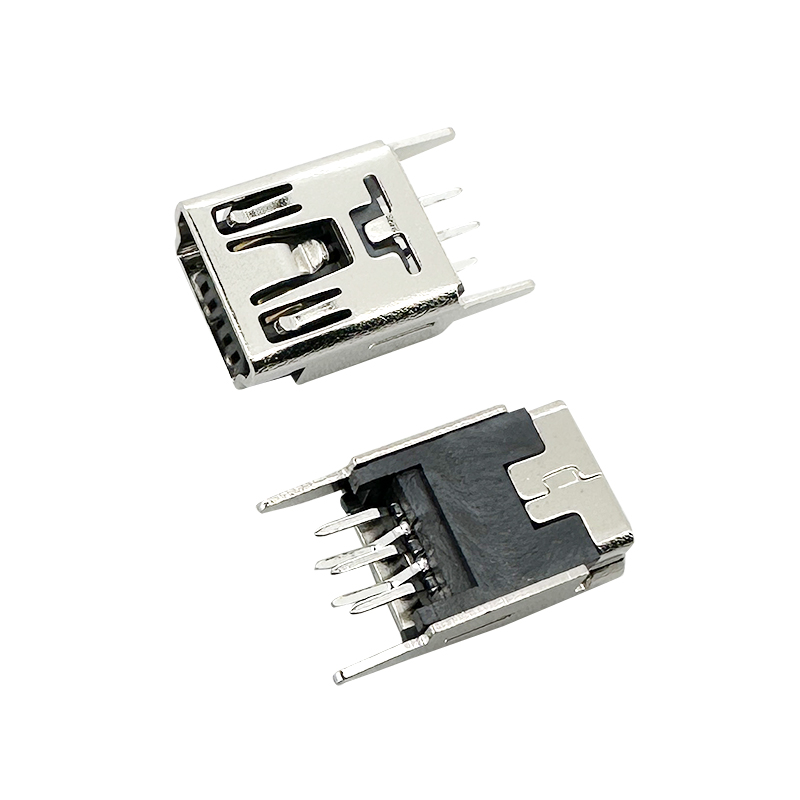

5P B type R/A dip 180 Mini USB connector socket :RHTAY29-5FK

Series Part No:RHTAY29-5FK

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Type: Mini USB connectors are smaller in size compared to standard USB connectors and are commonly used in various electronic devices for data transfer and power supply.

-Connector Orientation: "R/A" stands for Right Angle, indicating that the connector is designed to be mounted on a PCB with the USB port facing at a right angle to the board surface. This orientation helps save space and can be more convenient in certain device designs.

-DIP (Dual In-line Package): This indicates that the connector has through-hole mounting pins, which are inserted into holes on a PCB and soldered to create a stable electrical and mechanical connection. DIP connectors are typically used in applications where a secure mounting method is required.

-180 Degrees: The "180" in "dip 180" refers to the angle of the connector's pins relative to the body of the connector. In this case, it indicates that the pins are angled at 180 degrees, allowing for straight-through mounting on the PCB.

Applications

1.Industrial Applications

2.Consumer Electronics

3.DIY Electronics Projects

4.Medical Devices

Specifications

Material

Housing:Hing Temperature Thermoplastic,

UL94V-0 PBT/LCP,Black/White.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680/SPCC.

Finish:

Contact:Piated Gold In Mating Area;Tin On Solder Talls.

Shell:Nickel Plating.

Electrical:

Current Rating:1.5A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:30mΩ Max.

Dielectric Withstanding Voltage:500 V AC AT Sea Level.

Insulation Resistance:1000MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.75kgf Max.

Unmated Force:1.02kgf Min.

Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

5P B type R/A SMD Mini USB connector socket: RHTAY29-5FB

Series Part No:RHTAY29-5FB

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact Design: Small form factor suitable for space-constrained applications such as handheld and portable devices.
-5-Pin Configuration: Supports USB 2.0 standard for reliable power and data transmission.
-Right Angle (R/A) Mounting: Ideal for edge-mount PCB designs, providing a low-profile connection.
-SMD Type (Surface Mount Device): Simplifies automated manufacturing processes and ensures strong PCB retention.

Applications

1.Consumer Electronics
2.Mobile Devices
3.Computer Peripherals
4.Communication Equipment

Specifications

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 LCP,Black.
Contact:Copper Alloy C2680.
Shell:steel
Finish:
Contact:Piated Gold In Mating Area;
Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.0A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:300 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.0kgf Max.
Unmated Force:0.7kgf Min.
Terminal Retenion:0.5kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

5P B type R/A SMD Mini USB connector socket:RHTAY29-5FD

Series Part No:RHTAY29-5FD

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Connector Orientation: The "B type" designation typically refers to the shape or configuration of the Mini USB connector, which can vary slightly in dimensions and pin arrangement compared to other types like A type. The exact pin configuration can vary, so it's essential to consult specific datasheets for details.

-Number of Pins (5P): This specifies that the connector has 5 pins. Mini USB connectors typically have 5 pins arranged in a specific configuration: one for VCC (power), one for ground, and three for data (D+, D-, and sometimes an ID pin for OTG functionality).

-Application: Mini USB connectors are commonly used in various consumer electronics, such as digital cameras, MP3 players, mobile phones, and other portable devices. They provide a reliable interface for data transfer and charging.

-Durability: These connectors are designed for repeated insertion and removal cycles, ensuring durability and reliability over time. They are built to withstand the mechanical stresses associated with regular use in portable electronic devices.

Applications

1.Industrial Equipment

2.Portable Consumer Electronics

3.Automotive Electronics

4.Wearable Technology

Specifications

Material

Housing:Hing Temperature Thermoplastic,

UL94V-0 LCP,Black.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680.

Finish:

Contact:Piated Gold In Mating Area;Tin On Solder Talls.

Shell:Nickel Plating.

Electrical:

Current Rating:1.0A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:50mΩ Max.

Dielectric Withstanding Voltage:300 V AC AT Sea Level.

Insulation Resistance:100MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.0kgf Max.

Unmated Force:0.7kgf Min.

Terminal Retenion:0.5kgf Min.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

5P B type R/A SMD Mini USB connector socket : RHTAY29-5FN

Series Part No:RHTAY29-5FN

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-SMD Type (Surface Mount Device): Simplifies automated manufacturing processes and ensures strong PCB retention.
-Durable Construction: High-quality materials ensure excellent mechanical strength and long insertion lifespan.
-Secure Connection: Precision-engineered contacts offer stable and secure connectivity.
-Wide Compatibility: Commonly used in digital cameras, MP3 players, mobile phones, and other consumer electronics.

Applications

1Communication Equipment
2.Automotive Electronics
3.Industrial Control Systems
4.Medical Devices

Specifications

Material
Housing:Hing Temperature Thermoplastic,UL94V-0 LCP,Black.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Piated Gold In Mating Area;Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.0A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:300 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.0kgf Max.
Unmated Force:0.7kgf Min.
Terminal Retenion:0.5

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

5P B type R/A SMD Mini USB connector socket mid mount :RHTAY29-5FE

Series Part No:RHTAY29-5FE

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Durability: These connectors are designed for repeated insertion and removal cycles, ensuring durability and reliability over time. They are built to withstand the mechanical stresses associated with regular use in portable electronic devices.

-Compatibility: Mini USB connectors comply with USB standards and are compatible with USB 2.0 specifications for data transfer rates and power delivery.

-Materials: The connector body is typically made from durable materials such as plastic or sometimes metal, depending on the application's requirements for mechanical strength and electrical insulation.

-Space Efficiency: The right-angle orientation (R/A) and mid-mount design (SMD) make these connectors ideal for applications where space-saving on the PCB is crucial. They allow for a low-profile design while maintaining reliable connectivity.

Applications

1.Industrial Equipment

2.Consumer Electronics

3.DIY Electronics Projects

4.Prototype and Development

Specifications

Material

Housing:Hing Temperature Thermoplastic,UL94V-0 PBT/LCP,Black/White.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680/SPCC.

Finish:

Contact:Piated Gold In Mating Area;Tin On Solder Talls.

Shell:Nickel Plating.

Electrical:

Current Rating:1.5A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:30mΩ Max.

Dielectric Withstanding Voltage:500 V AC AT Sea Level.

Insulation Resistance:1000MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.75kgf Max.

Unmated Force:1.02kgf Min.

Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.

X

X

1 2 next page
