USB 3.1 type C connectors :RE-C-5470

Series Part No: RE-C-5470

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

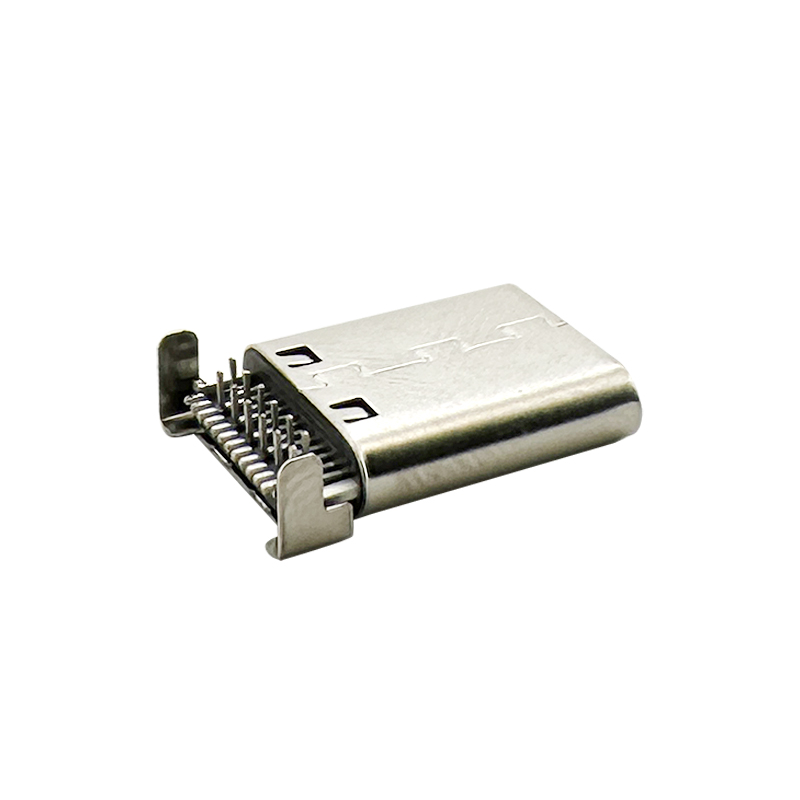

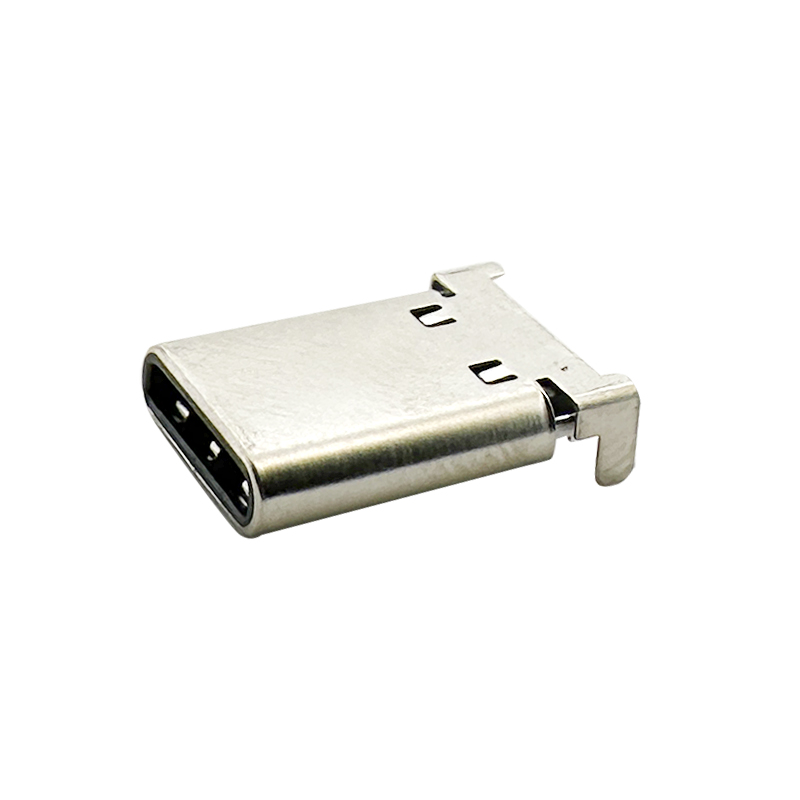

24P Vertical SMD L=10.2mm USB 3.1 type C connector male plug
Electrical
Current Rating:3.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 6N~20N
Durability:10000 Cycles
