Features
-Size and Dimensions:Length of 7.9mm refers to the overall length of the connector body. This compact size is suitable for applications where space-saving is critical, such as in slim electronic devices and portable gadgets.
-Surface Mount Design (SMD):Designed for direct mounting onto the surface of a printed circuit board (PCB), eliminating the need for through-holes and allowing for automated assembly processes.
SMD design enhances PCB layout flexibility and enables high-density mounting of components.
-Material and Construction:Typically made from materials such as durable thermoplastics for the housing and metal alloys for the contacts, ensuring mechanical strength, durability, and reliable electrical performance.
Contacts are often gold-plated to enhance conductivity, reduce signal loss, and withstand repeated mating cycles.
-Reversible Design:USB Type C connectors feature a reversible design, allowing users to insert the plug in either orientation (no upside-down), enhancing user convenience and reducing wear and tear on the connector and devices.
Applications
1.Consumer Electronics
2.Automotive Applications
3.Industrial and Embedded Systems
4.Audio Equipment
Specifications

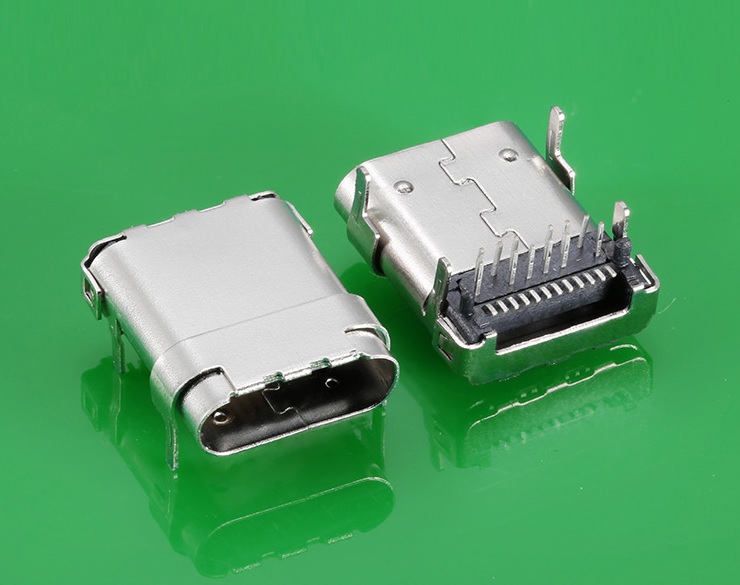

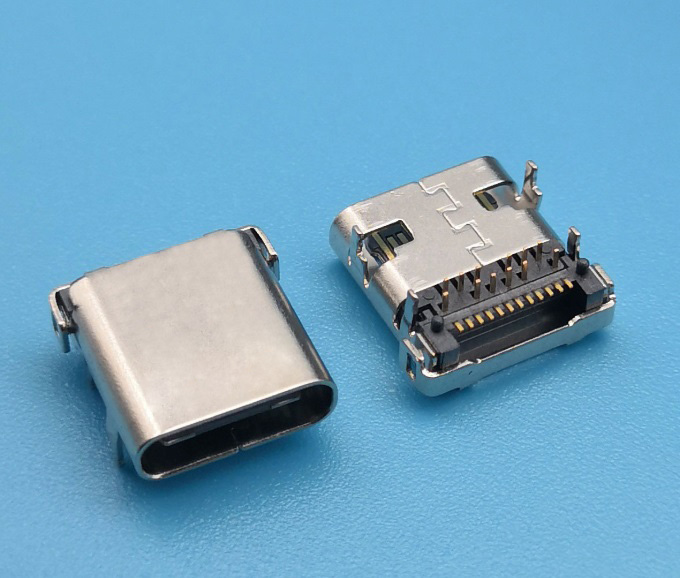

24P SMD L=7.9mm without plastic post USB 3.1 type C connector female socket
Electrical
Current Rating: 1.5A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles
Technical Documents
Please contact us for more information.
