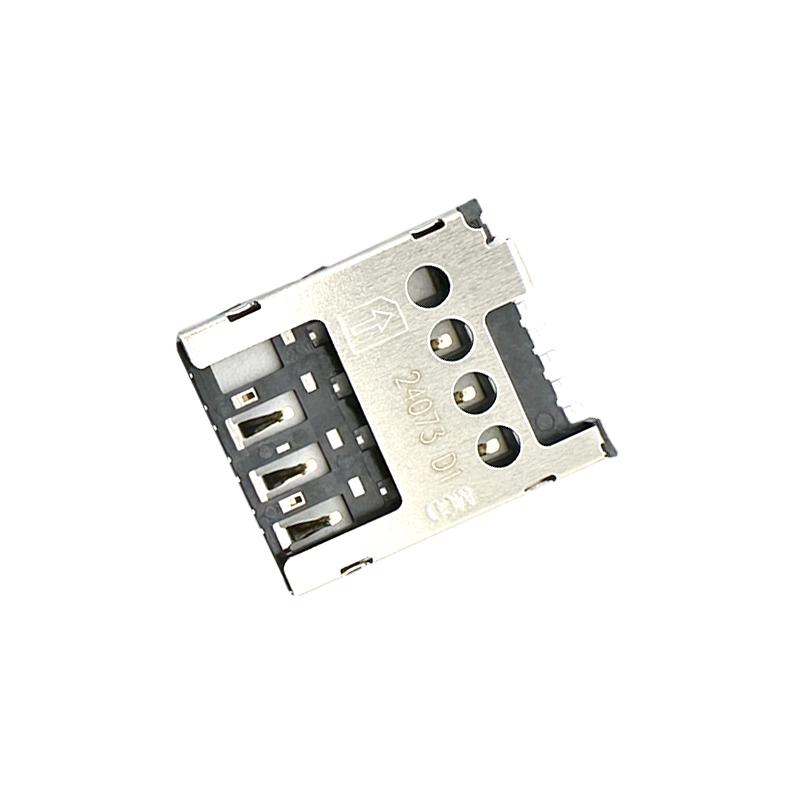

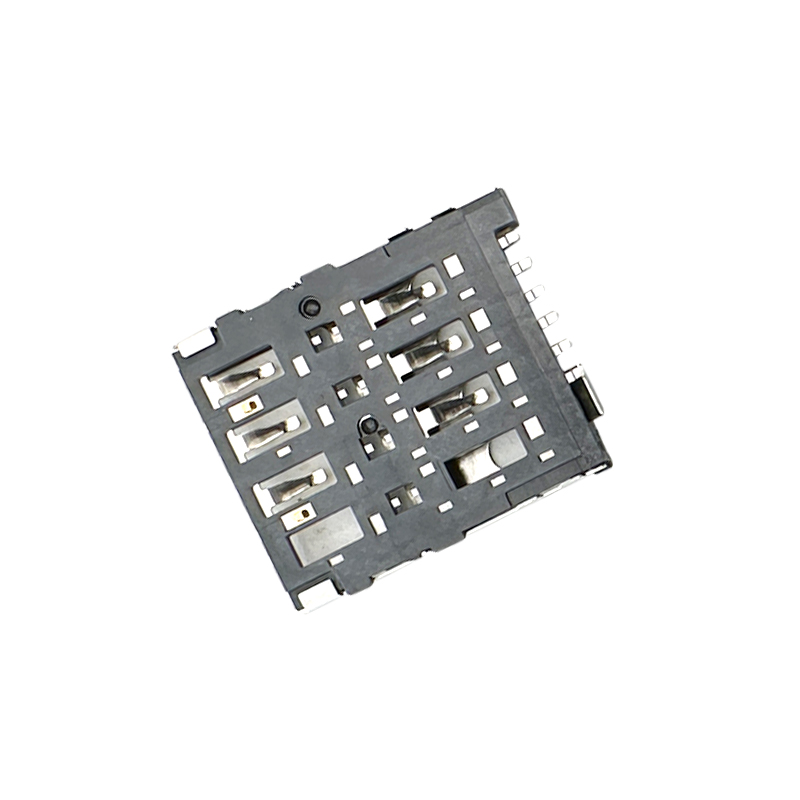

Micro SIM Card Connector,6P,H1.45mm
Material:
Insulator:Hi-Temperature Plastic,UL94V-0.Black.
Terminal:Copper Alloy,50u" min Nickel underplated on allover,gole plated allover.
Shell:Stainless Steel,50u" Nickel underplated on allover,gole flash on solder latch.
Electrical:
Current Rating:0.5 A
Voltage Rating:5.0 V
Insulation Resistance:500MΩ Min./500V DC
Withstanding Voltage:250V AC For 1 minute.
Contact Resistance:100mΩ Max.
Mating Cycles:5000 Insertions.
Operating Temperature: -45ºC~+85ºC
SIM card connectors & Micro SIM card connectors & Nano SIM Card is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of SIM card connectors & Micro SIM card connectors & Nano SIM Card .
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
SIM card connectors & Micro SIM card connectors & Nano SIM Card Connectors : RE-C-SIM-046-6P-R
