Features
-Dual Pin Configuration: Supports both 6-pin and 8-pin SIM card configurations, offering versatile application compatibility.
-Hinged Design: Equipped with a hinged cover for easy opening and secure closure, providing convenience during installation and maintenance.
-Ultra-Low Profile: Slim 2.5mm height, ideal for devices with limited space, such as handheld electronics.
-Durable Contact Mechanism: High-quality contact design ensures reliable connectivity and consistent signal integrity.
-Easy Card Insertion and Removal: The hinged type allows smooth insertion and removal of SIM cards, reducing potential damage to the card.
-Enhanced Card Retention: Hinged cover design securely holds the SIM card in place, preventing disconnection or accidental ejection.
-High Durability: Made from robust materials to withstand frequent usage and environmental stress.
Applications
1.Mobile Phones and Smartphones
2.Tablets and Mobile Internet Devices
3.Portable Wi-Fi Hotspots and Modems
4.IoT (Internet of Things) Devices
5.Security Systems
Specifications

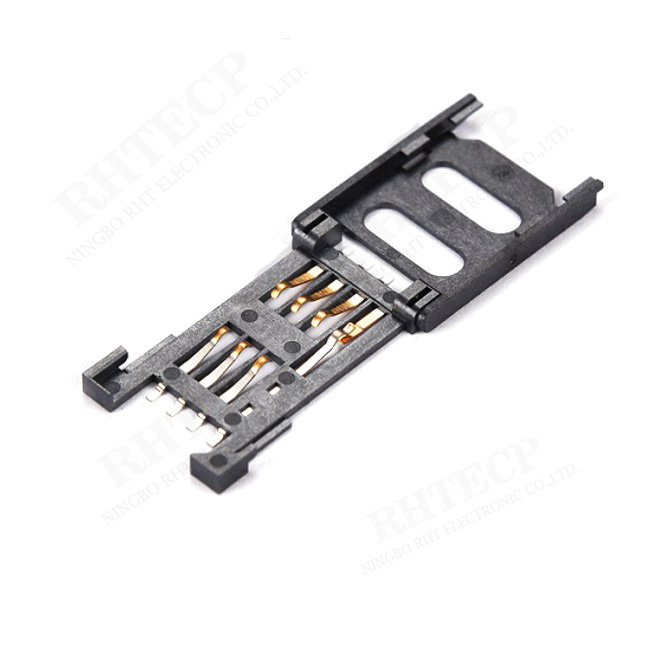

Hinged SIM Card Socket 6P/8P Hinged type,H2.5mm
Material:
Insulator body:LCP. Color:Black
Contact:Phosphor Bronze
Plating:
Finsh:Tin Gold or Duplex plated.
Standard:Gold flash 3u" all over Nickel
Electrical:
Current Rating:0.5A.
Dielectric Withstanding Voltage:500V AC
Insulation Resistance:1000MΩ Min
Contact Resistance:30mΩ Max.
Life: 10000 Cycles
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
