    SIM card connectors & Micro SIM card connectors & Nano SIM Card Connectors : RE-C-SIM-030A

    Series Part No: RE-C-SIM-030A
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N

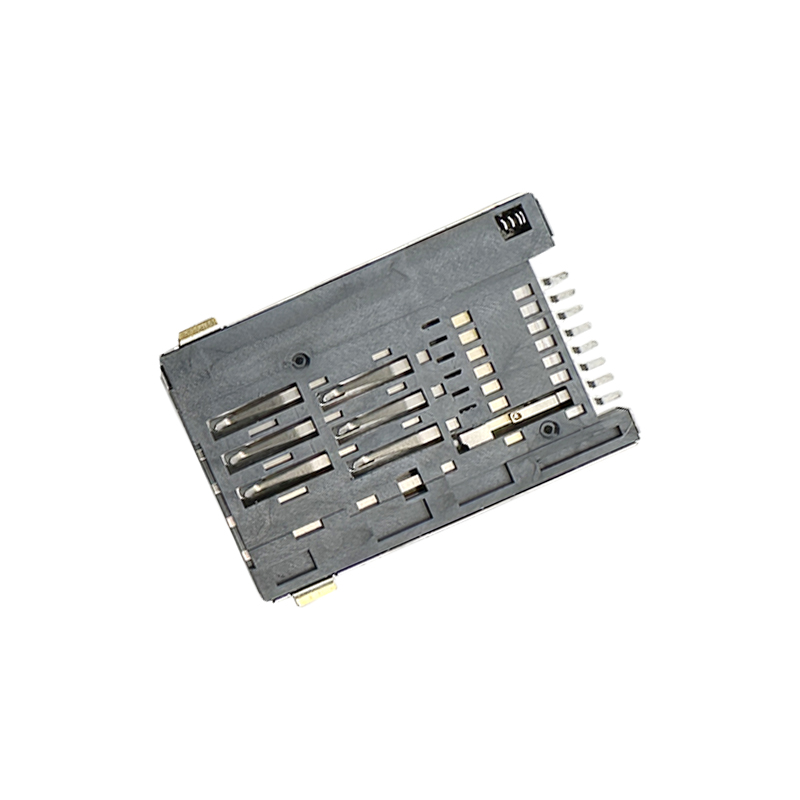

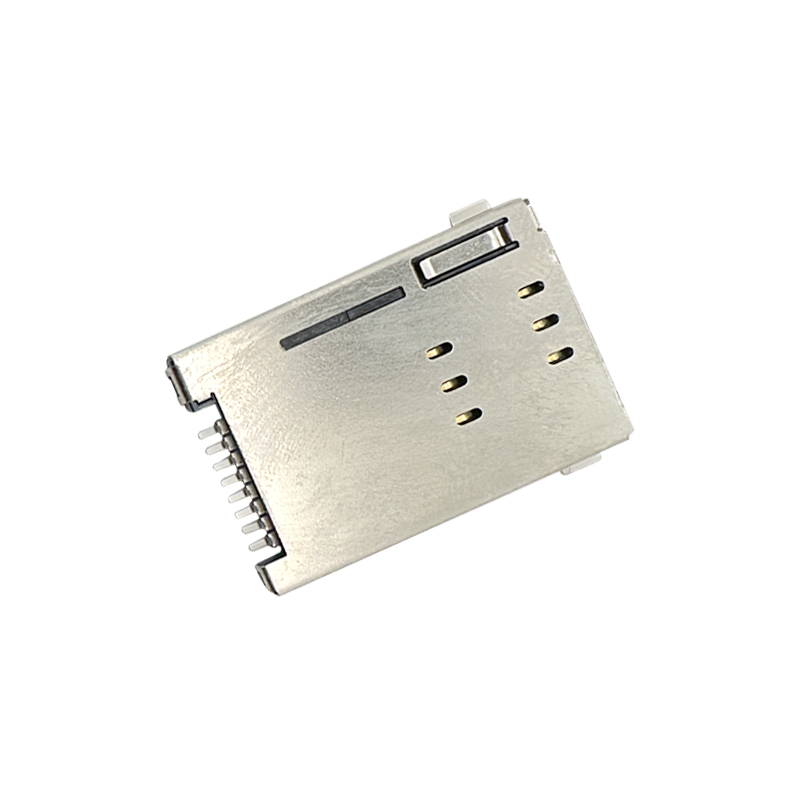

    SIM Card Connector,PUSH PUSH,6P+2P,H2.25mm,without Post

    Material:
    Housing:Hi-Temp Plastic,UL94V-0.Rated.
    Contact:Copper Alloy.
    Shell:Stainless Steel.SUS 301,T=0.20mm.

    Plating:
    Contact area:G/F Plated over 30u" Nickel
    Solder area:80u" Tin Plated over 30u" Nickel.Under plate:30u" Min Nickel.
    Shell:30u" Min,Nickel Plated Over All,Solder Area:Gold Flash.

    Electrical:
    Current Rating:0.5 A
    Dielectric Withstanding Voltage:250V AC/DC.
    Insulation Resistance:500MΩ Min.
    Contact Resistance:100mΩ Max.
    Mating Cycles:5000 Insertions.
    Operating Temperature: -45ºC~+85ºC
