SIM Card Connectors, Micro SIM Card Connectors and Nano SIM Card Connectors are engineered for compact card interfaces and reliable signal transmission. Their design focuses on contact arrangement, spring characteristics, card positioning, insertion force and wear resistance. Optimized contact structures help maintain stable electrical performance through repeated card insertion, while compact housings support space-efficient integration in communication devices, terminals and embedded systems.

Enlarge

Quick View

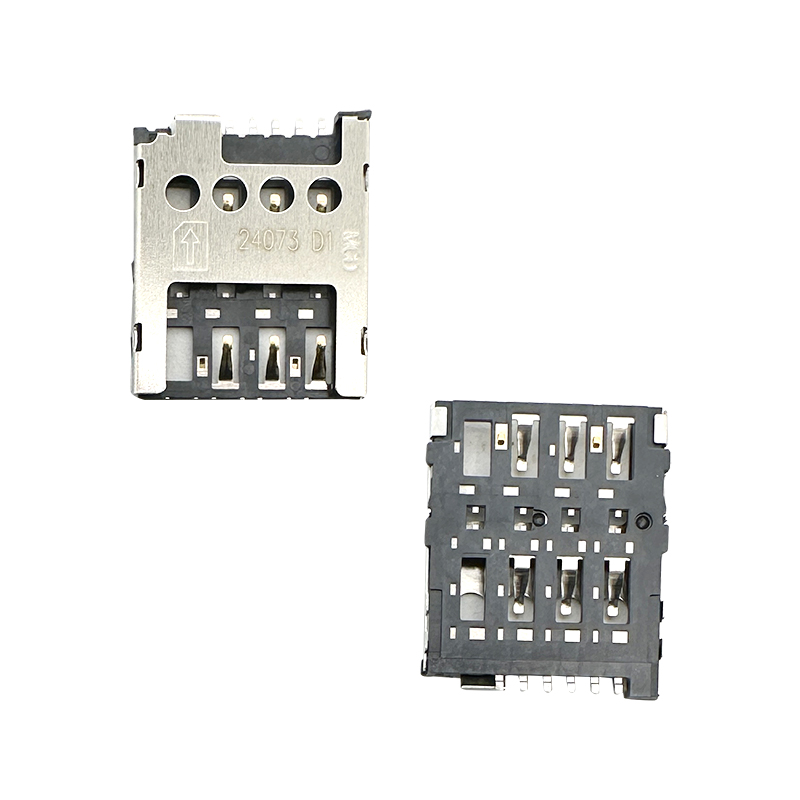

Low-Profile Micro SIM Card Connector,6P,H1.45mm:RHTAYIM-046

Series Part No:RHTAYIM-046

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-6P Configuration: This indicates there are 6 main electrical contacts (pins) in the connector. These pins provide the necessary electrical connections between the SIM card and the device.

-Pitch (H1.45mm): This refers to the distance between the centers of adjacent pins. H1.45mm specifically means a pitch of 1.45mm, which determines the spacing and alignment of the pins for proper connection.

-Push-Push Mechanism: The push-push mechanism allows users to insert the SIM card by pushing it into the slot until it clicks into place. Pushing again ejects the SIM card, making it convenient for users to handle without additional tools.

-Secure Card Retention: Ensures that the Micro SIM card is securely held in place, preventing accidental disconnection or ejection during use.

-Robust Design: Micro SIM card connectors are designed to withstand frequent insertions and removals of SIM cards without compromising their functionality or durability.

Applications

1.Tablets and Laptops

2.IoT Devices

3.Wearable Technology

4.Industrial Applications

Specifications

Micro SIM Card Connector,6P,H1.45mm

Material:

Insulator:Hi-Temperature Plastic,UL94V-0.Black.

Terminal:Copper Alloy,50u" min Nickel underplated on allover,gole plated allover.

Shell:Stainless Steel,50u" Nickel underplated on allover,gole flash on solder latch.

Electrical:

Current Rating:0.5 A

Voltage Rating:5.0 V

Insulation Resistance:500MΩ Min./500V DC

Withstanding Voltage:250V AC For 1 minute.

Contact Resistance:100mΩ Max.

Mating Cycles:5000 Insertions.

Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Micro SIM Card Connector,8P,PUSH PULL,H1.5mm : RHTAYIM-091

Series Part No:RHTAYIM-091

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-8P Configuration: Supports 8 pins, providing stable signal transmission for reliable communication.
-PUSH PULL Mechanism: Features a PUSH PULL system for easy and secure SIM card insertion and removal, enhancing user convenience.
-H1.5mm Height: A compact design with a 1.5mm height, making it ideal for space-constrained applications without sacrificing performance.
-Durable Construction: Built with high-quality materials to withstand wear and tear, ensuring long-lasting use in various electronic devices.

Applications

1.Portable IoT Devices
2.Laptops and Notebooks
3.Automotive Electronics
4.M2M Applications

Specifications

Micro SIM Card Connector,8P,PUSH PULL,H1.5mm
Electrical:
Rated Current:1.0A
Rated Voltage:30V
Contact Resistance:50mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Dielectric Withstanding Voltage:500V AC
Solder abiltiy:250oC~%%P5oC,10%%P0.5s
Durability:5000 Cycles Min.
Contact Resistance: 50mΩ Max.
Operating Temperature: -45ºC~+85ºC
Micro SIM Card Connector,8P,PUSH PULL,H1.5mm
Electrical:
Rated Current:1.0A
Rated Voltage:30V
Contact Resistance:50mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Dielectric Withstanding Voltage:500V AC
Solder abiltiy:250oC~%%P5oC,10%%P0.5s
Durability:5000 Cycles Min.
Contact Resistance: 50mΩ Max.
Operating Temperature: -45ºC~+85ºC
Micro SIM Card Connector,8P,PUSH PULL,H1.5mm
Electrical:
Rated Current:1.0A
Rated Voltage:30V
Contact Resistance:50mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Dielectric Withstanding Voltage:500V AC
Solder abiltiy:250oC~%%P5oC,10%%P0.5s
Durability:5000 Cycles Min.
Contact Resistance: 50mΩ Max.
Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

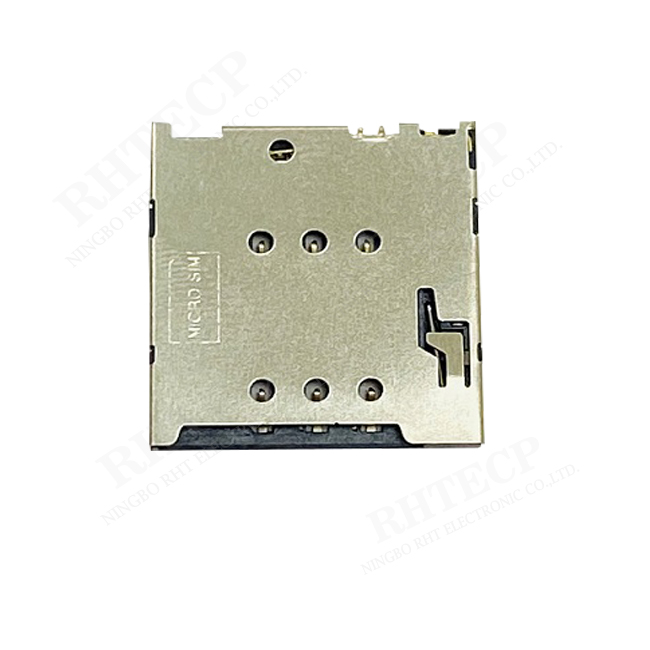

Micro SIM Card Connector: Molex 503960-0695 Alternative: RHTAYIM-105

Series Part No:RHTAYIM-105

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Push-Pull Mechanism: Features a convenient push-pull system for easy insertion and removal of SIM cards, enhancing user experience.
-High Performance: Supports stable signal transmission for optimal data connectivity and communication.
-Easy Installation: Designed for straightforward integration into various devices, simplifying the assembly process.
-Versatile Application: Suitable for use in mobile phones, tablets, wearable devices, and other electronics that require SIM card connections.

Applications

1.Tablets
2.Wearable Devices
3.Portable IoT Devices
4.GPS Devices

Specifications

Micro SIM Card Connector,6Pin H1.42mm
Molex 503960-0695 Alternative RE-C-SIM-105-H1.42-R
Material:
Insulator:High Temperature Thermoplastic,UL 94V-0
Contact:Copper Alloy,Plated 50u" Ni Ooverall Contact Au 1U
Shell:SUS,Plated 50u" Ni Ooverall,Plated 1u" Au Selective Contact Area
Electrical Characteristics:
Current rating:0.5mA AC/DC max.
Voltage rating:125V AC/DC
Ambient Temperature Range:-20°C~+60°C
Storage Temperature Range:-40°C~+70°C
Ambient Humidity Range:95% RH max
Contact resistance:100mΩ MAX
Insulation resistance:1000MΩ Min
Mating Cycles:3000 Min Insertions

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

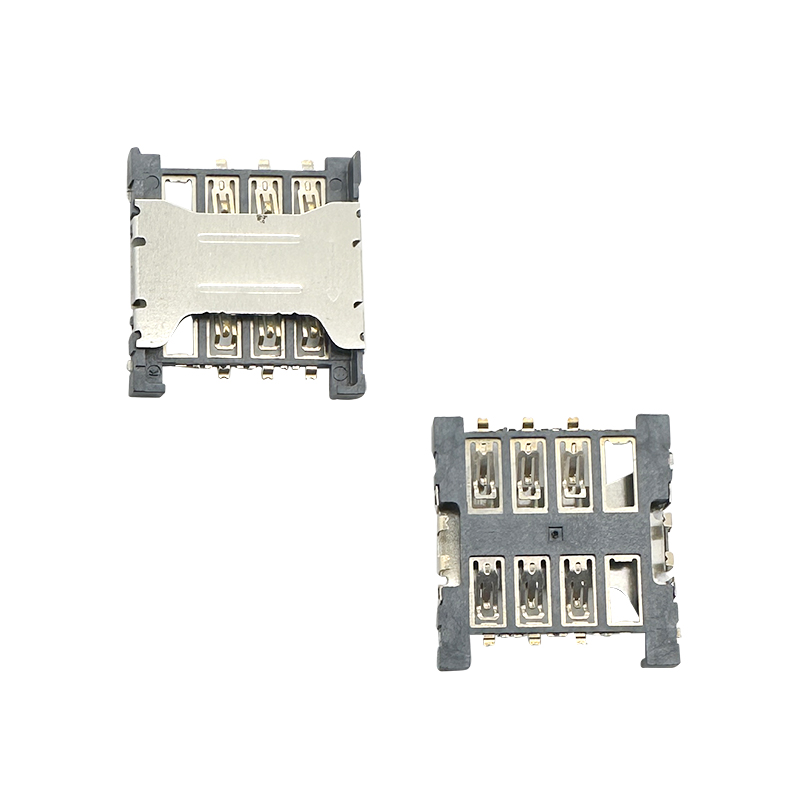

Micro SIM Card Connector 6P Slot PUSH PULL,H1.5mm:RHTAYIM-099

Series Part No:RHTAYIM-099

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-6-Pin Configuration: Supports 6-pin Micro SIM cards, ensuring reliable electrical connections for various mobile and embedded applications.

-Compact Size: Micro SIM card connectors are compact, making them suitable for devices where space is limited, such as smartphones, tablets, and other portable electronics.

-Robust Design: Micro SIM card connectors are designed to withstand repeated insertions and removals of SIM cards without compromising their functionality or durability.

-Electrical Contact Design: The connector's design ensures reliable electrical contact between the SIM card and the device, minimizing signal loss and ensuring stable communication.

-Push-Pull Mechanism: Unlike the push-push mechanism, the push-pull mechanism involves pulling the SIM card tray out to insert or remove the SIM card and pushing it back in to secure it. This design is commonly found in devices where space is limited or where a more secure locking mechanism is desired.

Applications

1.Smartphones

2.Tablets and Laptops

3.Wearable Devices

4.Portable Hotspots

5.Embedded Systems

Specifications

Micro SIM Card Connector,6P,PUSH PULL,H1.5mm

Material

Housing:Thermoplastic,UL94V-0.

Terminal:Copper Alloy,Gold Plated On Contact Area and Solder Tails,Nickel Plated Overall.

Shell:Stainless Steel.Nickel Plated Overall.GoldPlated On Solder Tails.

Electrical:

Current Rating:1.0 A max.

Contact Resistance:30mΩ Max.

Dielectric Withstanding Voltage:500V AC

Insulation Resistance:1000MΩ Min./500V DC

Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

Micro SIM Card Connector,6Pin H1.5mm,Tray type：RHTAYIM-075

Series Part No:RE-C-SIM-075

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-6-Pin Configuration: Features a 6-pin layout, ensuring stable and efficient signal transmission between the SIM card and device for smooth data transfer and communication.
-H1.5mm Height: A compact design with a 1.5mm height, ideal for applications with limited space, providing flexibility for compact device designs without compromising performance.
-Tray Type Design: The tray-type structure offers secure and stable placement of the SIM card, ensuring it stays firmly in position, even during frequent use or in high-vibration environments.
-Durable Construction: Made from high-quality materials, the connector is engineered for durability and longevity, resisting wear and ensuring long-term reliability in various conditions.

Applications

1.Mobile Phones
2.Tablets
3.Wearable Devices
4.IoT Devices

Specifications

Micro SIM Card Connector,6Pin H1.5mm,Tray type
Material:
Insulator:Hi--Temperature Plastic,UL94V-0,Black.
Terminal:Copper Alloy.Gold Flash Plating on all terminal,Aad 50u" min Nickel Underplated on allover.
Shell:50u" Nickel Underplated on allover,Gold flash on solder pad.
Electrical:
Current Rating:0.5A
Voltage Rating Voltage:5.0 vrms
Insulation Resistance:1000MΩ Min./500V DC
Withstanding Voltage:250V ACrms For 1Minute
Contact Resistance:100mΩ Max.AT 10mA/20mV max.
Mating Cycles:5000 Insertions
Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

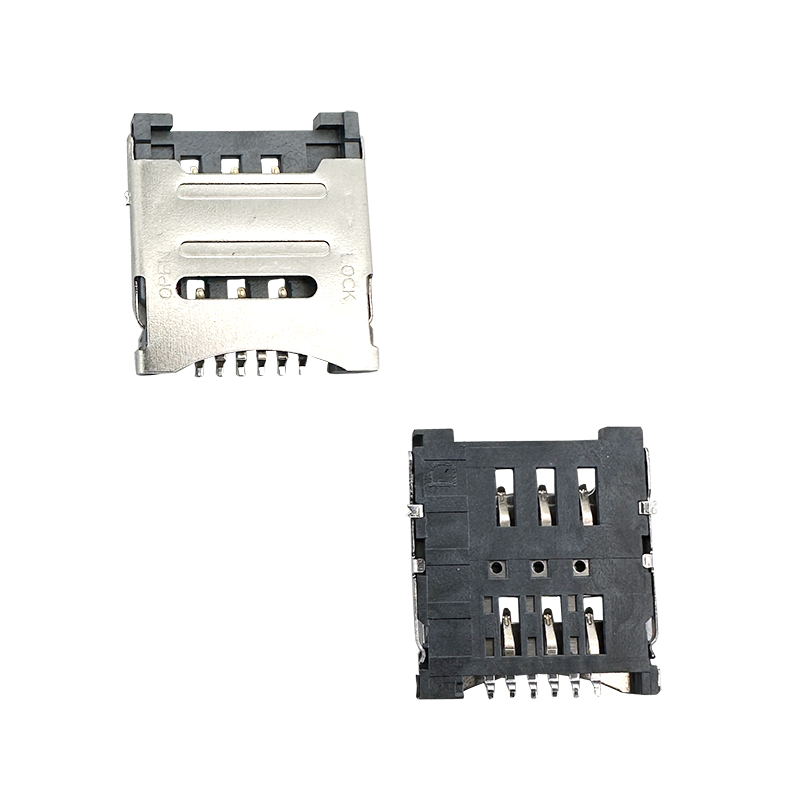

Micro SIM Card Connector 6Pin H1.8mm,Hinged type:RHTAYIM-072

Series Part No:RHTAYIM-072

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-6 Pin Configuration: This specifies that the connector has 6 main electrical contacts (pins) that establish connections between the SIM card and the device. These pins are essential for transmitting signals and power between the SIM card and the device.

-Pitch (H1.8mm): The pitch refers to the distance between the centers of adjacent pins. H1.8mm indicates a pitch of 1.8mm, which defines the spacing and alignment of the pins. A larger pitch like this can sometimes indicate a slightly larger connector size, accommodating robustness or additional features.

-Hinged Type: The hinged design means that the connector has a hinged cover or door mechanism. This design allows the cover to swing open or closed, providing protection and secure retention of the SIM card when it is inserted.

-Robust Construction: Micro SIM card connectors are designed to withstand frequent insertion and removal cycles of SIM cards without compromising their functionality or durability. The hinged cover adds to the robustness by protecting the SIM card and ensuring a secure fit.

Applications

1.Mobile Phones and Smartphones

2.Portable Hotspots

3.Automotive Applications

4.Industrial Equipment

5.Security and Surveillance Systems

Specifications

Micro SIM Card Connector,6Pin H1.8mm,Hinged type

Electrical:

Current Rating:1A Max.

Voltage Rating:30V DC max.

Contact Resistance:30mΩ Max.

Insulation Resistance:1000MΩ Min.

Dielectric Voltage:500V r.m.s/min.

Durability:5000 Cycles.

Operating Temperature: -45ºC~+85ºC

Material:

Housing:LCP,UL94V-0,Black.

Terminal:Copper Alloy.

Shell:Stainless Steel.

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

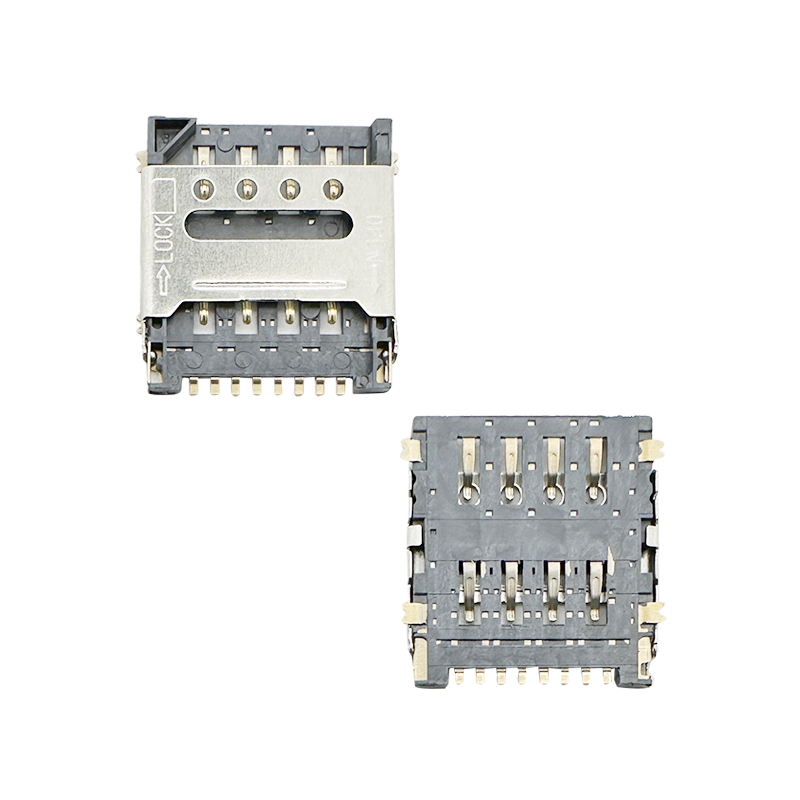

Micro SIM Card Connector,8Pin H1.5mm,Hinged type:RHTAYIM-089

Series Part No:RHTAYIM-089

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Material Quality:Constructed from high-quality materials for electrical and mechanical reliability.

-Low Profile:Fits well in slim devices, maintaining overall aesthetic.

-Compatibility:Supports standard Micro SIM dimensions and pin configurations.

-Temperature Resistance:Designed to operate effectively across a range of temperatures.

Applications

1.Portable Routers

2.Digital Cameras

3.Automotive Applications

4.Point of Sale (POS) Terminals

Specifications

Micro SIM Card Connector,8Pin H1.5mm,Hinged type

Material

Housing:Thermoplastic,UL94V-0.

Terminal:Phosphor Bronze,T=0.15,Ni Plated Under,Au Plated On Contact Area,G/F Plated On Soldertail.

Shell:Stainless Steel,T=0.15,Ni Plated Under,G/F Plated On Soldertail.

Electrical

Contact Resistance:60mΩ Max.

Insulation Resistance:1000MΩ Min.

Dielectric Withstanding Voltage:500V AC For 1 Minute.

Durability:5000 Cycles.

Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

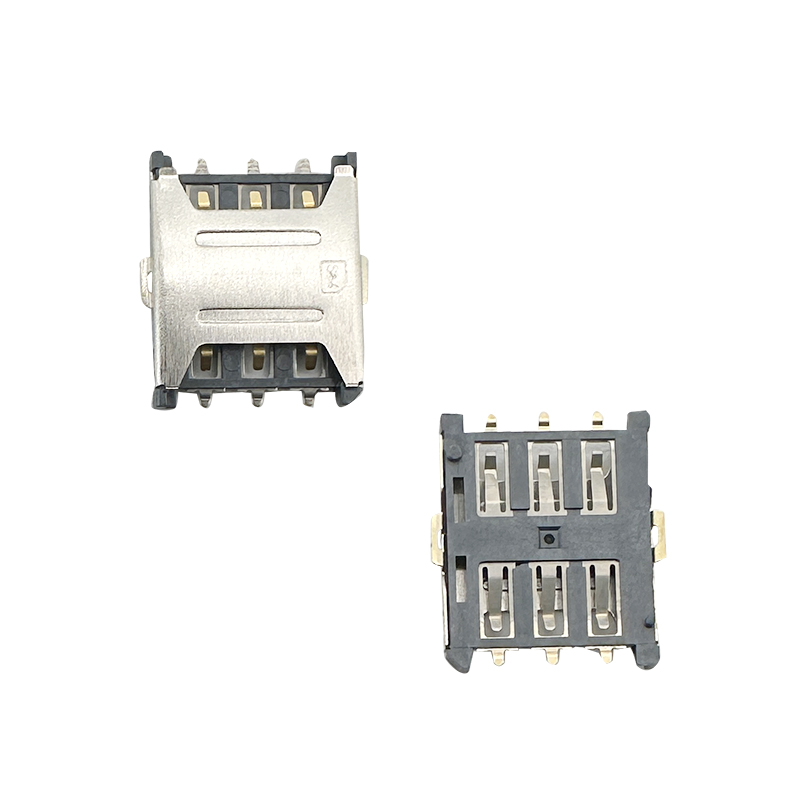

Nano SIM Card Connector PUSH PULL 6Pin H1.35mm :RHTAYIM-076

Series Part No:RHTAYIM-076

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact Size:Designed for nano SIM cards, which are the smallest standard SIM cards, reducing the overall footprint in electronic devices.

-Secure SIM Card Retention: The PUSH-PULL mechanism ensures that the SIM card is securely retained during device operation, preventing accidental ejection or poor contact.

-Pin Configuration:Typically includes 6 pins to ensure full functionality and compatibility with standard nano SIM cards, supporting all necessary electrical connections.

-Low Profile:With a height of 1.35mm, it is suitable for ultra-slim devices, helping to maintain a sleek and compact design

Applications

1.Smartphones

2.Tablets

3.Wearable Devices

4.Laptops and Notebooks

Specifications

Nano SIM Card Connector;PUSH PULL,6Pin,H1.35mm

Material:

Insulator:High Temperature Thermoplastic,UL94V-0.

Contact:C5210.Plated 50u" Ni Overall,Contact All Au 1u.

Shell:SUS,Plated 50u" Ni Overall,PAD Au 1u.

Electrical:

Current Rating:0.5A AC/DC max.

Voltage Rating:125V AC/DC

Contact Resistance:100mΩ Max.

Insulation Resistance:1000MΩ Min.500V DC

Operating Temperature: -45ºC~+85ºC

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 6 7 8 next page
