USB 3.1 type C connectors

USB 3.1 Type-C connectors, reversible design, high-speed data transfer, fast charging, compact form factor, universal compatibility, improved power delivery, USB Type-C cable, 10Gbps data rate, multi-device connectivity, durable build, plug-and-play, future-proof technology, enhanced power efficiency, device synchronization, versatile interface, USB 3.1 specifications.

Enlarge

Quick View

24P DIP+SMD Mid mount L=7.95mm USB 3.1 type C connector female socket : RHTAY467

Series Part No:RHTAY467

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High-Speed USB 3.1 Gen 2 Support: Enables data transfer rates up to 10Gbps, ensuring fast and efficient communication for demanding applications.
-Compact Mid-Mount Design: With a length of just 7.95mm, this connector is ideal for compact PCB layouts where space optimization is critical without compromising performance.
-Versatile Mounting Options: Features both DIP (Dual In-line Package) and SMD (Surface Mount Device) capabilities, allowing flexible integration into various PCB manufacturing processes.
-Reversible USB Type-C Interface: Designed for user convenience with a reversible plug orientation, eliminating the hassle of incorrect insertion and reducing wear.

Applications

1.Wearable Devices
2.External Storage Devices
3.Docking Stations and Hubs
4.Industrial Equipment

Specifications

24P DIP+SMD L=7.95mm USB 3.1 type C connector female socket
Electrical
Current Rating: 3.0A-5.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

24P DIP+SMD L=12.0mm USB 3.1 type C connector female socket : RHTAY468

Series Part No:RHTAY468

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact 12.0mm Length: Slightly longer design to accommodate specific device layouts while maintaining a slim profile for modern electronics.
-Reversible USB Type-C Interface: Enables reversible plug orientation, allowing easy and convenient connection without concern for insertion direction.
-Premium Material Construction: Uses high-quality conductive materials with corrosion-resistant plating, ensuring low contact resistance and long-term durability.
-Optimized Electrical Performance: Engineered to minimize signal loss, crosstalk, and electromagnetic interference (EMI), ensuring stable and efficient communication.

Applications

1.Consumer Electronics
2.Computers and Laptops
3.Mobile Devices and Smartphones
4.Audio/Video Equipment

Specifications

24P DIP+SMD L=12.0mm USB 3.1 type C connector female socket
Electrical
Current Rating: 3.0A-5.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

24P Vertical SMD L=10.35mm USB 3.1 type C connector female socket : RHTAY422

Series Part No:RHTAY422

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB 3.1 Gen 2 Support: Provides ultra-fast data transfer speeds up to 10Gbps for high-performance applications.
-Vertical Mount Design: The 10.35mm height vertical orientation optimizes PCB layout and enables efficient space utilization in compact devices.
-Surface Mount Technology (SMD): Designed for automated PCB assembly, ensuring high production efficiency and consistent soldering quality.
-Reversible USB Type-C Interface: Allows easy plug-in from either side, improving user convenience and reducing wear from incorrect insertion.

Applications

1.External Storage Devices
2.Docking Stations and Hubs
3.Industrial Equipment
4.Automotive Electronics

Specifications

24P Vertical SMD L=10.35mm USB 3.1 type C connector female socket
Electrical
Current Rating: 1.5A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

24P Vertical Splint L=10.45mm USB 3.1 type C connector female socket (T=0.80 OR 1.00mm) : RHTAY412&RHTAY419&RHTAY420

Series Part No:RHTAY412&RHTAY419&RHTAY420

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-High-Speed USB 3.1 Gen 2 Support: Enables data transfer rates up to 10Gbps for efficient and reliable high-bandwidth communication.
-Vertical Splint Design: The vertical orientation with splint mounting ensures secure mechanical stability and easy PCB integration in tight spaces.
-Multiple Thickness Options: Available in 0.80mm and 1.00mm PCB thickness compatibility, providing flexibility for various board designs and applications.
-Compact 24-Pin Layout: Optimizes space utilization while maintaining full USB Type-C functionality.

Applications

1.Consumer Electronics
2.Computing Devices and Laptops
3.Mobile Phones and Tablets
4.Audio and Video Equipment

Specifications

24P Vertical Splint L=14.35mm USB 3.1 type C connector female socket (T=0.80 OR 1.00mm)
Electrical
Current Rating: 1.5A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

24P Vertical Splint L=6.8mm USB 3.1 type C connector female socket (T=0.80 OR 1.00mm) : RHTAY469

Series Part No:RHTAY469

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Compact Vertical Design: The connector features a slim vertical form factor with a length of 6.8mm, making it ideal for applications with limited space and height constraints.
-24-Pin Configuration: Equipped with 24 pins to support the full USB 3.1 Gen 2 standard, enabling high-speed data transfer rates up to 10 Gbps.
-Contact Thickness Options: Available in two contact thicknesses, 0.80mm and 1.00mm, providing flexibility to balance between durability and electrical performance depending on application requirements.
-High Signal Integrity: Designed with precision contact geometry to ensure stable electrical connection and minimize signal loss, interference, and crosstalk for reliable high-speed communication.

Applications

1.Industrial Automation
2.Networking and Communication Devices
3.Medical Electronics
4.Automotive Electronics

Specifications

24P Vertical Splint L=6.8mm USB 3.1 type C connector female socket (T=0.80 OR 1.00mm)
Electrical
Current Rating: 3A-5A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

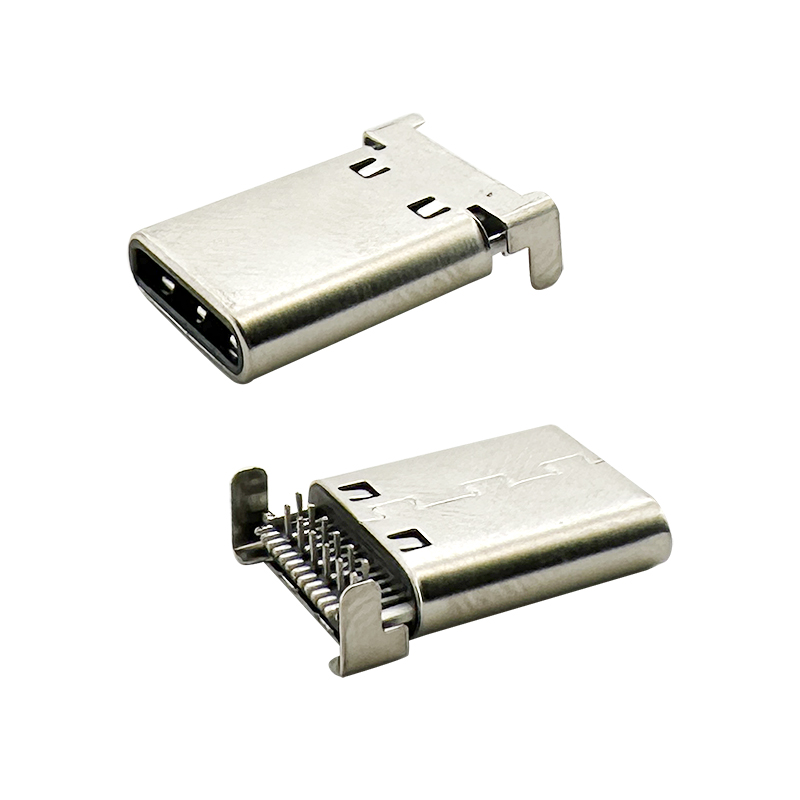

24P Vertical SMD L=10.2mm USB 3.1 type C connector male plug :RHTAY470

Series Part No:RHTAY470

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-24 Pins: Facilitates high-speed data transmission, robust power delivery, and alternate modes. The 24-pin configuration ensures wide compatibility and versatile functionality.

-SMD (Surface Mount Device): Designed for surface mounting on printed circuit boards (PCBs), allowing for automated assembly processes. This enhances production efficiency and ensures a compact design.

-Vertical Orientation: The vertical orientation allows for easy integration into devices where space is limited and a perpendicular connection is necessary.

-Length of 10.2mm: Provides a compact footprint, suitable for devices with stringent space constraints while maintaining robust mechanical stability.

Applications

1.Automotive Applications

2.Industrial and Embedded Systems

3.Medical Devices

4.Telecommunications

Specifications

24P Vertical SMD L=10.2mm USB 3.1 type C connector male plug

Electrical

Current Rating:3.0A Max

Voltage: 100 VAC

Contact Resistance: 40mΩ Max

Insulation Resistance: 100MΩ Min.

Mechanical

Operating Temperature:-30°C TO +85°C.

Insertion Force : 5N~20N

Unmating Force: 6N~20N

Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

24P Vertical SMD L=11.1mm USB 3.1 type C connector male plug : RHTAY451

Series Part No:RHTAY451

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-Robust Electrical Performance: Engineered contacts ensure stable electrical connection with minimal signal loss and interference, supporting reliable high-speed USB communication.
-Durable Construction: Made from high-quality materials with corrosion-resistant contacts and sturdy housing to ensure longevity and durability under frequent insertion cycles.
-USB Type-C Reversible Design: Fully compliant with USB Type-C standards allowing reversible plug orientation for user convenience and enhanced device compatibility.
-Secure Mounting: Designed for firm PCB attachment to prevent loosening or damage during device operation or handling.

Applications

1.Consumer Electronics
2.Mobile Devices
3.Laptops and Notebooks
4.Tablets

Specifications

24P Vertical SMD L=11.1mm USB 3.1 type C connector male plug
Electrical
Current Rating:3.0A Max
Voltage: 100 VAC
Contact Resistance: 40mΩ Max
Insulation Resistance: 100MΩ Min.
Mechanical
Operating Temperature:-30°C TO +85°C.
Insertion Force : 5N~20N
Unmating Force: 8N~20N
Durability:10000 Cycles

Technical Documents

Please contact us for more information.

X

X
Enlarge

Quick View

24P Vertical Splint L=10.5mm USB 3.1 type C connector male plug (T=0.80mm)：RHTAY471

Series Part No:RHTAY471

RoHS Compliance:Yes

Download Datasheet:

Write Your Request Full P/N :

QTY:

Features

-USB 3.1 Gen 2 Support: Delivers high-speed data transfer up to 10Gbps, ideal for fast and efficient communication in next-gen electronic devices.
-Vertical Splint Design: Optimized for vertical mounting, providing a secure and stable connection with minimal board space usage.
-Slim Profile: With a compact 10.5mm length, it suits applications where space-saving and vertical assembly are crucial.
-0.80mm PCB Thickness Compatibility: Specifically designed for use with 0.80mm thickness PCBs, ensuring perfect mechanical and electrical fit.

Applications

1.Consumer Electronics
2.Computers and Laptops
3.Mobile Devices and Tablets
4.Industrial Equipment

Specifications

24P Vertical Splint L=10.5mm USB 3.1 type C connector male plug (T=0.80mm)
NOTES:
1. MATERIAL:
1-1.SHELL: SUS316 1/2H T=0.15mm
1-2.HOUSING: PA9T UL94V-0 BLACK
1-3.TERMINAL: C7025 TM03 T=0.15mm
1-4.SPRING: SUS301R-H T=0.08mm
1-5.METAL PLATE: SUS301R-H T=0.35mm
2. PLATING:
2-1.TERMINAL: GOLD PLATED
2-2.SHELL: NICKEL PLATED 60μ"MIN.
2-3.SPRING: 40~100μ" NICKEL PLATED
2-4.METAL PLATE: 40~100μ" NICKEL PLATED
2-5.AFTER SHELL: 40~100μ" NICKEL PLATED
3. MECHANICAL PERFORMANCE
3-1.INSERTION FORCE: 5N~20N.
3-2.WITHDRAWAL FORCE: INITIAL 8N~20N 1000 MATING CYCLES AFTER 6~20N.
3-3.DURABILITY: 10000 CYCLES.
4. ELECTRICAL PERFORMANCE
4-1. CURRENT RATING: 3A.
4-2. LLCR: CONTACT: 40mΩ MAX.
4-3. INSULATION RESISTANCE: 100MΩ MIN.
4-4. DIELECTRIC WITHSTAND VOLTAGE: 100V AC
5. OPERATING TEMPERATURE RANGE: -55°C~105°C(WITHOUT LOSS FUNCTION).
6. IR REFLOW:
THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.
7. RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.

Technical Documents

Please contact us for more information.

X

X

Previous page 1 2 3 4 5 next page
