Features
-Height (H1.85mm):Specifies the vertical clearance required above the PCB surface for the connector, ensuring proper spacing for components and airflow within the electronic device.
-Pin Configuration:Includes 6 primary pins for electrical connections (typically power, ground, and data signals) and 2 additional pins for features like SIM card detection (CD pin) or other specific functionalities.
-Without Post: This version of the connector does not include posts, making it ideal for devices where the PCB mounting does not require additional mechanical support posts. This simplifies the design and can make the connector more compact and lightweight.
-Push-Push Mechanism:Allows for easy insertion and removal of the SIM card with a simple push-push action. This mechanism is user-friendly and reduces wear on both the connector and the SIM card.
Applications
1.Automotive Systems:
2.Medical Devices
3.Security Systems
4.Point of Sale (POS) Terminals
Specifications

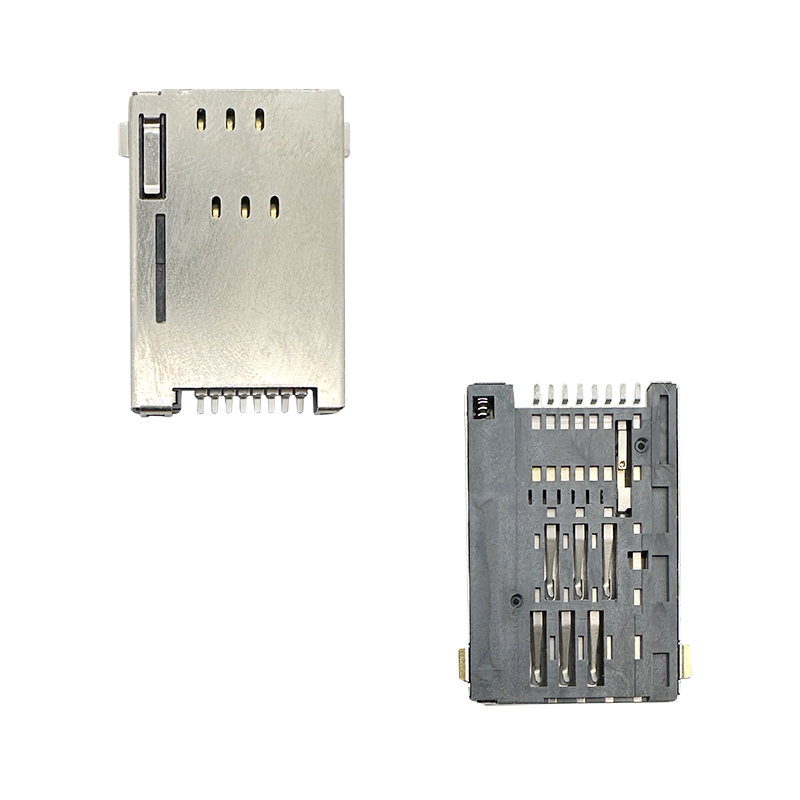

SIM Card Connector,PUSH PUSH,6P+2P,H1.85mm,without Post
Material:
Insulator:H-Temperature Plastic,UL94V-0.Black.
Contact:Copper Alloy,T=0.15mm;Shell:Stainless Steel,T=0.15mm
Finsh:
Terminal:50u" min Nickel Underplated on Allover,Gold Plating on Contact Arer,80u" min Tin on Solder Tail.
Shell:50u" Nickel Underplated on Allover,Gold Flash on Solder Latch.
Electrical:
Current Rating:0.5A
Voltage Rating:5.0 Vrms.
Insulation Resistance:500M Min.At DC 500V DC
Withstanding Voltage:250V ACrms For 1 Minute.
Contact Resistance:100M Max.At 10MA/20mV MAX.
Operating Temperature: -45ºC~+105ºC
Mating Cycles:5000 Insertions.
Technical Documents
Please contact us for more information.
