Features
-Pitch: The pitch refers to the distance between adjacent pins or contacts. In this case, it is 2.0mm, which is the standard spacing for this type of connector.
-Number of Contacts: Female header connectors come in various configurations with different numbers of contacts (pins). These can range from single-row configurations with a few pins to dual-row configurations with many pins, depending on the specific application requirements.
-Height: The height of 4.3mm specifies how much vertical space the connector occupies on a PCB when soldered or mounted. This height provides adequate clearance and mechanical stability for applications where slightly taller connectors are needed.
-Connector Type: It is a female header connector, meaning it has receptacles or sockets that accept male pins or headers. This configuration allows for easy mating and unmating of connections, making it suitable for board-to-board or board-to-wire applications.
Applications
1.Printed Circuit Board (PCB) Interconnections
2. Industrial Applications
3. Consumer Electronics
4.Telecommunications
Specifications

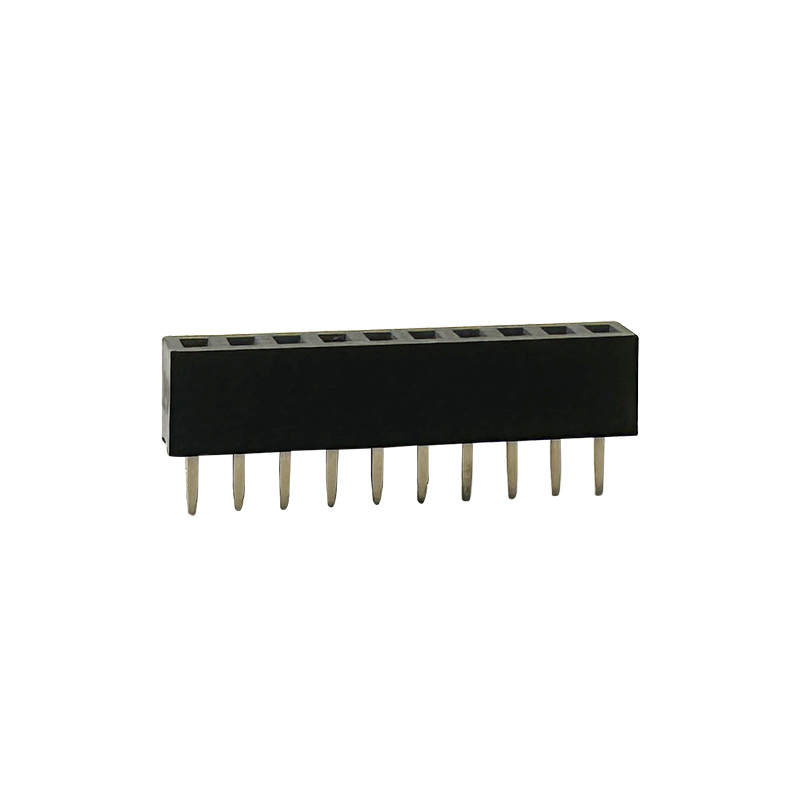

2.0mm Pitch Female Header Connector Height 4.3mm
Order Information
RHTAY08B-4.3-1-XX-S-B
Height: 4.3mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.Features
