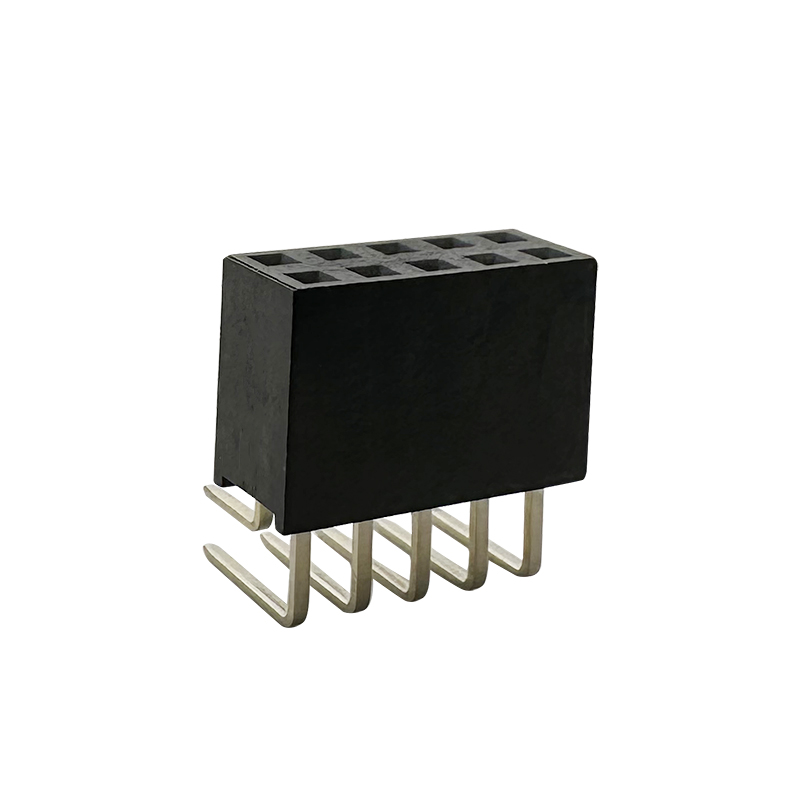

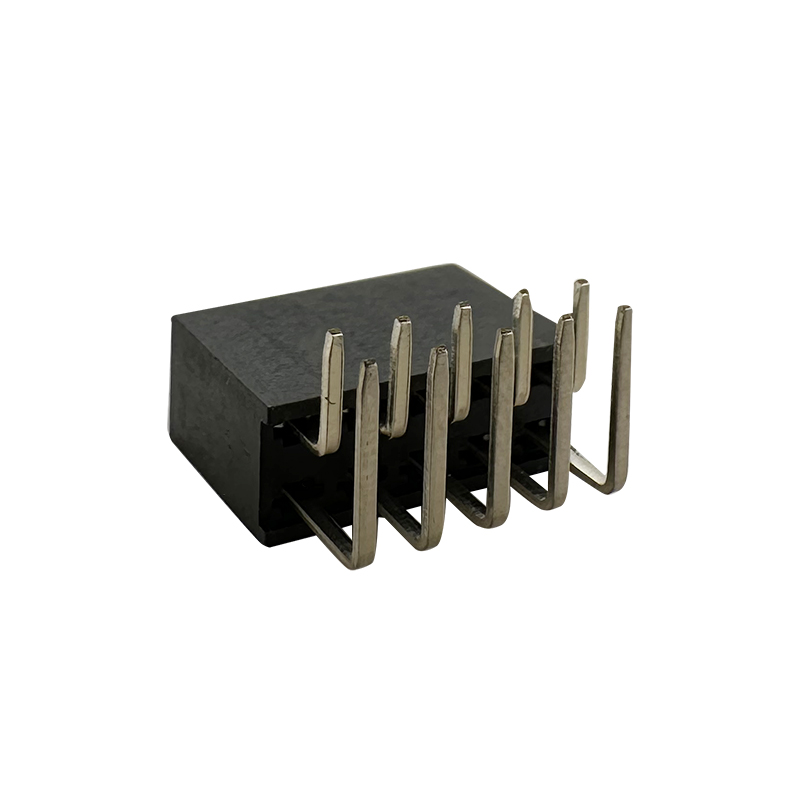

    2.0mm Pitch Female Header Connector Height 2.2mm : RE-C-208B-2.2

    Series Part No: RE-C-208B-2.2
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews
    2.0mm Pitch Female Header Connector Height  2.2mm
    Order Information
    RE-C-208B-2.2-1-XX-S-B
    Height: 2.2mm
    1-Single layer   2-Double layer
    XX-Total pin number  (No.of 2~80pin)
    S-Straight Pin    T-SMT Pin
    Material:A=PBT  B=PA6T  C=LCP
    Material:
    Housing: PA6T UL94V-0
    Contacts: Brass or Phosphor Bronze
    Plating: Au or Sn over 50u" Ni
    Electrical Characteristics:
    Current Rating: 1.5 AMP
    Withstanding Voltage: 500V AC/DC
    Insulator Resistance: 1000MΩ Min
    Contact Resistance: 20mΩ Max
    Operating Temperature: -40ºC~+105ºC
