Features
-Compact and low-profile structure helps optimize PCB space and component arrangement
-Secure battery retention design keeps the coin cell firmly positioned during operation and transportation
-Reliable contact terminals provide stable conductivity and consistent electrical connection
-Easy battery insertion and removal supports convenient assembly, replacement, and maintenance
Applications
1.Security Systems
2.Medical Equipment
3.Automotive Electronics
4.Communication Equipment

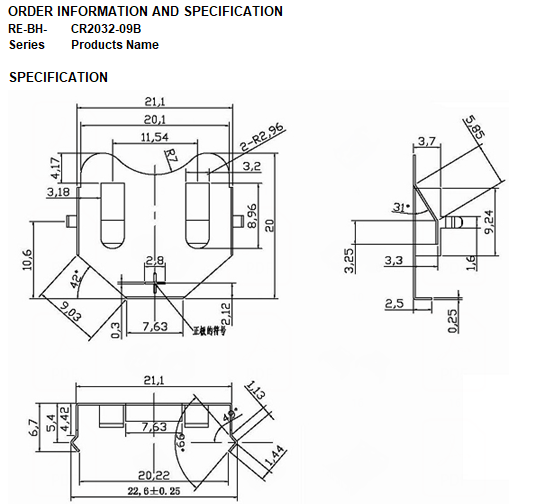

Specifications
CR2032 Coin Battery Holder
Material:
Contacts: Phosphor Bronze
Electrical Characteristics:
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 30m Ohm max.
Dielectnic voltage: 500V AC
Operating Temperature: -55ºC~+105ºC
Technical Documents
Please contact us for more information.
CR2032 Coin Battery Holder:RHTEYR2032-09B
