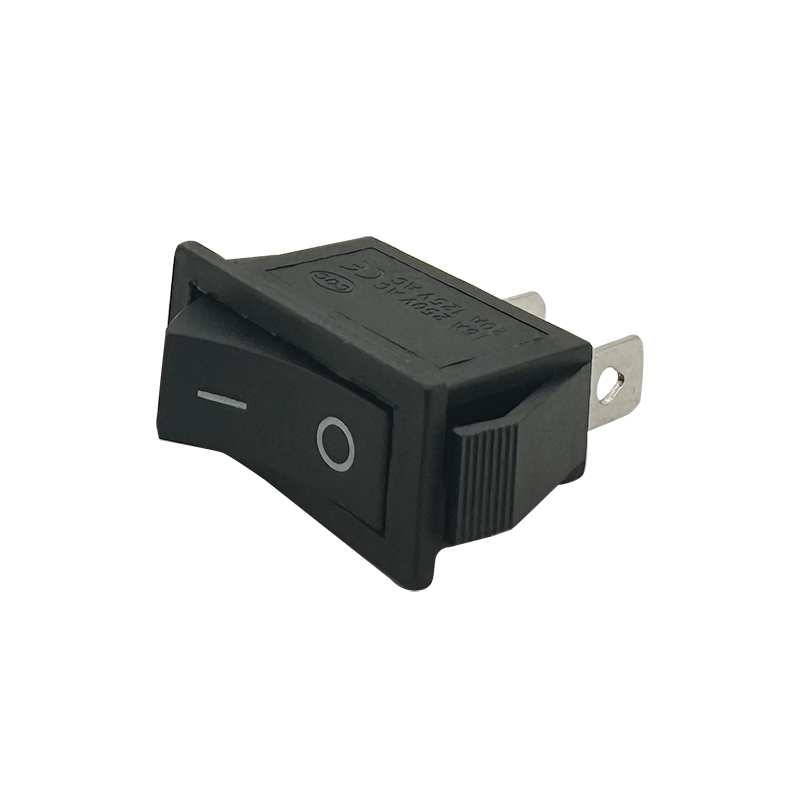

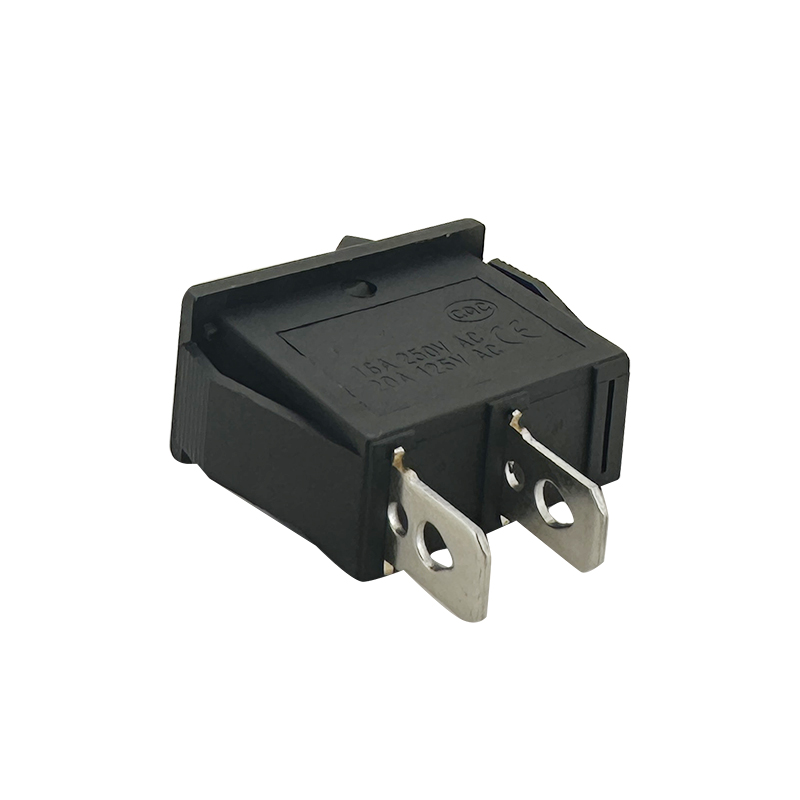

    Rocker Switch:RHTGY01

    Series Part No: RHTGY01
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -The rocker switch operates with a simple pressing action, typically rocking back and forth to toggle between on and off states.

    -The switch often features a mechanical snap action, making it easy to feel when it's engaged.

    -Low-force operation is common, requiring minimal effort to engage.

    -Available in a wide range of colors and designs, allowing for customization to match the aesthetic or functional needs of the product.

    Applications

    1.Computers and Electronics

    2.Industrial and Manufacturing Equipment

    3.Automotive Applications

    4.Power Panels and Circuit Boards

    Specifications

    MATERIAL

    1.Housing: Nylon 66

    2.Rocker: PC & PA66

    3.Contacts: Silver Alloy

    4.Terminal: Brass Silver Plated

    5.Lamp: Neon Lamp,Tungsten Lamp

    6.Spring: SWP,SUS

    7.Movable Arm: Brass Silver Plated

    ELECTRICAL

    1.Electrical Rating:

    10(4)A 250VAC T85

    16(4)A 250VAC T125/55 1E4

    15A 125V/7.5A 250AC

    2.Mechanical life:Over 30000 Cycles

    3.Electrical life: Over 10000 Cycles

    4.Contact Resistance:<20mΩ

    5.Insulation Resistance:>1000MΩ

    6.High Voltage Resistance:>1500V 1 min

    7.Ambient Temperature: Terminal Side -20ºC~+85ºC; Actuating Side -20ºC~+55ºC

    8.Storage Temperature: -30ºC~+80ºC Max

    9.Atmospheric Humidity: Max 85%

    10.Actuating force: 4~8N(depends on different switch function)

    11.Flammability: UL94 V-2

    12.Temperature rise at the terminal: Max 30ºC (Ul1054)

    13.Solder ability of terminal: Max 350ºC 3S

    Technical Documents

    Please contact us for more information.
