Features
-Threaded Coupling: The UHF chassis jack uses a threaded coupling mechanism, which allows it to securely connect to a mating UHF plug. The threads provide a strong and stable connection suitable for applications where vibration or movement might occur.
-Versatility: It is a versatile connector used in a wide range of applications, including radio communications, amateur radio (ham radio), CB (Citizens Band) radio, and other RF equipment. It can handle frequencies up to several hundred megahertz (MHz).
-Bayonet Lock: Some UHF chassis jacks feature a bayonet lock mechanism in addition to the threaded coupling. This bayonet lock provides additional security and prevents unintentional disconnection.
-Compatibility: UHF chassis jacks are compatible with cables and devices using UHF plugs (also known as PL-259 connectors). They are commonly used with coaxial cables such as RG-58, RG-8, and RG-213.
Applications
1.Wireless Networking
2.Industrial Applications
3.Telecommunications
4.Medical Equipment
Specifications
MATERIALS
Body：Nickel Plated Brass
Contacts：Nickel Plated Brass
Dielectric：Delrin
ELECTRICAL
Nominal Impedance：Non constant
Frequency Range：0-5000MHz
Voltage Rating：500VAC
Withstanding Voltage：1000V RMS
Insulation Resistance：5000MΩ min
Technical Documents
Please contact us for more information.
UHF Connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of UHF Connectors. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

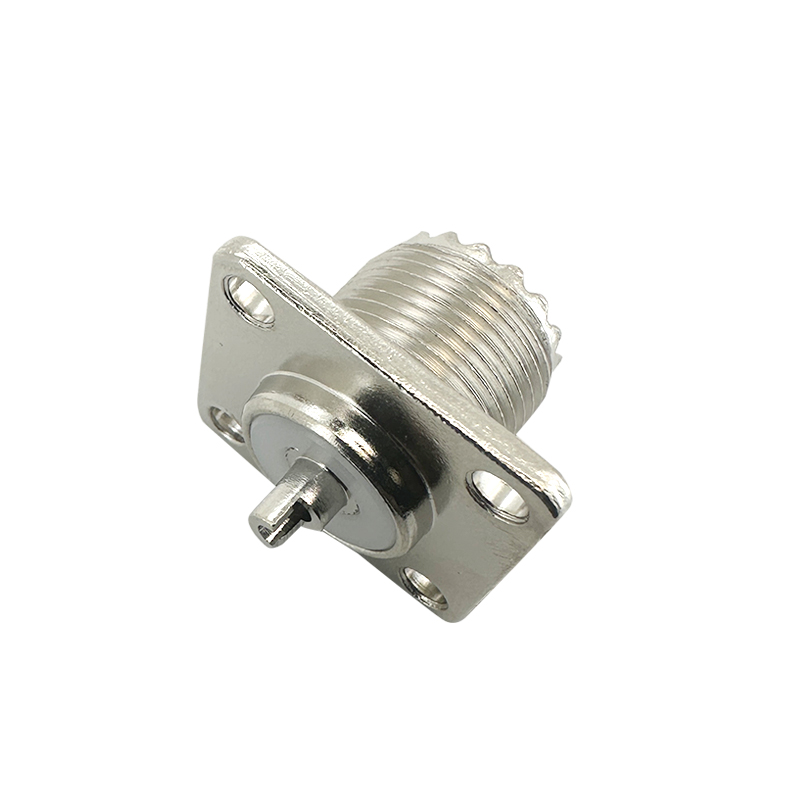

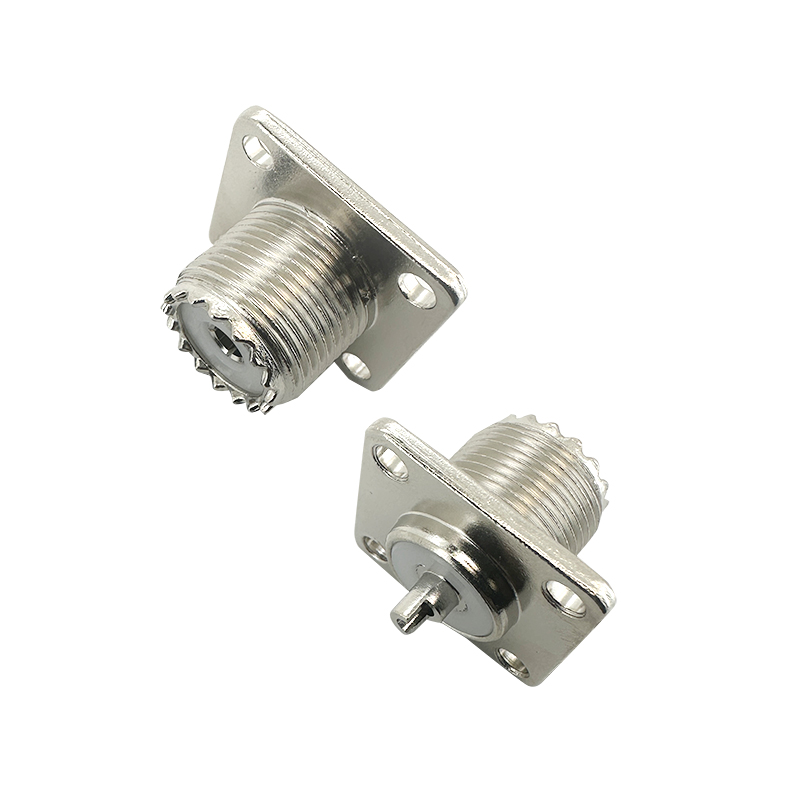

UHF CHASSIS JACK ：RHTUHF2390
