Features
-Connector Compatibility: Allows connection between BNC connectors and other types of connectors, such as RCA (Phono), F-type (coaxial), SMA (SubMiniature version A), TNC (Threaded Neill-Concelman), or other coaxial connectors.
-Versatility: Provides flexibility in connecting different types of coaxial cables and equipment that use BNC connectors, adapting them to various applications and setups.
-Male/Female Variants: Available in both male and female configurations to accommodate different equipment and cable gender requirements.
-Durability: Constructed from durable materials, typically metal (brass or stainless steel) with nickel or gold plating, ensuring reliability and longevity in various environments.
Applications
1.Test and Measurement Instruments
2.Networking and Telecommunications
3.Amateur Radio (HAM Radio)
4.Military and Aerospace
Specifications
1- Electrical
Impedance: 50 Ω
Frequency Range:0~4 GHz Max.
Voltage Rating: 500 volts
Withstand Voltage:1500V
Insulation Resistance:5000 MΩ
V.S.W.R:＜1.22
Contact resistance:
Centre contact: 1.5 mΩ Max.
Outer contact: 0.2 mΩ Max.
2- Durability(mating):500(cycles)
3- Mechanical
Mating 2-stud bayonet lock
Technical Documents
Please contact us for more information.
BNC CONNECTORS is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of BNC CONNECTORS. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

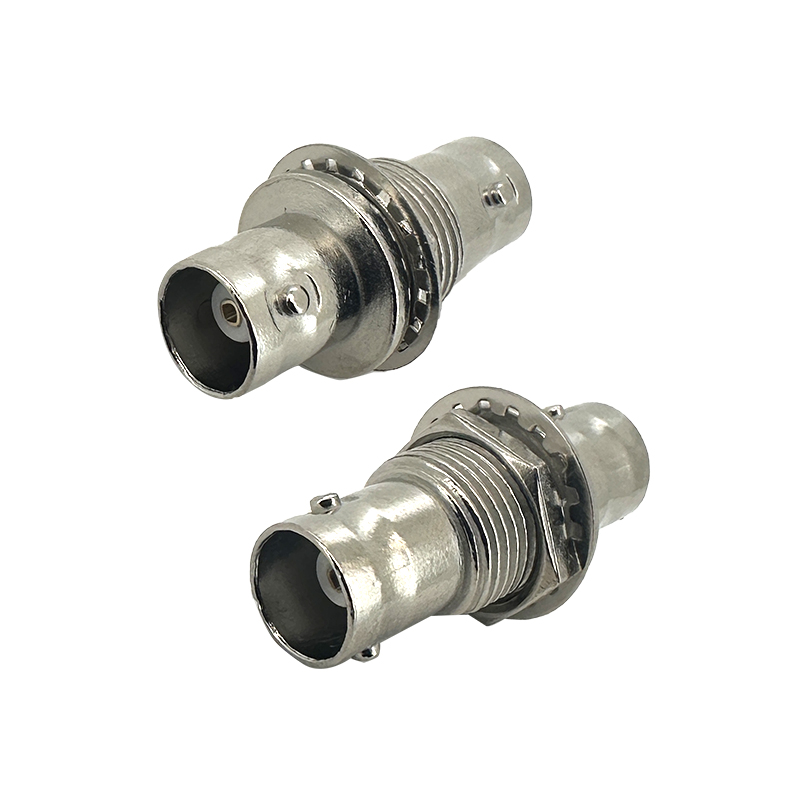

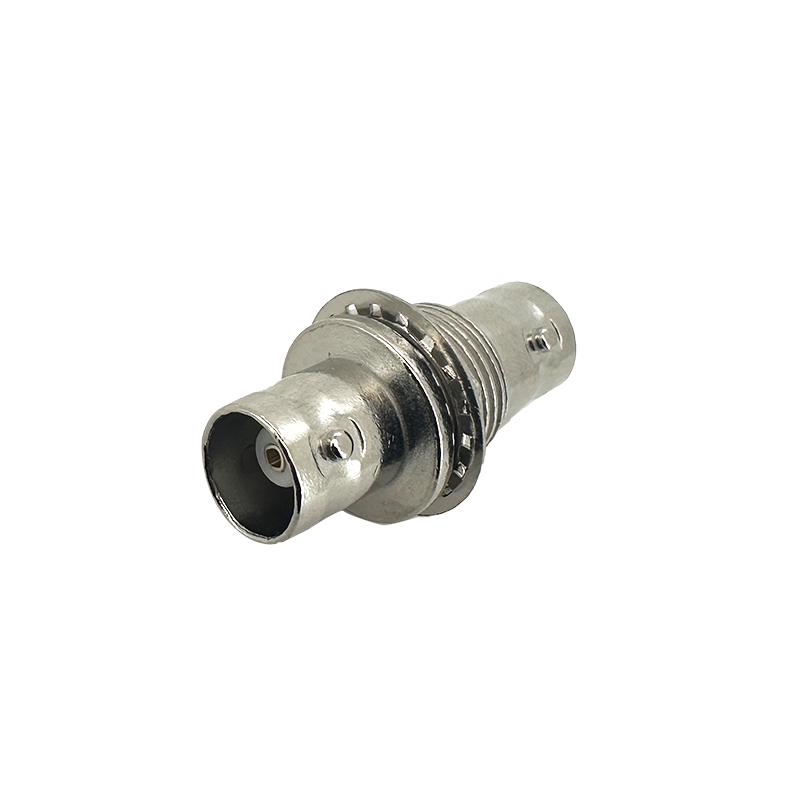

BNC Adapter :RHTAY2NC019
