Features
-Provides low signal loss and high shielding to reduce interference.
-Impedance options: 50Ω or 75Ω, depending on the application.
-Features bayonet-style coupling for quick and reliable connections.
-Insulation material is usually PTFE (Teflon) for high-temperature resistance.
Applications
1.Test and Measurement Equipment
2.Broadcast and Video Transmission
3.Telecommunications & Networking
4.Aerospace & Defense Systems
Specifications
1- Electrical
Impedance: 50 Ω
Frequency Range:0~4 GHz Max.
Voltage Rating: 500 volts
Withstand Voltage:1500V
Insulation Resistance:5000 MΩ
V.S.W.R:＜1.22
Contact resistance:
Centre contact: 1.5 mΩ Max.
Outer contact: 0.2 mΩ Max.
2- Durability(mating):500(cycles)
3- Mechanical
Mating 2-stud bayonet lock
Technical Documents
Please contact us for more information.
RF CONNECTOR are available at RHT.
RHT can supply many RF Connector to replace Manufacturers
Amphenol, Cinch Connectivity, Hirose, Johnson / Cinch, Molex,
TE Connectivity, & more. We have been providing very large RF CONNECTORS
in the international markets and get very good feedback from each customers .
Please view our large selection RF CONNECTOR.

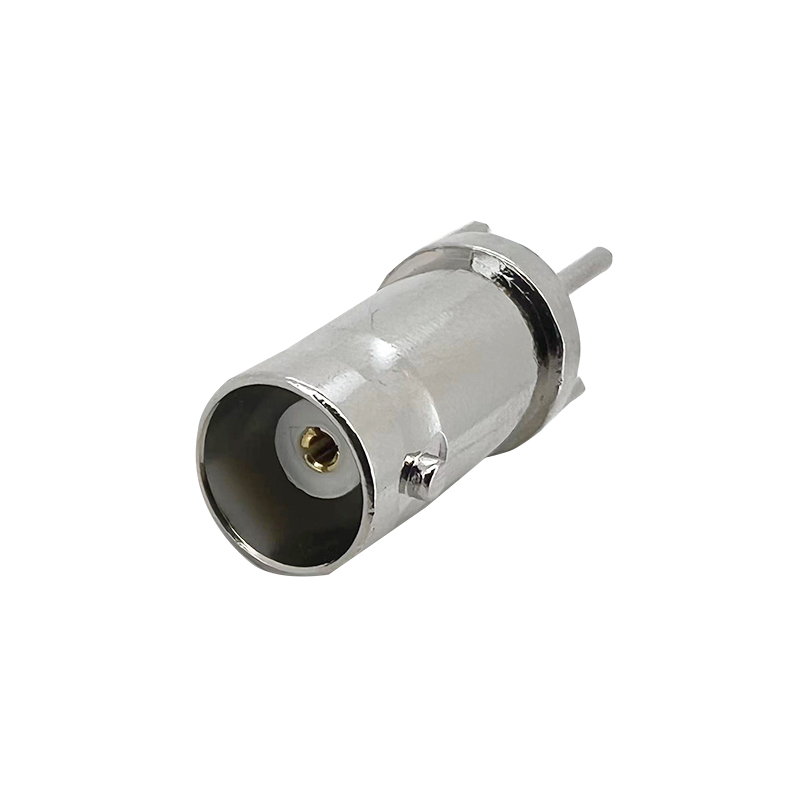

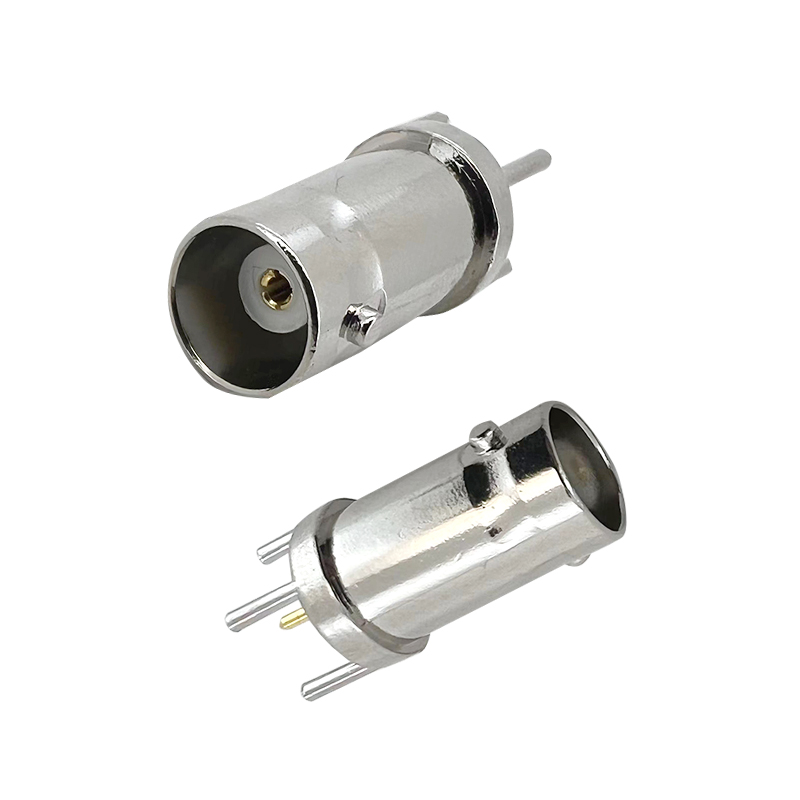

PCB Mount BNC Connector :RHTAY2NC001
