Features
-Compatibility: Designed for easy surface mounting on PCBs, facilitating straightforward assembly and integration into electronic assemblies during manufacturing.
-Reliability: Manufactured with high-quality materials and stringent production processes to ensure robust performance and longevity in diverse operating conditions.
-Versatility: Suitable for a wide range of applications including wireless communication devices, IoT sensors, consumer electronics, medical devices, and industrial automation where compact size and precise timing are crucial.
-Cost-Effectiveness: Provides cost-effective solutions for applications requiring stable frequency generation in compact form factors.
Applications
1.Wireless Communication Devices
2.Mobile Devices
3.Consumer Electronics
4.Automotive Electronics
Specifications
Ultra thin/Dimensions (2.5x2.0x0.55)
Nominal frequency range:12.000-66.000 MHz
Crystal cut:Fundamental [AT-cut]
Storage temperature range:-40℃-+85℃
Operating temperature range:-10℃~+ 60℃, -30℃~+ 85℃
Frequency temperature characteristics (Ref. to +25 ): ±10x10-6 ,±15x10-6
Frequency tolerance (at +25℃):±10x10-6
Equivalent series resistance:Please efer to the ollowing ESR Table
Load capacitance:8pF, 12pF
Shunt capacitance:5pF max.
Level of drive:10μW (10μW max .)
| Outline and Dimensions [unit:mm] |
|
Technical Documents
Please contact us for more information.

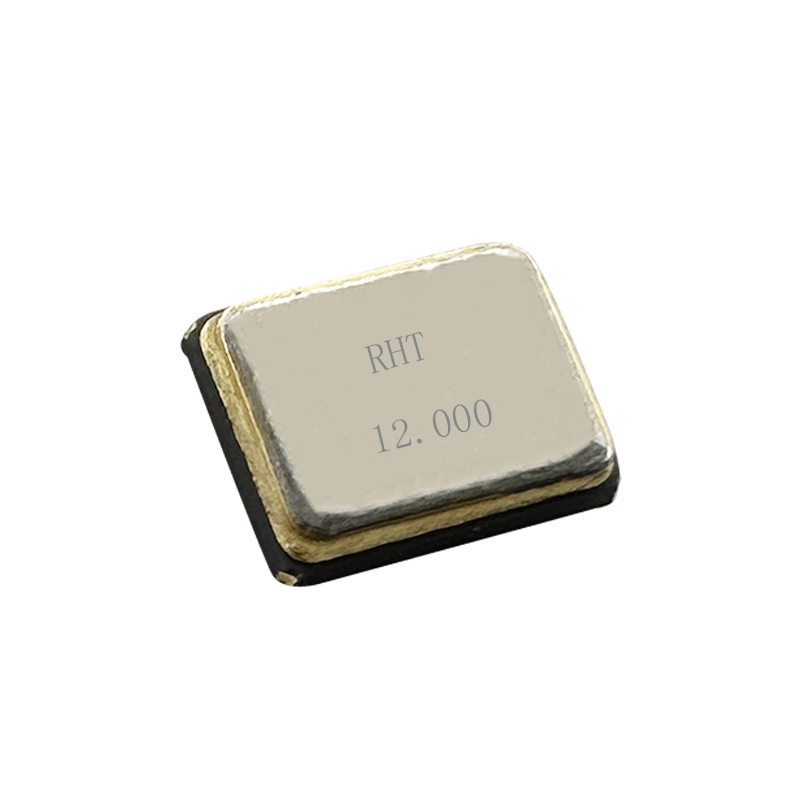

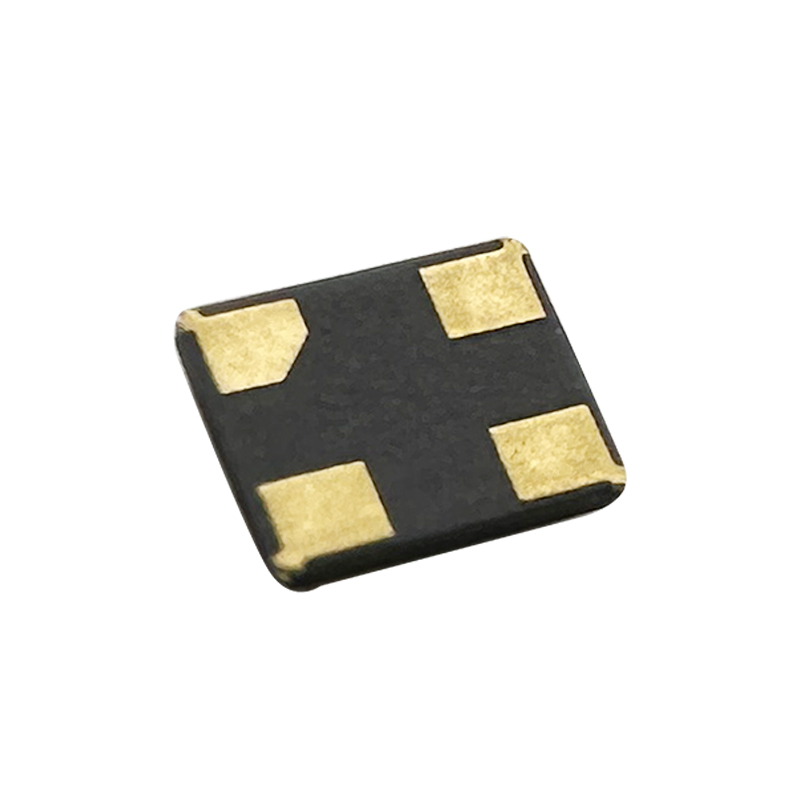

Crystal Units Ceramic SMD 2.5x2.0x0.55mm:RHTNYC2520
