Features
-Low Power Consumption: Designed to consume minimal power, making them suitable for battery-powered devices and applications where energy efficiency is essential.
-Temperature Stability: Often incorporates temperature-compensated cuts or materials to minimize frequency variations across temperature ranges, ensuring reliable operation in various environmental conditions.
-Aging Characteristics: Exhibits low aging rates, ensuring long-term stability and reliable performance of frequency output over extended periods of use.
-Shock and Vibration Resistance: Engineered to withstand mechanical stress and environmental factors encountered in various applications, ensuring durability and reliability.
Applications
1.Wearable Devices
2.IoT Sensors
3.Consumer Electronics
4.Mobile Devices
Specifications
Dimensions (1.6x1.2x0.35)
Nominal frequency range：24.000~54.000 MHZ
Crystal cut：Fundamental [AT-cut]
Storage temperature range：-40°C~+85°C
Operating temperature range：-20°C~+70℃，30°C~+85°C
Frequency temperature characteristics(Ref. to +25°C)：±15x10-6，±25x10-6
Frequencytolerance(at+25°C)：±15x10-6
Equivalent series resistance：100Ω: 24.000~29.999 MHz，800Ω: 30.000~54.000 MHz
Load capacitance：8pF
Shunt capacitance：3pF max.
Level of drive：10μW (100μW max.)

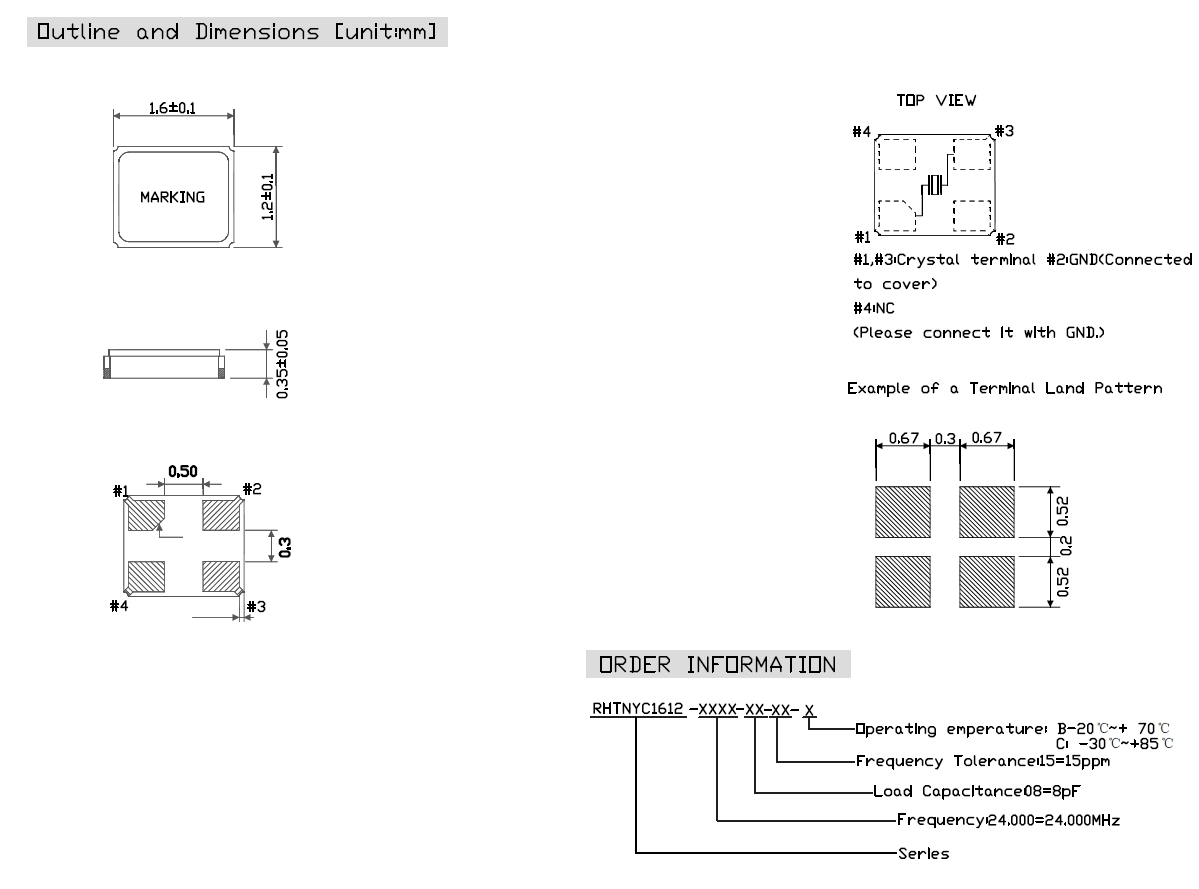

| Outline and Dimensions [unit:mm] |
|
Technical Documents
Please contact us for more information.
Crystal Units Ceramic SMD 1.6x1.2x0.35mm:RHTNYC1612
