Features
-Designed for automated PCB assembly using reflow soldering.
-Typical frequency ranges: 4 MHz to 60 MHz (varies by type and application).
-Ideal for battery-powered or low-power applications.
-Works with low-voltage oscillator circuits (often 1.8V to 3.3V).
Applications
1.Microcontroller and Processor Clocking
2.Wireless Communication Modules
3.Consumer Electronics
4.Automotive Electronics
Specifications
Dimensions (12.30x4.70x3.50)
Nominal frequency range：3.500-40.000 MHZ，30.000-80.000 MHZ
Crystal cut：Fundamental [AT-cut]，3rd overtone [AT-cut]
Storage temperature range：-40°C~+85℃
Operating temperature range：-20°C~+70℃,-40°C~+85℃
Frequency temperature characteristics(Ref. to +25°C)：±50x10-6
Frequency tolerance(at +25°C)：±30x10-6
Equivalent series resistance：Please Refer to the Following ESR Table
Load capacitance：series,16pF， 20pF,30pF
Shunt capacitance：5pF max.
Level of drive：10μW (100μW max.)

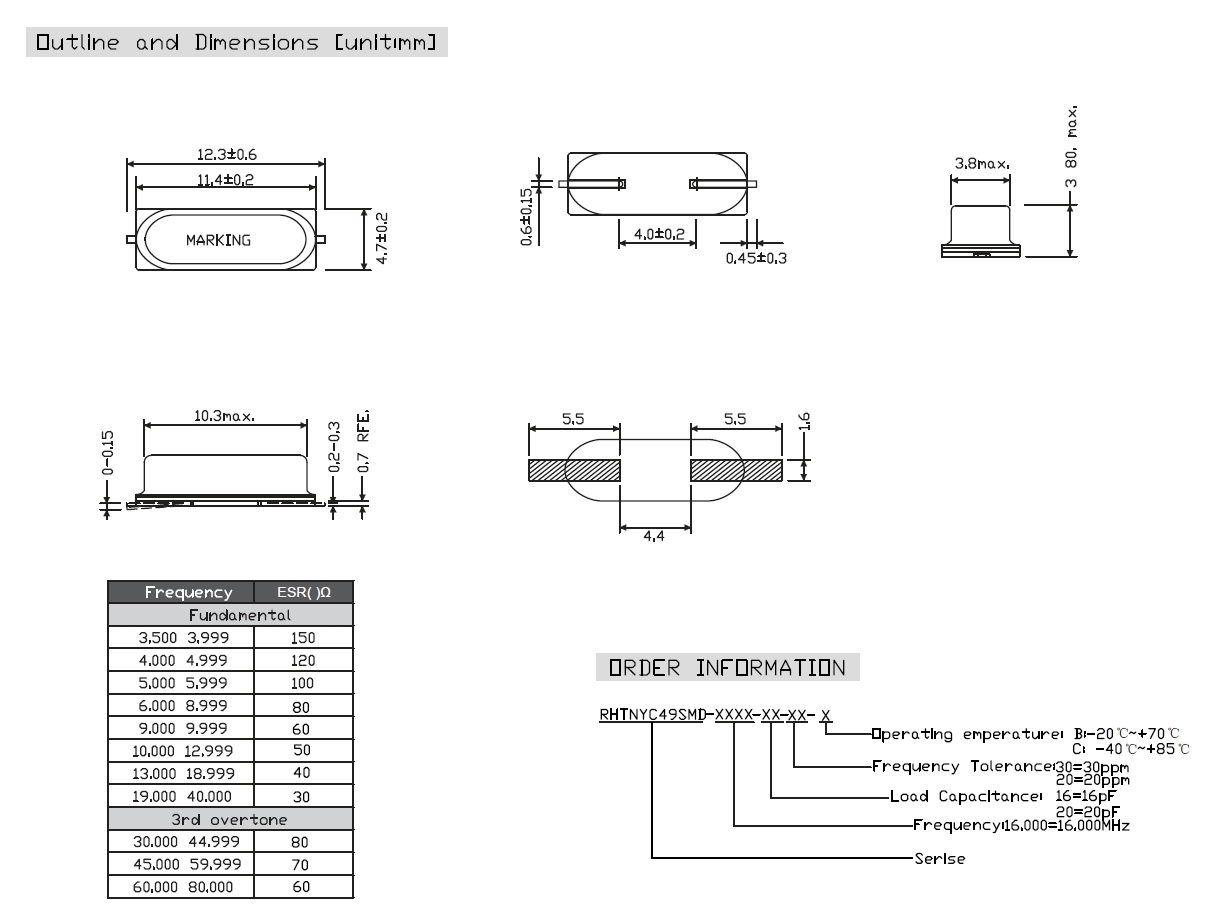

| Outline and Dimensions [unit:mm] |
|
Technical Documents
Please contact us for more information.
SMD Crystal Resonator:RHTNYC49SMD
