Features
-Temperature Stability: Typically designed with temperature-compensated materials or cuts to minimize frequency variations over temperature changes, ensuring reliable operation across varying environmental conditions.
-Low Power Consumption: Designed to consume minimal power, making it suitable for battery-powered devices where energy efficiency is critical.
-Aging Characteristics: Features low aging rates, ensuring long-term stability and reliability of frequency output over extended periods of use.
-Shock and Vibration Resistance: Constructed to withstand mechanical stress and environmental factors, ensuring reliable operation in various applications.
Applications
1.Medical Devices
2.IoT Devices
3.Wireless Sensors
4.Measurement Instruments
Specifications
Dimensions(3.0x8.0mm)
Nominal frequency range:32.768KHZ
Crystal cut:Fundamental [AT-cut]
Storage temperature range:-40°C~+85℃
Operating temperature range:-20°C-+70℃,-40°C-+85°C
Frequency temperature characteristics(Ref. to +25°C):±20x10-6 ，or specify
Frequency tolerance (at +25°C)：±10x10-6,±20x10-6，±30x10-6, or specify
Equivalent series resistance：50KΩ max.
Load capacitance：12.5pF, or specify
Shunt capacitance：1.6pF max.
Level of drive：1.0μW max.
Technical Documents
Please contact us for more information.

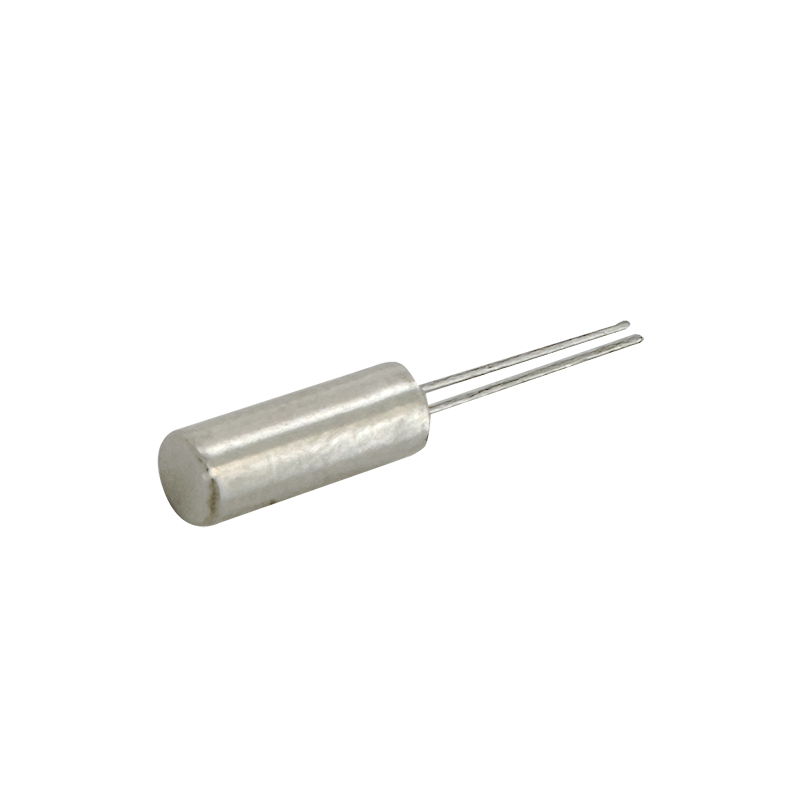

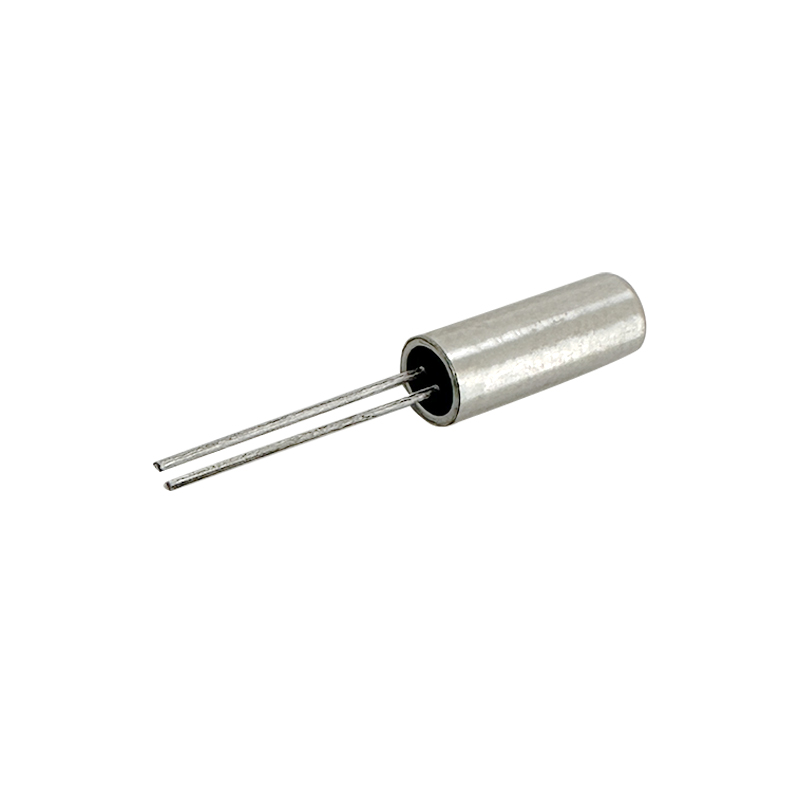

32.768KHz Crystal Units 3.0x8.0mm DIP:RHTNYU308
