Features
-32.768 kHz is the standard frequency for real-time clock (RTC) applications, commonly used in embedded systems, clocks, and watches.
-SMD (Surface-Mount Device): It’s designed for easy mounting directly onto a PCB (printed circuit board), suitable for automated assembly processes.
-The drive level is the power supplied to the crystal to excite it to oscillate. It's generally low for 32.768 kHz crystals, often around 1 µW to 100 µW.
-Typically, crystals have an aging rate of ±5 ppm/year or less, meaning the frequency may shift slightly over time due to factors like temperature and stress.
Applications
1.Real-Time Clocks
2.Wearables and IoT Devices
3.Automotive Electronics
4.Communication Devices
Specifications
Dimensions(8.0x3.8x2.4mm)
Nominal frequency range:32.768KHz
Crystal cut:Fundamental [AT-cut]
Storage temperature range:-55°C~+125°C
Operating temperature range:-40°C~+85°C
Turnover temperature:-25±5℃
Parabolic coefficient:-0.04x10-6/℃2 Max.
Frequency tolerance(at+25°C)：±20x10-6.or specify
Equivalent series resistance：50KΩ max.
Load capacitance：12.5pF,or specify
Shunt capacitance：0.9pF max.
Level of drive：1.0μw max.
| Outline and Dimensions [unit:mm] |
|
Technical Documents
Please contact us for more information.

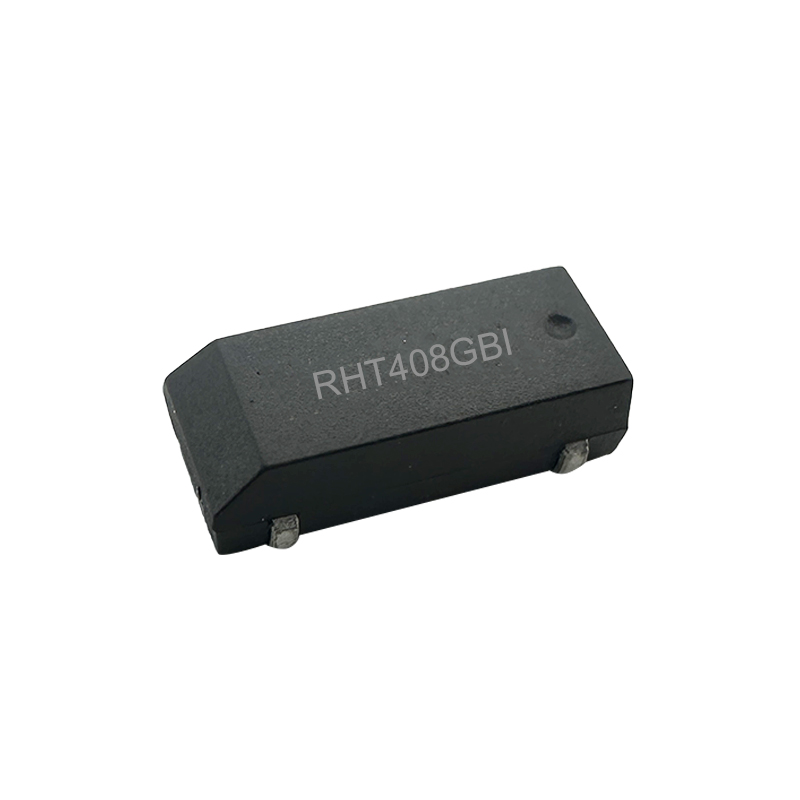

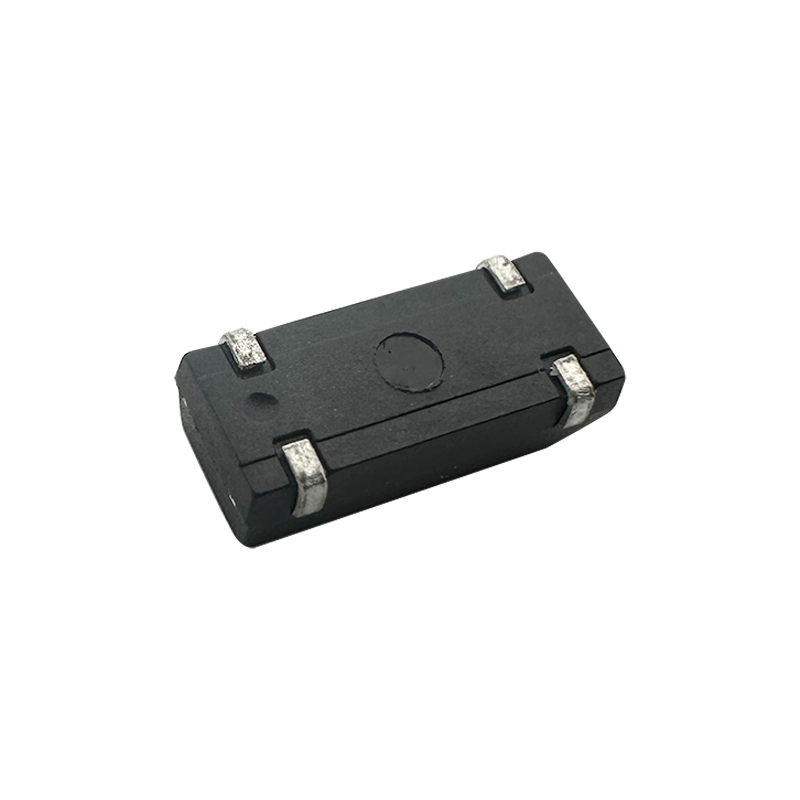

32.768KHz Crystal Units 8.0x3.8x2.4mm SMD:RHTNYC306
