Features
-Frequency Stability: Provides a stable oscillation frequency of 32.768 kHz, which is standard for real-time clock (RTC) applications and timing circuits.
-Ultra-Compact Size: The 2.0x1.2x0.6 mm SMD package is extremely small, suitable for miniaturized PCB designs and applications where space is at a premium.
-High Accuracy: Offers high precision in frequency output, crucial for maintaining accurate timekeeping and synchronization in electronic devices.
-Low Power Consumption: Designed to consume minimal power, making it suitable for battery-powered devices where energy efficiency is critical.
Applications
1.Wearable Devices
2.IoT Sensors and Devices
3.Consumer Electronics
4.Mobile Devices
Specifications
Dimensions (2.0x1.2x0.6mm)
Nominal frequency range:32 768KHz
Level of drive:0 5. μW max.
Storage temperature range:-55 ℃∼ +125℃
Operating temperature range:-40℃~+85℃
Turnover temperature:-25 ℃±5℃
Parabolic coefficient：-0.04 10-6 /℃ Max.
Frequency tolerance (at +25℃)：±20×10-6，or specify
Equivalent series resistance：90KΩ max.
Load capacitance：12.5pF,or specify
Shunt capacitance：1.3pF max.
| Outline and Dimensions [unit:mm] |
|
Technical Documents
Please contact us for more information.

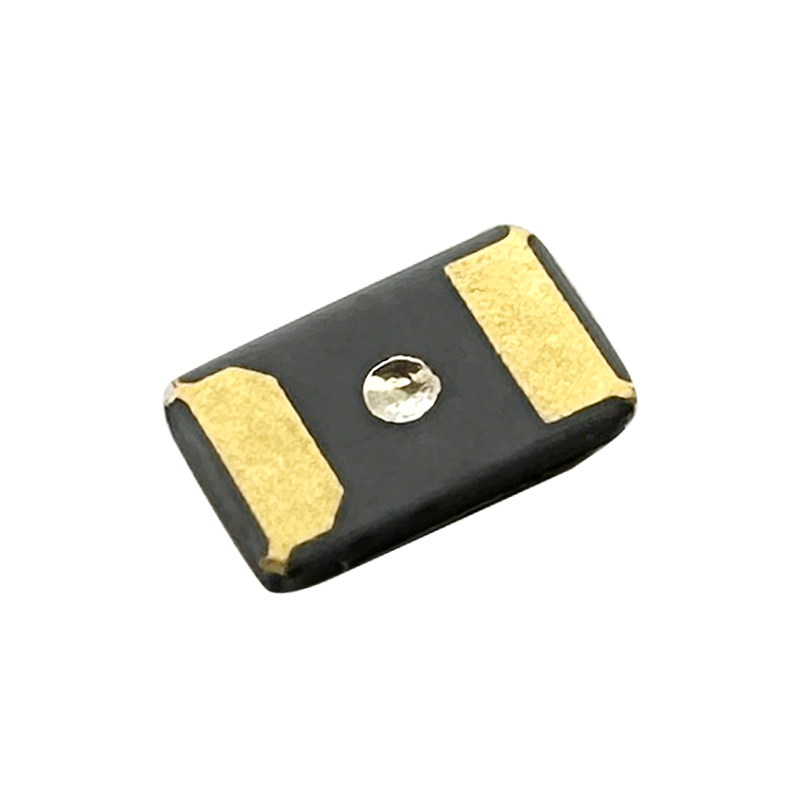

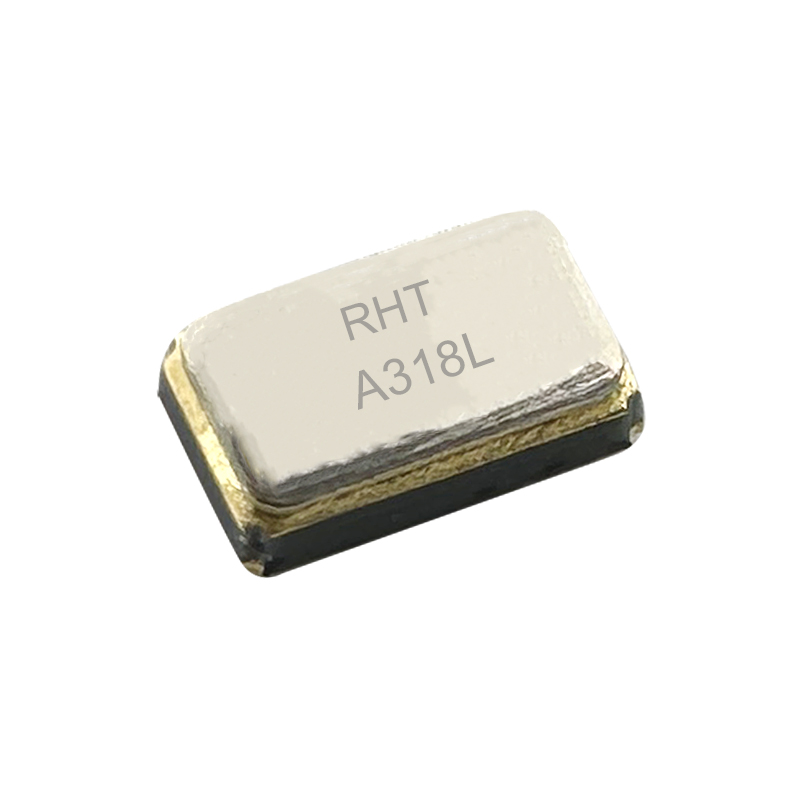

32.768KHz Crystal Units 2.0x1.2X0.6mm SMD:RHTNYC2012
