Features
-Frequency Stability: Provides a stable oscillation frequency of 32.768 kHz, ideal for real-time clock (RTC) applications, timing circuits, and synchronization purposes.
-Compact Size: The 3.2x1.5x0.8 mm SMD package is compact, suitable for modern PCB designs where space efficiency is crucial.
-High Accuracy: Offers high precision in frequency output, ensuring reliable timekeeping and synchronization in electronic devices.
-Low Power Consumption: Designed to consume minimal power, making it suitable for battery-operated devices and applications where energy efficiency is critical.
Applications
1.Communication Equipment
2.Industrial Automation
3.Medical Devices
4.Automotive Electronics
Specifications
Dimensions (3.2x1.5x0.8mm)
Nominal frequency range:32.768KHz
Level of drive: 0.5μW (1.0μW max.)
Storage temperature range:-55°C-+125°C
Operating temperature range:-40℃-+85°C
Turnover temperature:-25± 5°C
Parabolic coeficient:-0.04x10-6/℃2 Max
Frequencytolerance (at +25°C):±20x10-6,or specify
Equivalent series resistance：70KΩ max
Load capacitance：12.5pF,or specify
Shunt capacitance：1.0pF max
| Outline and Dimensions [unit:mm] |
|
Technical Documents
Please contact us for more information.

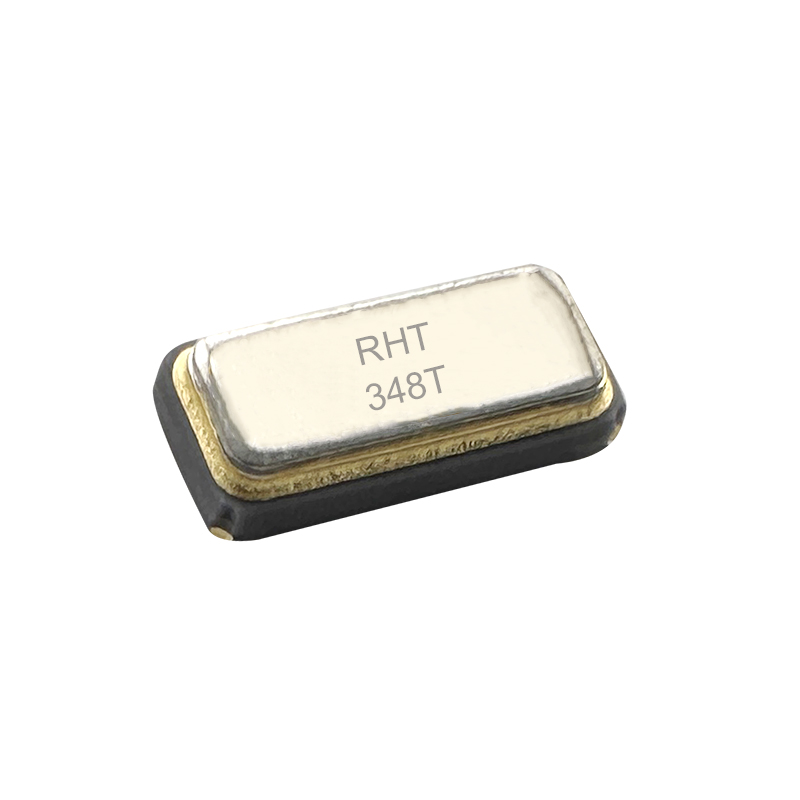

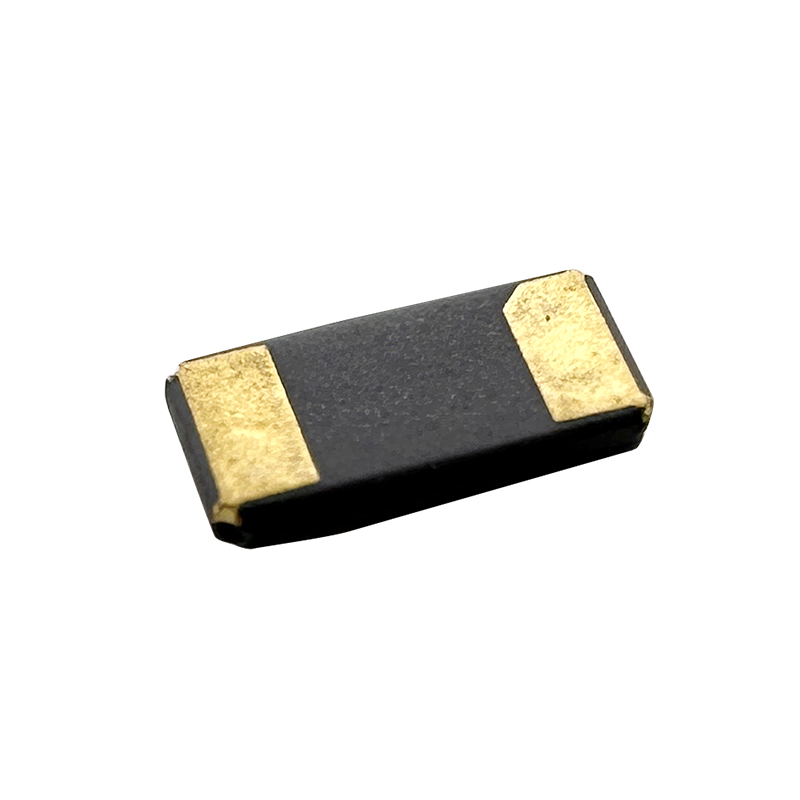

32.768KHz Crystal Units 3.2x1.5x0.8mm SMD:RHTNYC3215
