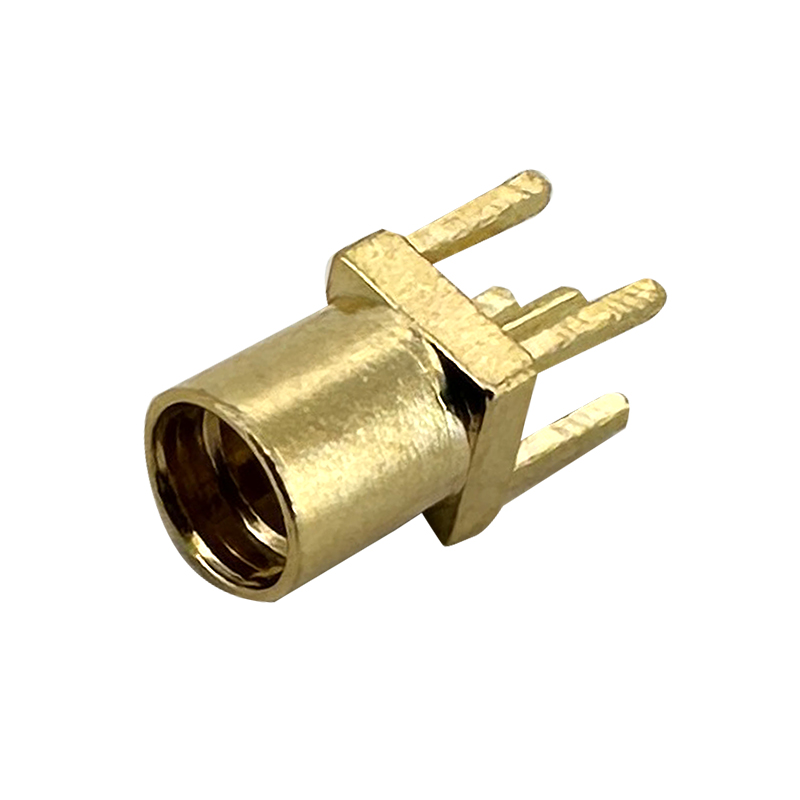

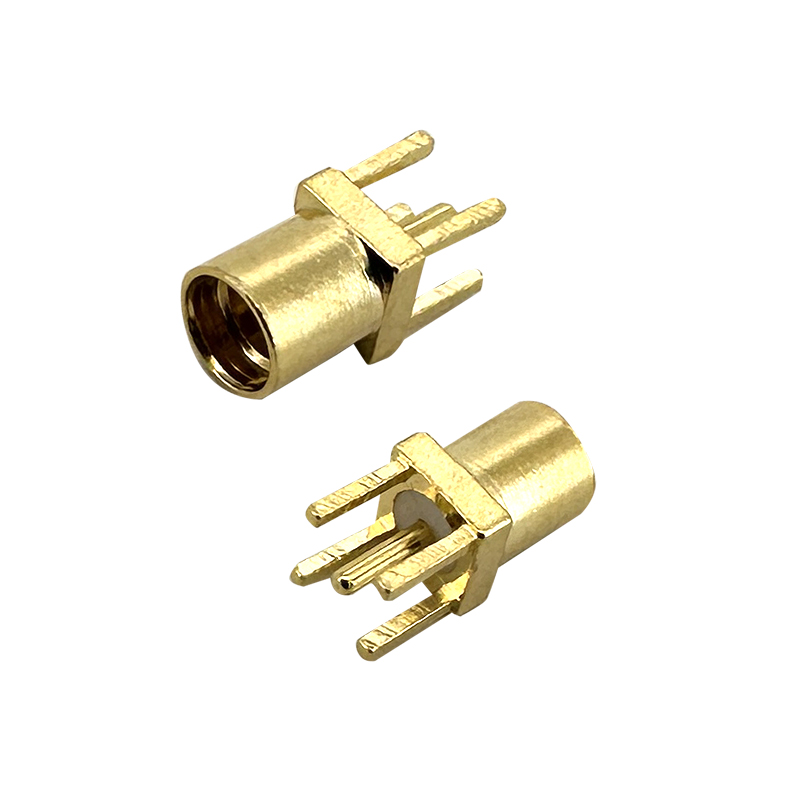

    Samtec MMCX6251N1-3GT30G-50 Compatible PCB Mount MMCX Connector (Jack,Female,50Ω):PCB Mount MMCX Connector (Jack,Female,50Ω):RHTAYMCX001

    Series Part No: RHTAYMCX001
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Samtec MMCX6251N1-3GT30G-50 Compatible

    Features

    -Connector Type:

    MMCX Jack (Female): The connector features a female center contact designed to mate with a male MMCX connector. It is known for its compact size compared to standard connectors like SMA or BNC.

    -Impedance:

    50 Ohms: Standard impedance matching for MMCX connectors, ensuring efficient signal transmission and minimal reflections in RF applications.

    -Frequency Range:

    Up to 6 GHz: Supports frequencies ranging from DC up to 6 GHz, making it suitable for high-frequency RF applications including wireless communication systems, antennas, and RF test equipment.

    -PCB Mounting:

    Surface Mount (SMT): Designed for surface-mount PCB mounting, which allows for direct integration onto the PCB. This method is suitable for modern electronics manufacturing processes, providing a secure and stable connection.

    Applications

    1.Test and Measurement Instruments

    2.Telecommunications Equipment

    3.Broadcast and Audio/Video Equipment

    4.Medical Devices

    Specifications

    PCB Mount MMCX Connector  With Jack Female  Straight Type

    Impedance:50 Ω

    Frequency Range:DC - 6 GHz

    VSWR:

    1.15 max. @ DC - 4 GHz

    1.40 max. @ 4 - 6 GHz

    RF-Leakage:

    60 dB minimum @ 1 GHz (flexible cable)

    70 dB minimum @ 1 GHz (semi-rigid cable)

    Voltage Rating (at sea level)  :≤ 170 Vrms

    Contact Resistance:

    center contact: ≤ 10 mΩ

    outer contact: ≤ 5 mΩ

    Insulation Resistance:1,000 MΩ minimum

    Dielectric Withstanding Voltage:500 Vrms (at sea level)

    Mechanical

    Mating:Snap-on coupling

    Contact Captivation:2.3 lbs

    Engagement Force:≤ 3.4 lbs (15N)

    Disengagement Force:≥ 1.4 lbs (6N)

    Durability (matings):500 cycles Min.

    Temperature Range:-55°C to +155°C

    Material

    Body and Outer Contacts :Brass, nickel or gold plated

    Male Contact :Brass, gold plated

    Female Contact :Beryllium copper or phosphor bronze, gold plated

    Crimp Ferrule:Copper or brass, nickel plated

    Insulator:LCP, PTFE or PFA

    Technical Documents

    Please contact us for more information.
