Features
-Connector Type: IC socket connectors are designed to accept and securely hold ICs, facilitating easy insertion and removal without damaging the IC or the socket contacts.
-Contact Material: Typically made from precision machined phosphor bronze or beryllium copper contacts with a choice of platings such as tin, gold, or silver. These materials ensure good electrical conductivity and durability.
-Socket Body Material: The socket body is usually made from high-temperature plastic or thermoplastic materials that can withstand the soldering temperatures during PCB assembly.
-Mounting Style: Available in through-hole and surface-mount (SMT) configurations. Through-hole sockets have pins that extend through the PCB and are soldered on the opposite side, while SMT sockets are directly soldered onto the surface of the PCB.
Applications
1.Prototyping and Development
2.PCB Assembly and Manufacturing
3.Embedded Systems
4.Industrial Applications
Specifications

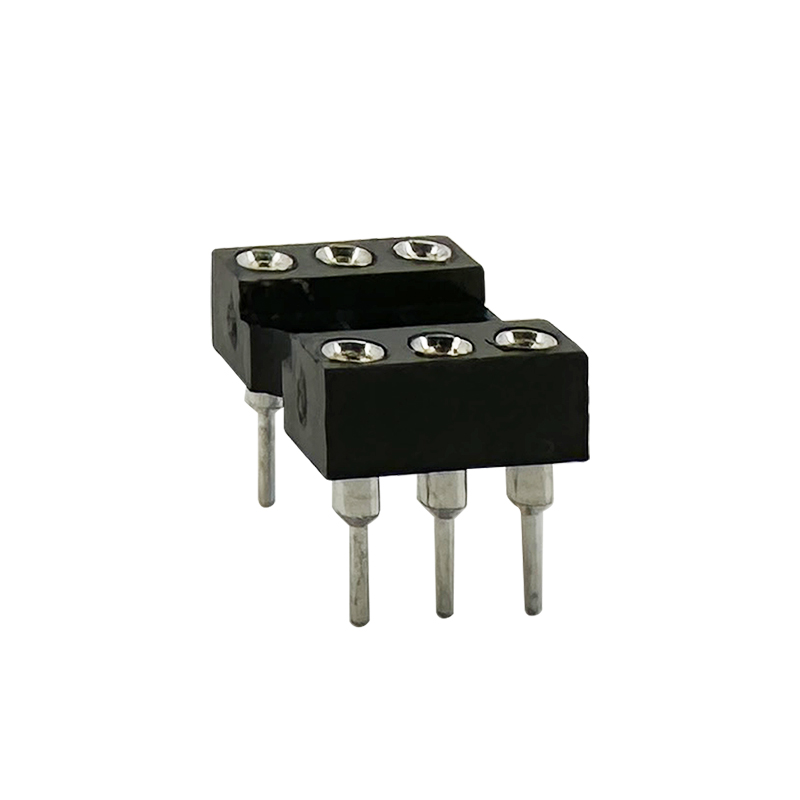

2.54mm Pitch IC Socket Connector
Order Information
RHTAYB17-XX-Y-2
XX-No.of 06~48pin
Y-Imported material Z-Domestic material
B Size:1=7.62mm 2=15.24mm
Material:
Housing: PBT UL94V~0
Contacts:Phosphor Bronze
Plating:Au 2u" or Sn over 50u" nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min. at 100V AC
Contact Resistance: 20m Ohm max.
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
