Features
-Polarization and Keying: Some female header connectors may feature polarization features or keying options to ensure proper alignment during mating. This prevents incorrect connections that could damage components or affect performance.
-Current Rating and Voltage: Rated for specific current carrying capacities and voltage levels, ensuring compatibility with the electrical requirements of various applications.
-Environmental Resilience: Built to operate reliably in various environmental conditions, including temperature fluctuations, vibration, and mechanical stress.
-Housing Material: The connector housing is typically made from durable thermoplastics such as PBT (Polybutylene Terephthalate) or Nylon. These materials provide mechanical strength and resistance to heat, chemicals, and environmental factors.
Applications
1. Consumer Electronics
2. Industrial Equipment
3. Telecommunication Devices
4. Automotive Electronics
Specifications

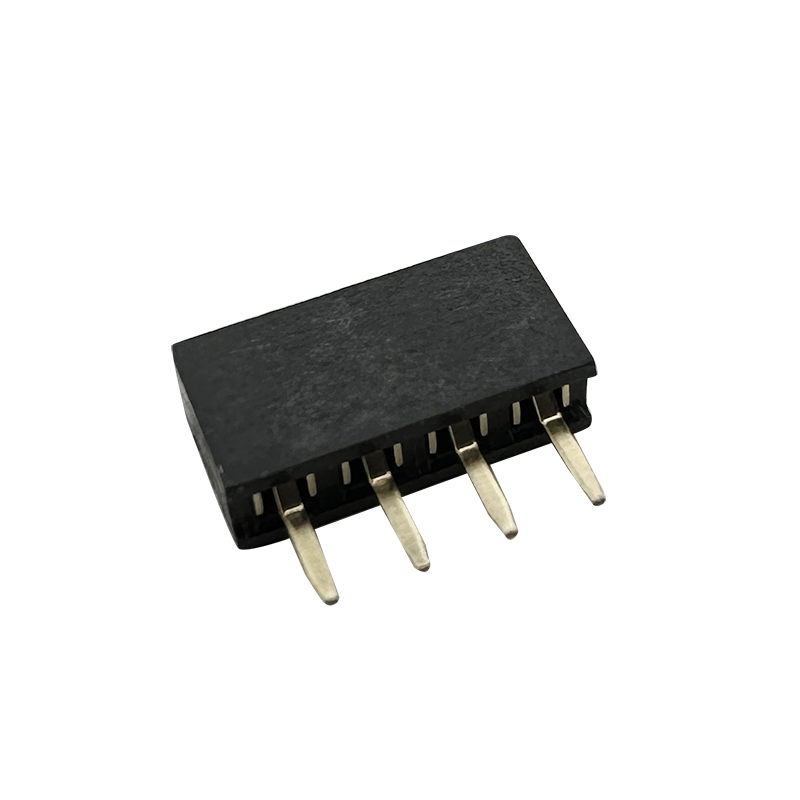

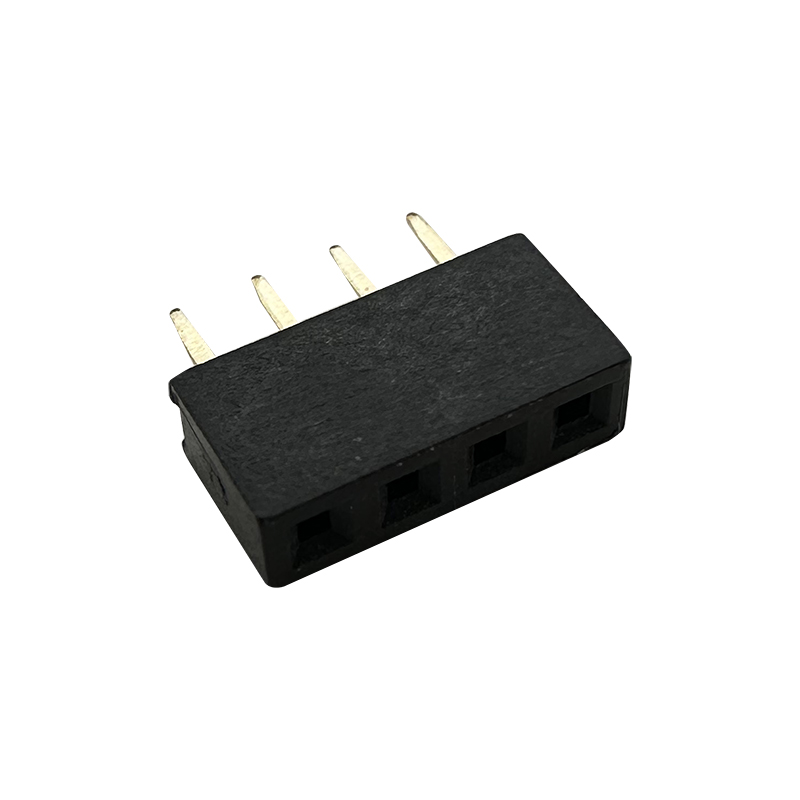

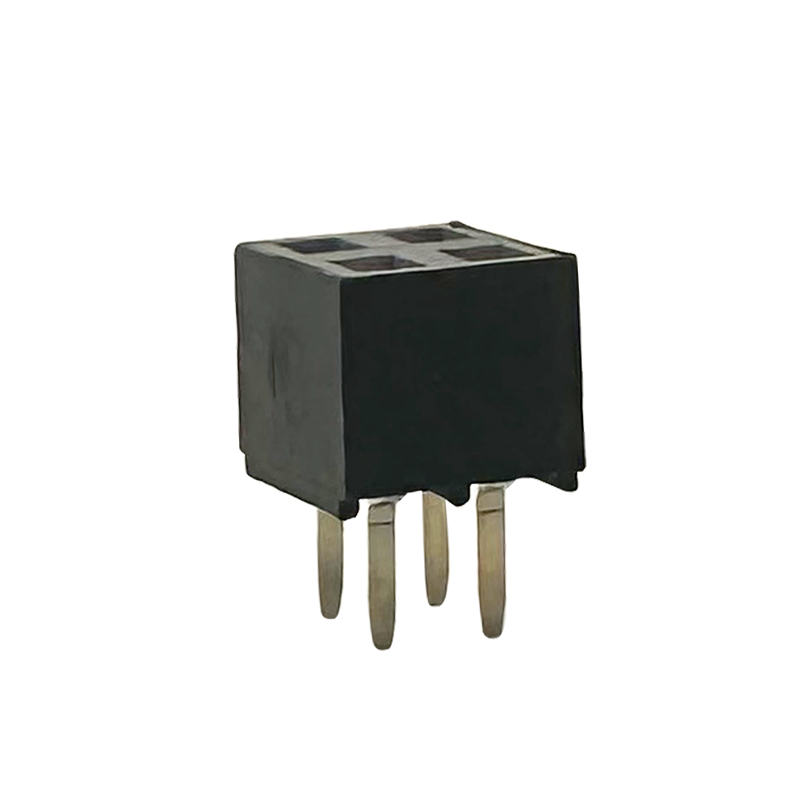

2.54mm Pitch Female Header Connector Height 5.0mm
Order Information
RHTAY08Y-5.0-2-XX-T-B
Height: 5.0mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP
Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
2.54mm Pitch Female Header Connector Height 5.0mm :RHTAY08Y-5.0
