Features
-Current Rating: 1A – 3A per pin (depends on material and plating).
-Voltage Rating: 50V – 250V, ideal for low-power and signal applications.
-Contact Resistance: ≤20mΩ, ensuring low power loss and signal integrity.
-Insulation Resistance: ≥1000MΩ, providing excellent electrical isolation.
Applications
1. Consumer Electronics
2. Industrial & Automation Equipment
3. Communication & Networking Equipment
4. Automotive Electronics
Specifications

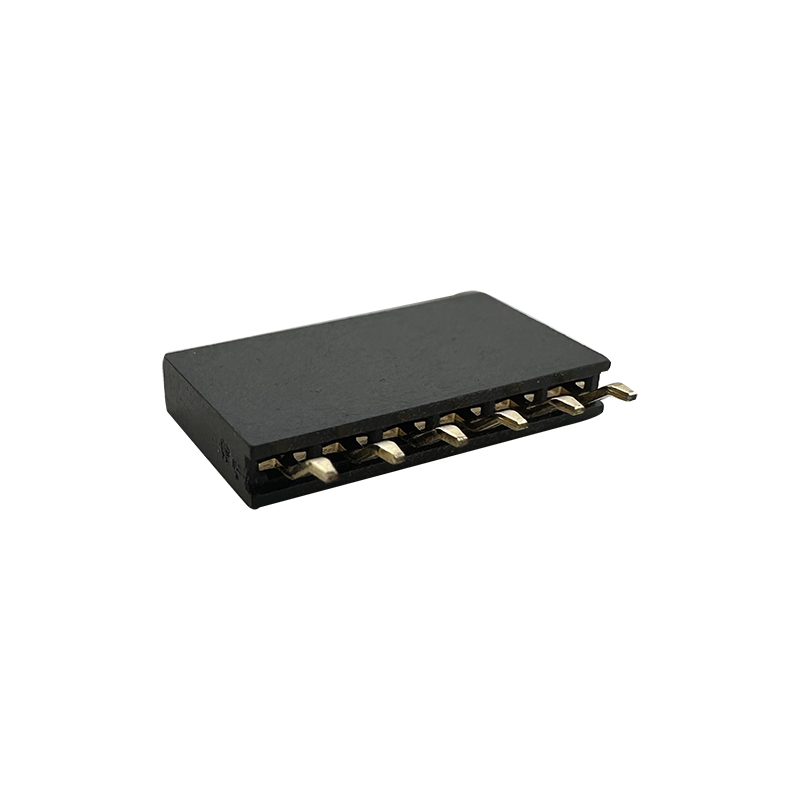

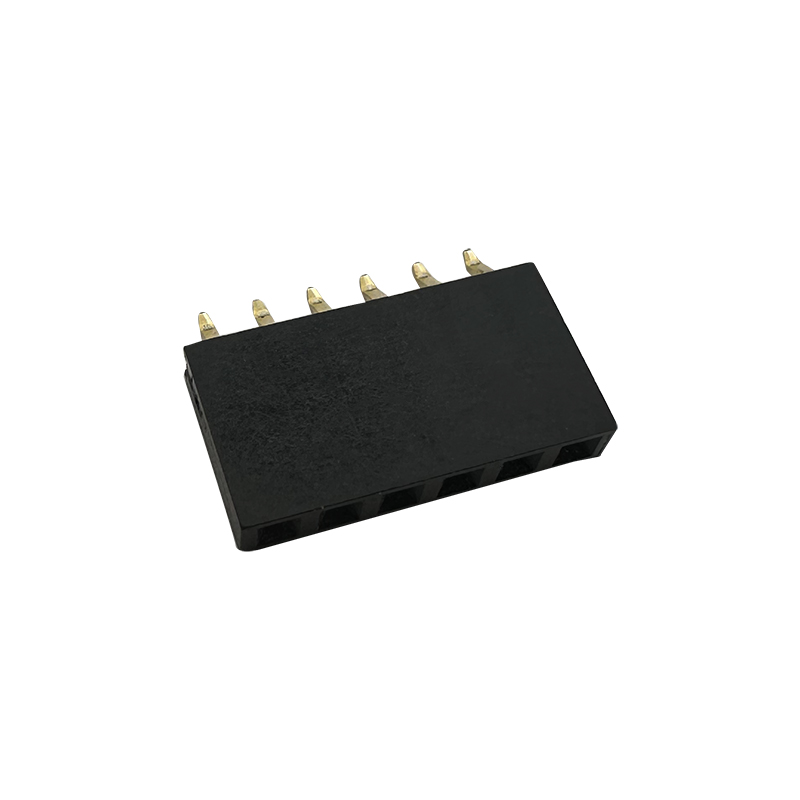

2.0mm Pitch Female Header Connector Height 6.35mm
Order Information
RHTAY08BG-6.35-1-XX-TR-L1xL2-B
Height: 6.35mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~80pin)
TR-SMT Pin
Size:L1xL2
Material:A=PBT B=PA6T C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
2.0mm Pitch Female Header Connector Height 6.35mm SMD :RHTAY08BG-6.35
