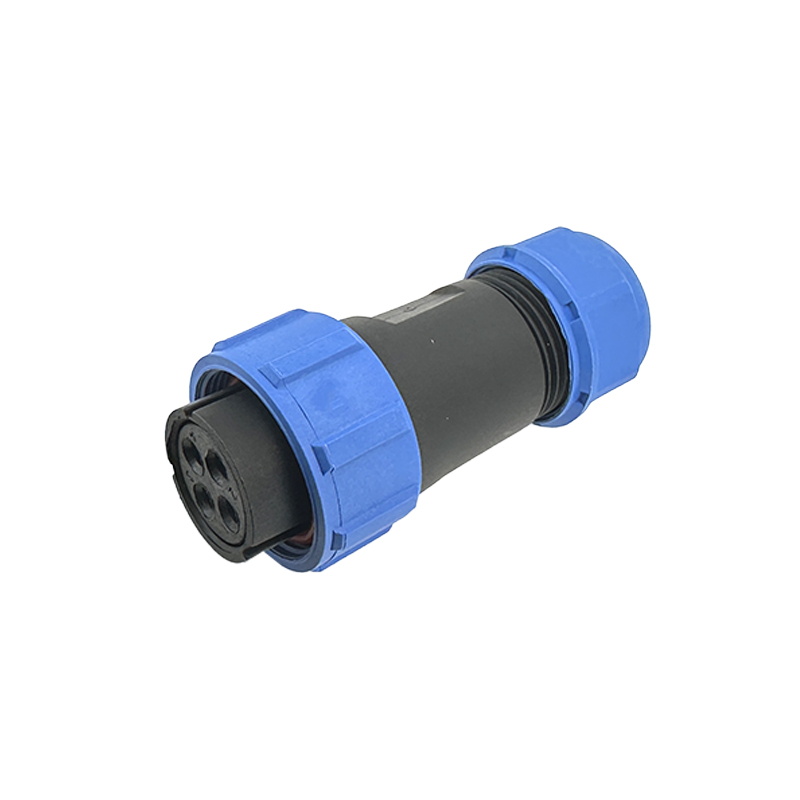

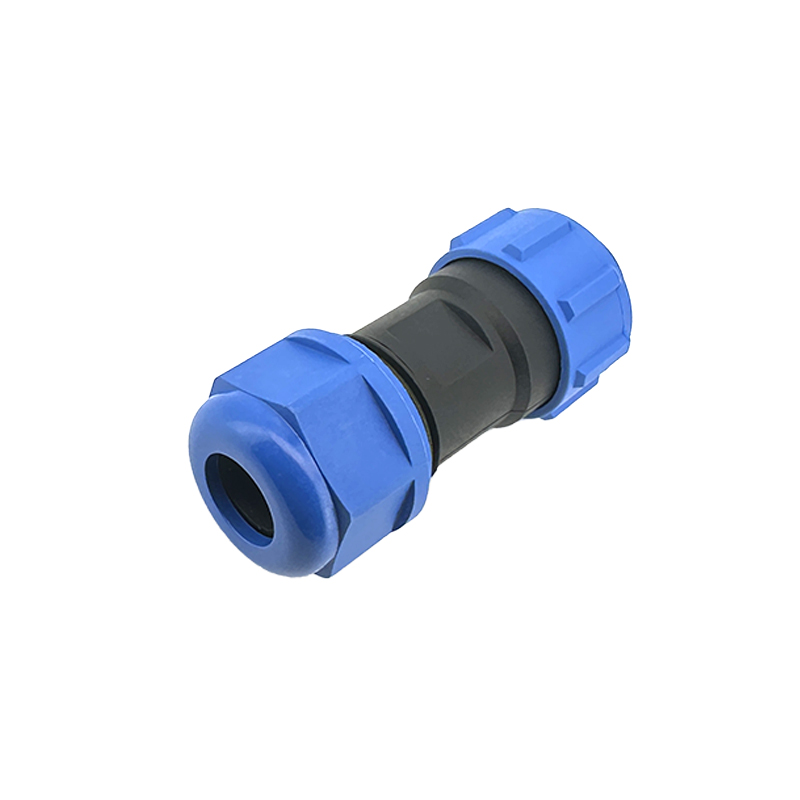

    W13&W17&W21 IP68 waterproof circular connectors : RE-C-W21B1

    Series Part No: RE-C-W21B1
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N
     Material & SPEC.
    1.Shell Material:                PPO,PA66 UL94V-0
    2.Insulation Materials:      PPS, High Temperature 260°C
    3.Contact:                        Brass,Gold-plated
    4.Insulation resistance:    2000MΩ
    5.Number of   poles:         2~12  poles
    6.Coupling:                       Threaded
    7.Termination:                  Solder
    8.Cable outer Diameter:    7~12mm
    9.IP Rating:                      IP68
    10.Durability:                    500 mating cycles
    11.Temperature Range:      -25°C~+80°C
