Features
-Poles and Throws:
Poles: Refers to the number of separate circuits that the switch can control simultaneously. A 4P switch can control four independent circuits.
Throws: Indicates the number of positions the switch can connect the poles to. A 2T switch has two positions or states (commonly referred to as ON/OFF or A/B positions).
-Mechanism:
Slide Action: Operated by sliding a lever or actuator from one position to another.
Stability: Typically, slide switches provide stable positions once switched due to their mechanical design.
-Electrical Functionality:
Double Pole: The switch has two separate circuits that are simultaneously controlled by the switch's sliding action.
Two Throw: The switch can connect each pole to one of two terminals, effectively allowing switching between two different circuits or states.
-Durability and Design:
Materials: Constructed from durable materials such as metal or high-quality plastics to withstand frequent use and provide reliable switching.
Compact: Designed to be compact and fit into various electronic devices and panels.
Applications
1.Audio Equipment
2.Electronic Instruments
3.Test Equipment
4.Battery-Powered Devices
Specifications
Slide Switch ON-ON(4P2T)
Rating: 0.3A 50VDC
Contact Resistance: 30mΩMax
Insulation Resistance:500VDC 100MΩ Min
Dielectric Strength: 500V AC 1 Minute
Operating Force: 100gf~ 800gf
Electrical Life :10,000 cycles
Technical Documents
Please contact us for more information.
Slide switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Slide switches.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

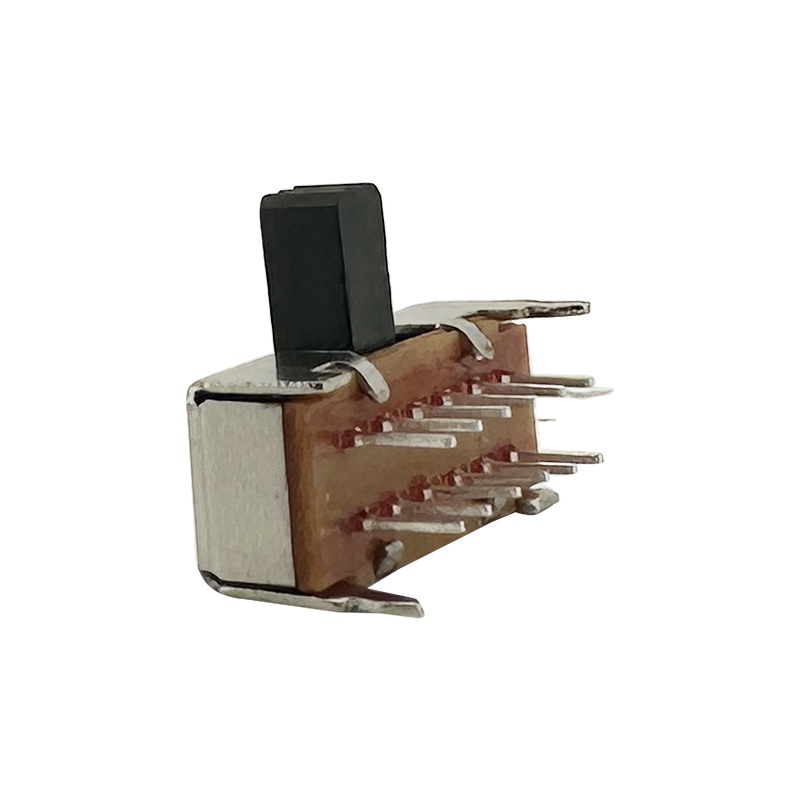

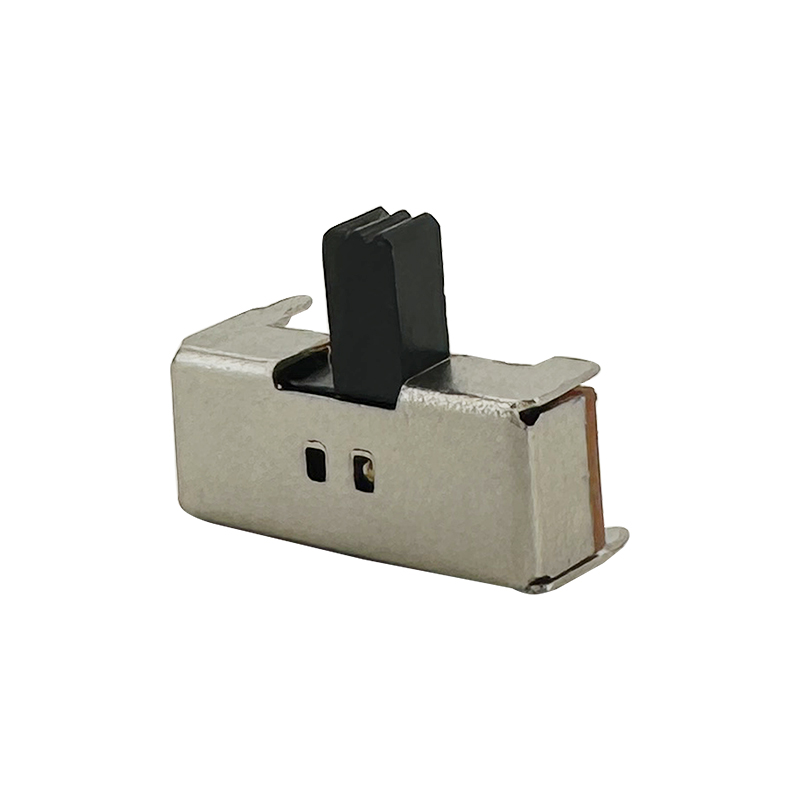

Slide Switch (4P2T):RHTGYK37-42D01
