Features
-Single-Pole, Four-Throw (1P4T): This configuration means that the switch has one common terminal (pole) that can be connected to one of four possible positions (throws). In total, it has five terminals: one common terminal (C) and four throw terminals (A, B, C, D).
-Functionality: Allows for switching between four different circuits or signal paths with a single switch, providing flexibility in routing signals or controlling functions across multiple options.
-Slide Mechanism: Operates with a sliding lever or toggle mechanism that moves between four positions to change the connection between the common terminal and one of the throw terminals.
-Durability: Designed to withstand repeated use and mechanical stress, ensuring reliable performance over a long service life.
Applications
1.Audio Equipment
2.Telecommunications
3.Automotive Electronics
4.Industrial Control Systems
Specifications
Slide Switch ON-ON -ON-ON (1P4T)
Rating: 0.3A 50VDC
Contact Resistance: 30mΩ Max
Insulation Resistance:500VDC 100MΩ Min
Dielectric Strength: 500V AC 1 Minute
Operating Force: 100gf~ 800gf
Electrical Life :10,000 cycles
Technical Documents
Please contact us for more information.
Slide switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Slide switches.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

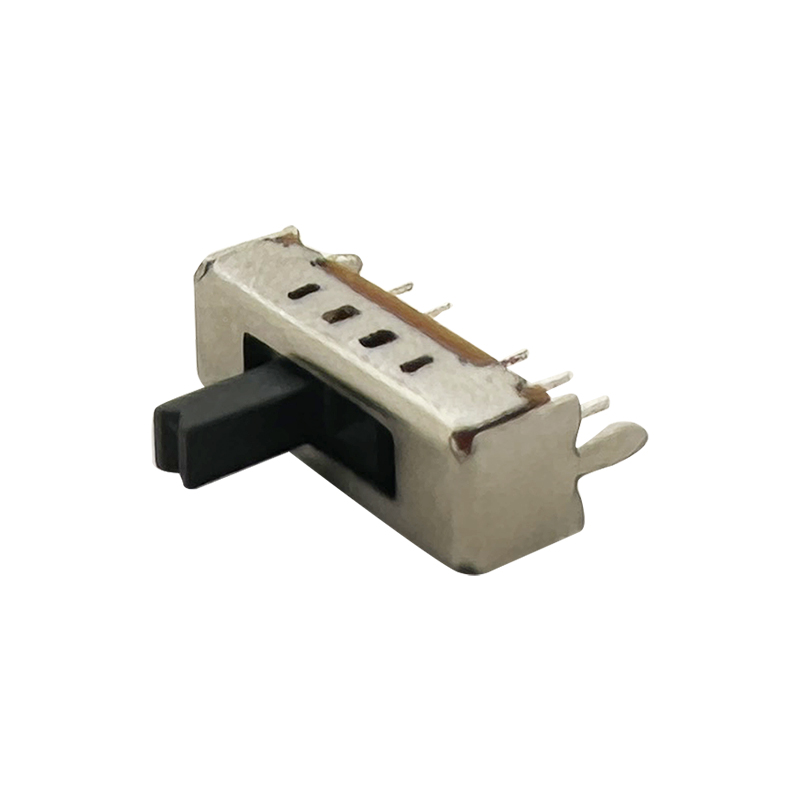

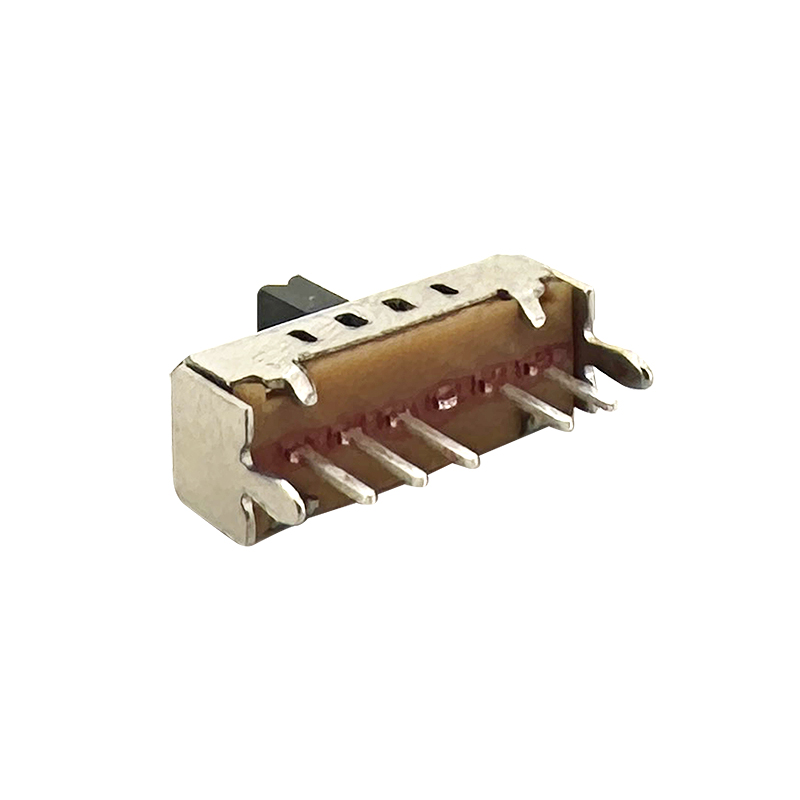

Slide Switch (1P4T):RHTGYK04-14D02
