Features
-Durability: They are designed to withstand repeated use and mechanical stress, offering reliable operation over a long service life.
-Electrical Ratings: Slide switches are available in various ratings for voltage and current, accommodating different electrical requirements depending on the application.
-Panel Mounting: They can be panel-mounted or PCB-mounted, depending on the design and application requirements.
-Actuator Types: Slide switches can have different types of actuators, including flat sliders, toggles, or rocker-style levers, depending on the switch design and application.
Applications
1.Computer Peripherals
2.Testing and Measurement Equipment
3.Telecommunications
4.Audio Equipment
Specifications
Slide Switch
RHTGYS01-12E06A NO-ON
RHTGYS01-12E06B NO-OFF-ON
Rating: 3A 250 VAC; 5A 125 VAC Or 28VDC
Contact Resistance: 10MΩ max
Insulation Resistance:1000MΩ Min
Dielectric Strength:1500V RMS @ sea level
Operation temperature: -30 ºC to 85 ºC
Electrical Life :30,000 cycles actuations at full load
Technical Documents
Please contact us for more information.
Slide switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Slide switches.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

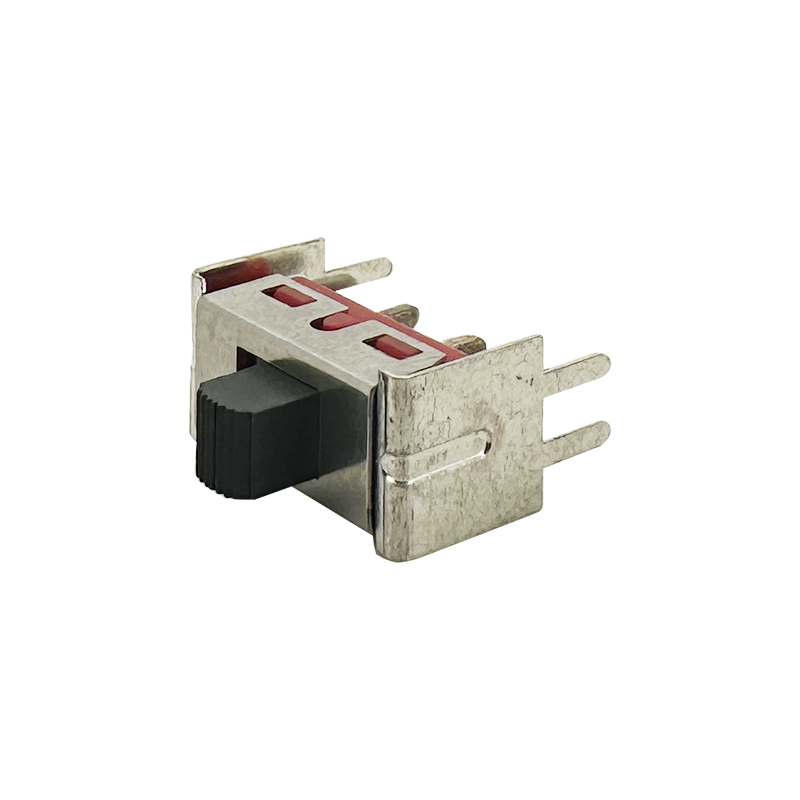

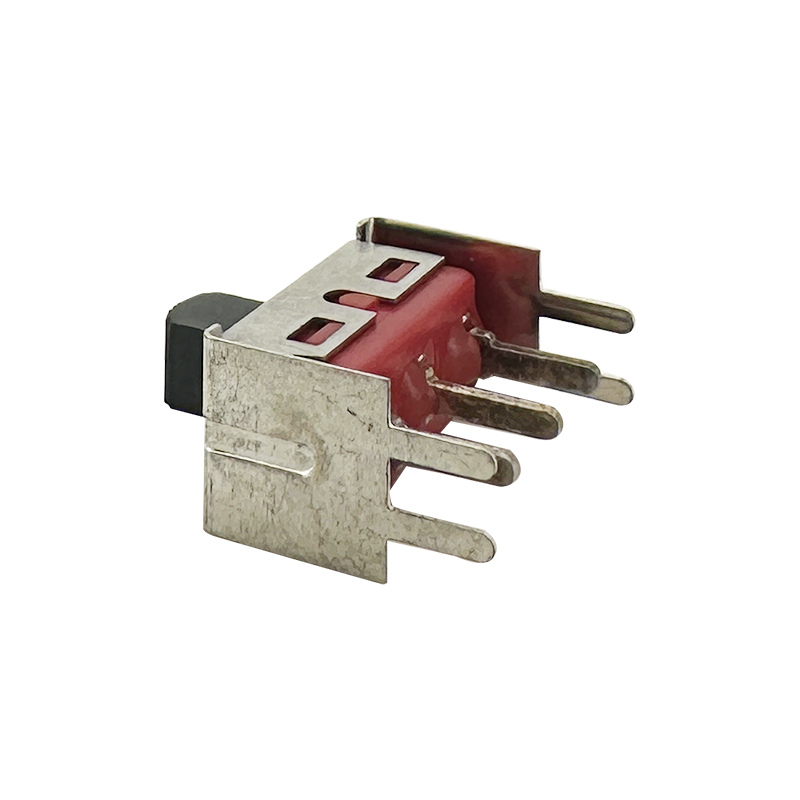

Slide Switch :RHTGYS01-12E06A&RHTGYS01-12E06B
