Features
-Medium Size: As the name suggests, these switches are medium-sized, making them ideal for applications that require a balance between compactness and ease of use. They are larger than miniature toggles but smaller than heavy-duty toggle switches.
-Toggle Mechanism: These switches operate by moving a lever (the toggle) to connect or disconnect electrical contacts. The lever provides a positive, tactile feedback, making it easy to feel when the switch is activated.
-High Durability: Medium toggle switches are designed for durability and can handle thousands to millions of switch cycles, depending on the model. They are often made with sturdy materials like stainless steel or brass to ensure a long operational life.
-Voltage Ratings: They can typically handle a wide range of voltage ratings, often up to 250V or higher, depending on the application.
Applications
1.Audio and Visual Equipment
2.Marine Applications
3.Power Tools
4.HVAC Systems
Specifications
RHTGYTS-1301 ON-OFF 2P
RHTGYTS-1301A ON-OFF 2P
RHTGYTS-1302 ON-ON 3P
RHTGYTS-1302A ON-ON 3P
RHTGYTS-1312 ON-(ON) 3P
RHTGYTS-1312A ON-(ON) 3P
RHTGYTS-1303 ON-OFF-ON 3P
RHTGYTS-1303A ON-OFF-ON 3P
RHTGYTS-1313 ON-OFF-(ON) 3P
RHTGYTS-1313A ON-OFF-(ON) 3P
RHTGYTS-1323 ON-OFF-(ON) 3P
RHTGYTS-1323A (ON)-OFF-(ON) 3P

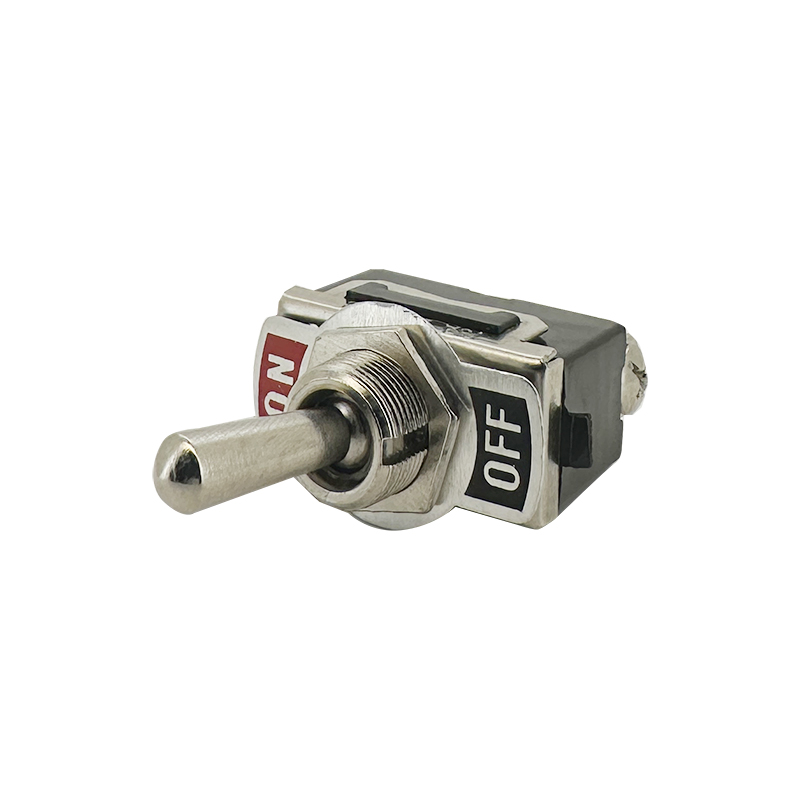

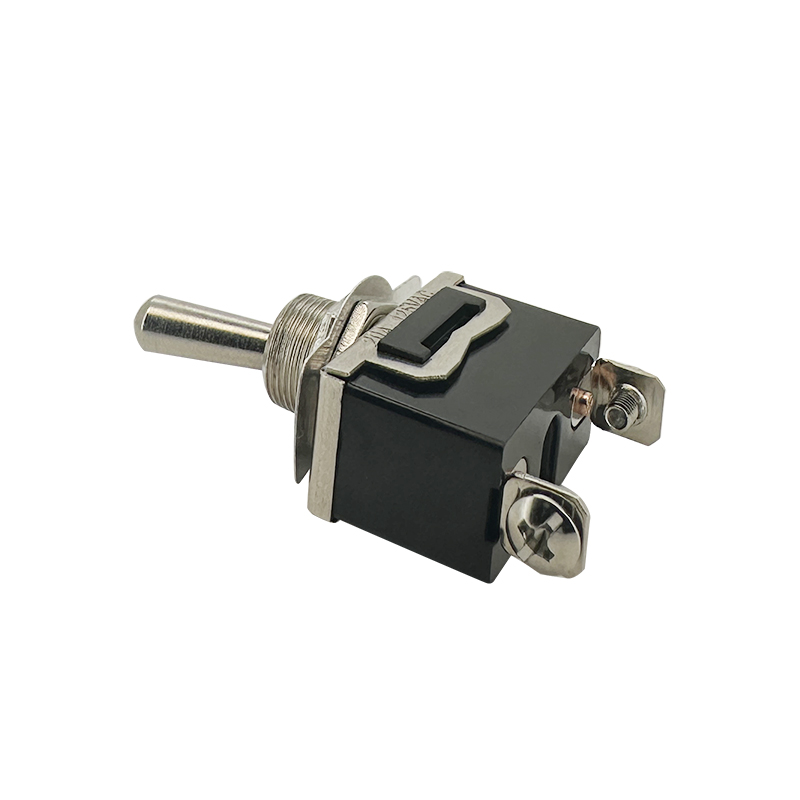

Medium Toggle switch
Rating: 10A 250VAC; 20A 125VAC
Contact Resistance: 50MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
Technical Documents
Please contact us for more information.
Toggle switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Toggle switches.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Medium Toggle switch:RHTGY25TS-1301A/RHTGY25TS-1302A/RHTGY25TS-1312A/RHTGY25TS-1303A/RHTGY25TS-1313A/RHTGY25TS-1323A
