Features
-Small Form Factor: Miniature toggle switches are designed to be very compact, making them ideal for space-constrained applications like portable electronics, small machinery, and control panels.
-Lightweight: Their reduced size and lightweight construction make them perfect for portable devices or applications where weight is a factor.
-User-Friendly: They are easy to operate with a simple flip of the toggle lever, providing intuitive control over the circuit.
-Low Power Consumption: Suitable for low-power circuits in portable gadgets, audio equipment, and other devices that don't require high current or voltage.
Applications
1.Home Appliances
2.Hobby and Model Electronics
3.Audio Equipment
4.Audio Equipment
Specifications
RHTGYS-102-F1 ON-ON
RHTGYS-112-F1 ON-(ON)
RHTGYS-103-F1 ON-OFF-ON
RHTGYS-113-F1 ON-OFF-(ON)
RHTGYS-123-F1 (ON)-OFF-(ON)
RHTGYS-202-F1 ON-ON
RHTGYS-212-F1 ON-(ON)
RHTGYS-203-F1 ON-OFF-ON
RHTGYS-213-F1 ON-OFF-(ON)
RHTGYS-223-F1 (ON)-OFF-(ON)

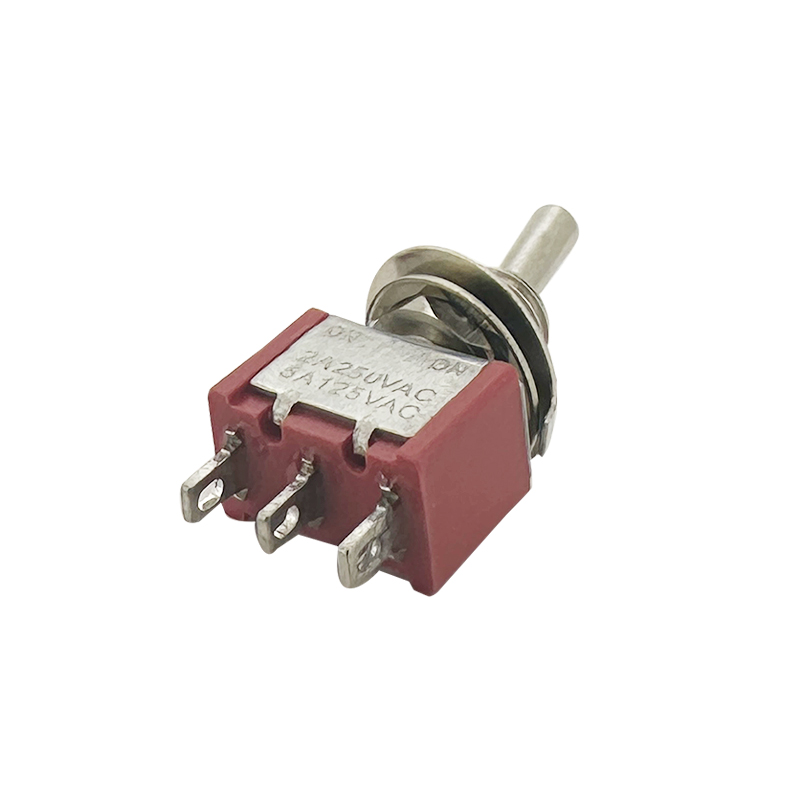

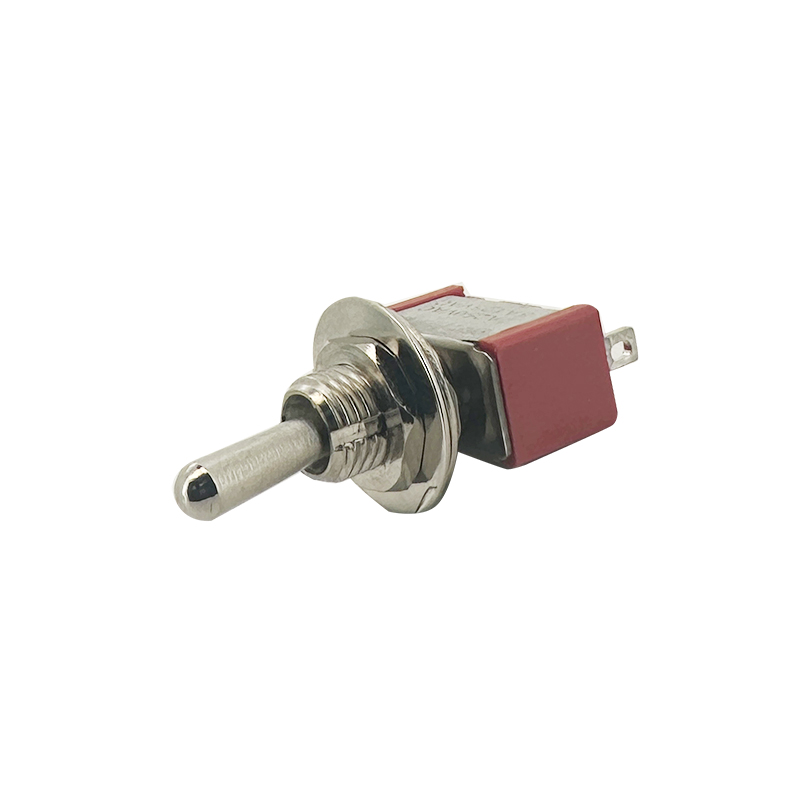

Miniature Toggle switch
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
Technical Documents
Please contact us for more information.
Toggle switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Toggle switches.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Miniature Toggle switch:RHTGYS-102-F1/RHTGYS-103-F1/RHTGYS-202-F1/RHTGYS-203-F1
