Features
-Environmental Sealing: Some models may offer sealing or coating options to protect against dust, moisture, and other environmental contaminants, ensuring reliable operation in harsh conditions.
-Switch Configuration: Offered in various configurations including SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw), DPST (Double Pole Single Throw), and DPDT (Double Pole Double Throw), providing flexibility in circuit design and switching applications.
-Actuation Force: Requires a specified force to toggle the lever, ensuring deliberate operation and minimizing accidental toggling.
-Design Variations: Available in different sizes, colors, actuator styles (such as round, rectangular, or paddle), and materials (such as plastic or metal) to suit specific design requirements and aesthetic preferences.
Applications
1.Consumer Electronics
2.Automotive Electronics
3.Industrial Equipment
4.Telecommunications
Specifications
RHTGYS-201-A2 ON-OFF
RHTGYS-211-A2 (ON)-OFF
RHTGYS-202-A2 ON-ON
RHTGYS-212-A2 ON-(ON)
RHTGYS-203-A2 ON-OFF-ON
RHTGYS-213-A2 ON-OFF-(ON)
RHTGYS-223-A2 (ON)-OFF-(ON)
RHTGYS-201-A1 ON-OFF
RHTGYS-211-A1 (ON)-OFF
RHTGYS-202-A1 ON-ON
RHTGYS-212-A1 ON-(ON)
RHTGYS-203-A1 ON-OFF-ON
RHTGYS-213-A1 ON-OFF-(ON)
RHTGYS-223-A1 (ON)-OFF-(ON)

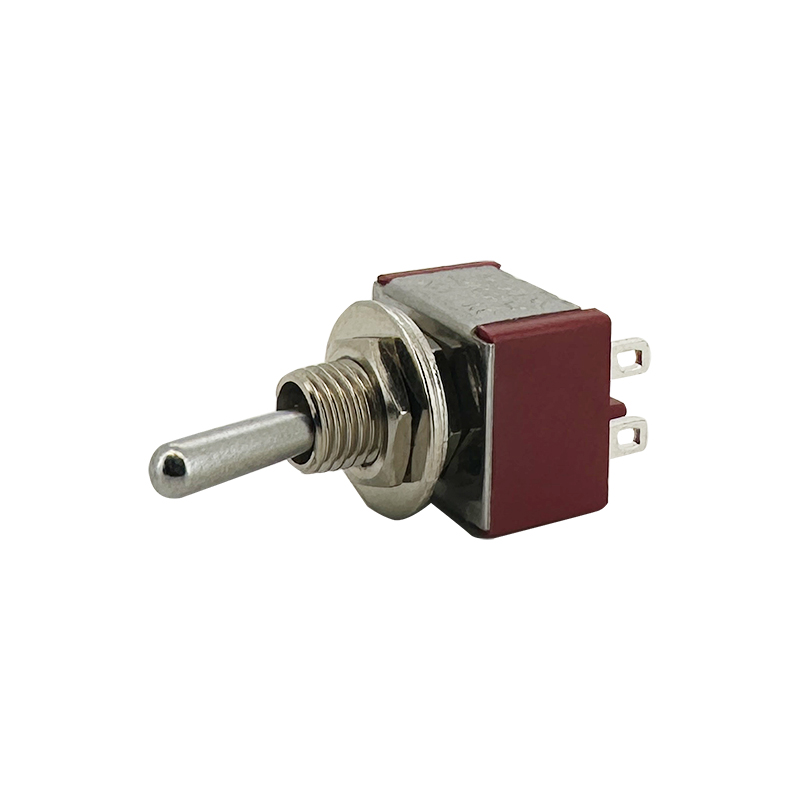

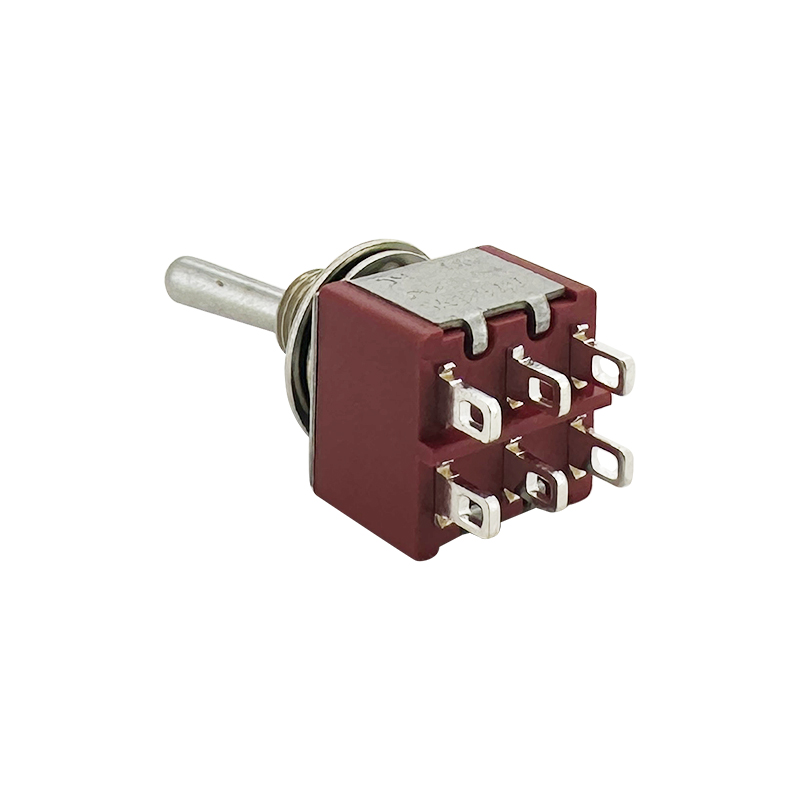

Miniature Toggle switch
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
Technical Documents
Please contact us for more information.
Toggle switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Toggle switches.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Miniature Toggle switch: RHTGYS-201-A1/ RHTGYS-201-A2/ RHTGYS-202-A1/ RHTGYS-202-A2/ RHTGYS-203-A1/ RHTGYS-203-A2
