Features
-Small Form Factor: As the name implies, miniature toggle switches are significantly smaller in size compared to traditional toggle switches, making them suitable for applications where space is limited.
-Lightweight: Due to their small design, these switches are lightweight, making them ideal for portable devices or applications requiring minimal weight.
-Lever Action: The switch operates via a toggle lever that moves back and forth to open or close an electrical circuit, typically with a positive mechanical feel or "click" when toggled.
-Easy to Operate: The toggle mechanism is simple, requiring minimal effort to switch on or off, and provides clear tactile feedback.
Applications
1.Modeling and Hobby Electronics
2.Testing and Measurement Tools
3.Automotive and Motorcycle Controls
4.Small Machinery and Power Tools
Specifications
RHTGYS-102-C3 ON-ON
RHTGYS-112-C3 ON-(ON)
RHTGYS-103-C3 ON-OFF-ON
RHTGYS-113-C3 ON-OFF-(ON)
RHTGYS-123-C3 (ON)-OFF-(ON)
RHTGYS-202-C3 ON-ON
RHTGYS-212-C3 ON-(ON)
RHTGYS-203-C3 ON-OFF-ON
RHTGYS-213-C3 ON-OFF-(ON)
RHTGYS-223-C3 (ON)-OFF-(ON)
Miniature Toggle switch
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
Technical Documents
Please contact us for more information.
Toggle switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Toggle switches.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

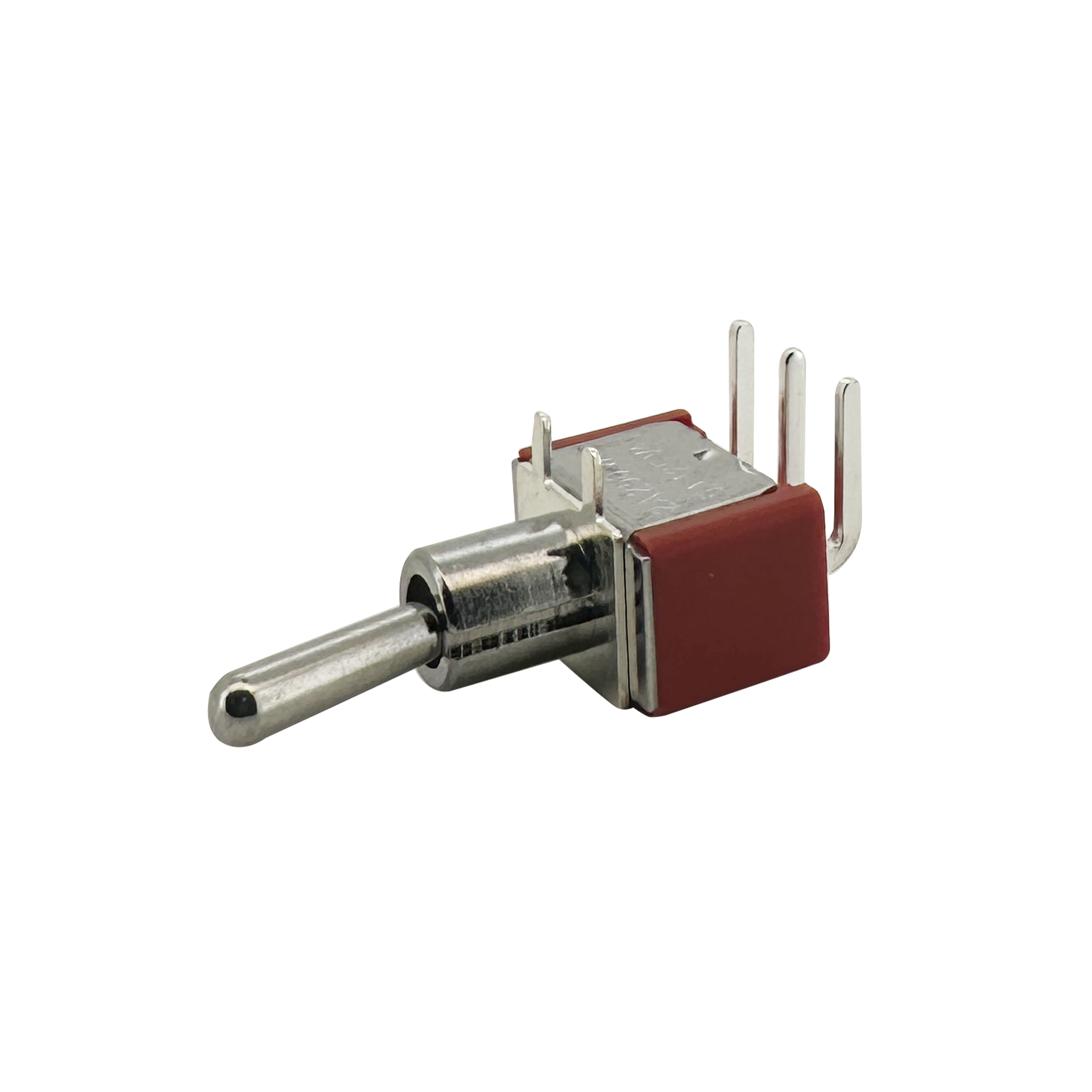

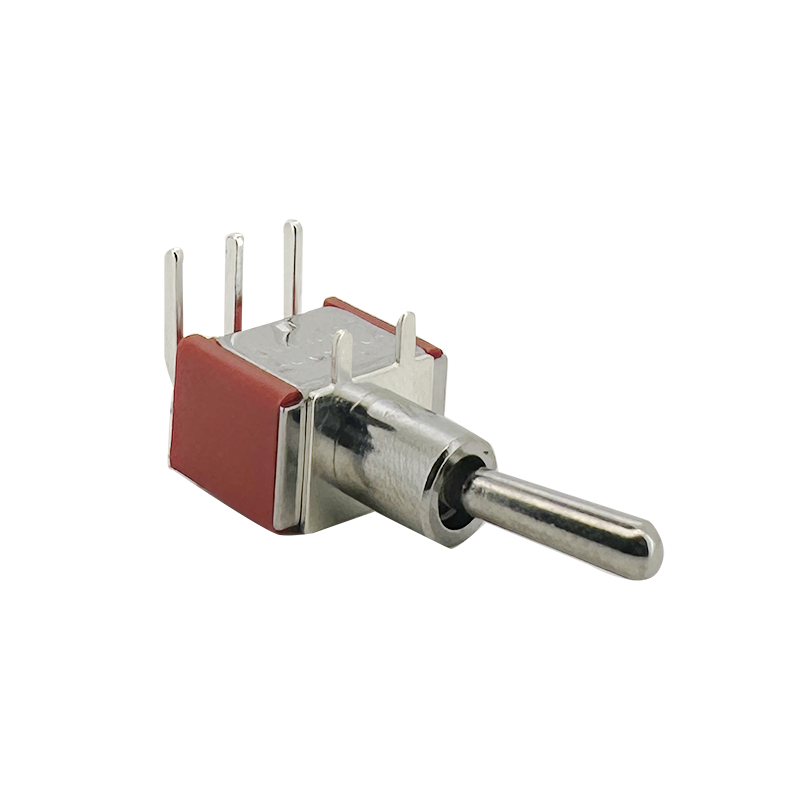

Miniature Toggle switch :RHTGYS-102-C3/RHTGYS-103-C3/RHTGYS-202-C3/RHTGYS-203-C3
