Features
-Switch Configuration: They are available in various configurations, such as single-pole single-throw (SPST) or multi-pole multi-throw (MPMT), allowing them to be used in different circuit designs.
-Mounting Type: Tactile switches can be either through-hole mounted (where leads go through holes in the PCB) or surface-mount (where the switch is soldered directly onto the surface of the PCB).
-Durability: Tactile switches are designed to withstand a large number of actuations, making them suitable for frequent use. They often have a long lifespan, which can range from thousands to millions of actuations depending on the design and quality.
-Size and Shape: They come in various sizes and shapes to fit different applications and design requirements. Common forms include small surface-mount components for electronics and larger, more robust switches for industrial or consumer electronics.
Applications
1.Industrial Controls
2.Automotive Applications
3. Industrial Equipment
4. Medical Devices
Specifications
Tactile Switch
ELECTRICAL
1.Rating: 50mA 12VDC
2.Contact Resistance : 50mΩ max(initial)
3.Insulation Resistance: 100MΩ(minDC 250V)
4.Dielectric Strength : AC250V(50/60Hz for 1minute)
5.Electrically Life: 100000cycles
6.Environment temperature:-20ºC~+70ºC
7.Operating Force: 180/250(±30gf)
8.Seal temperature:260ºC~ 280ºC
Technical Documents
Please contact us for more information.

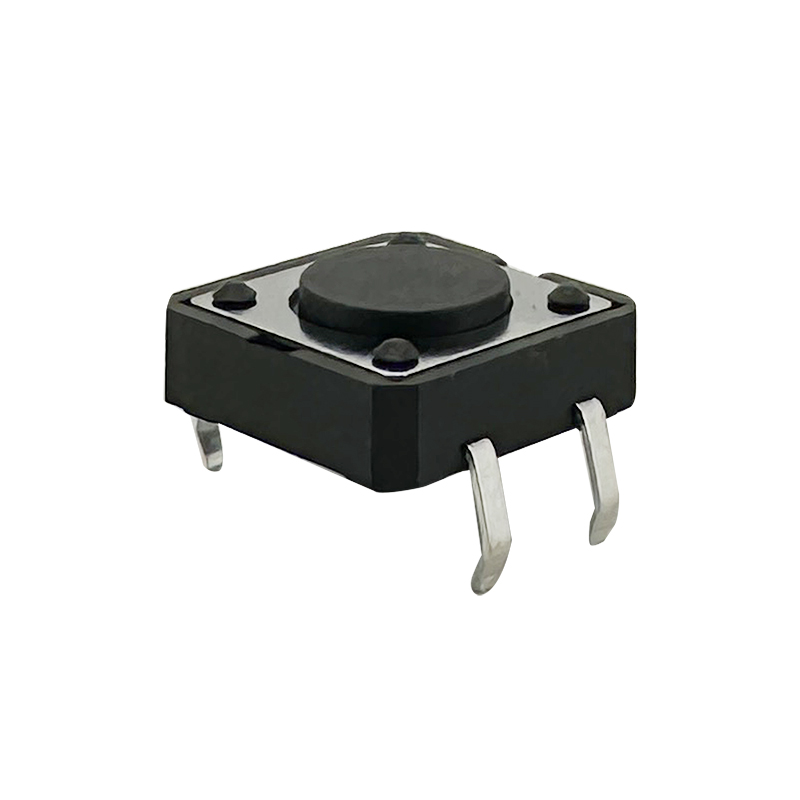

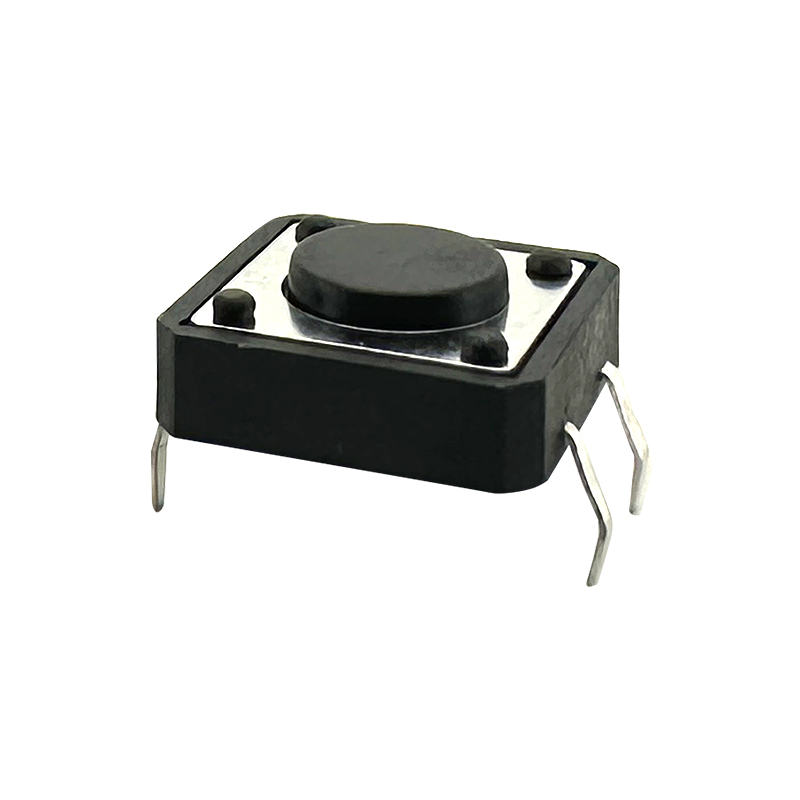

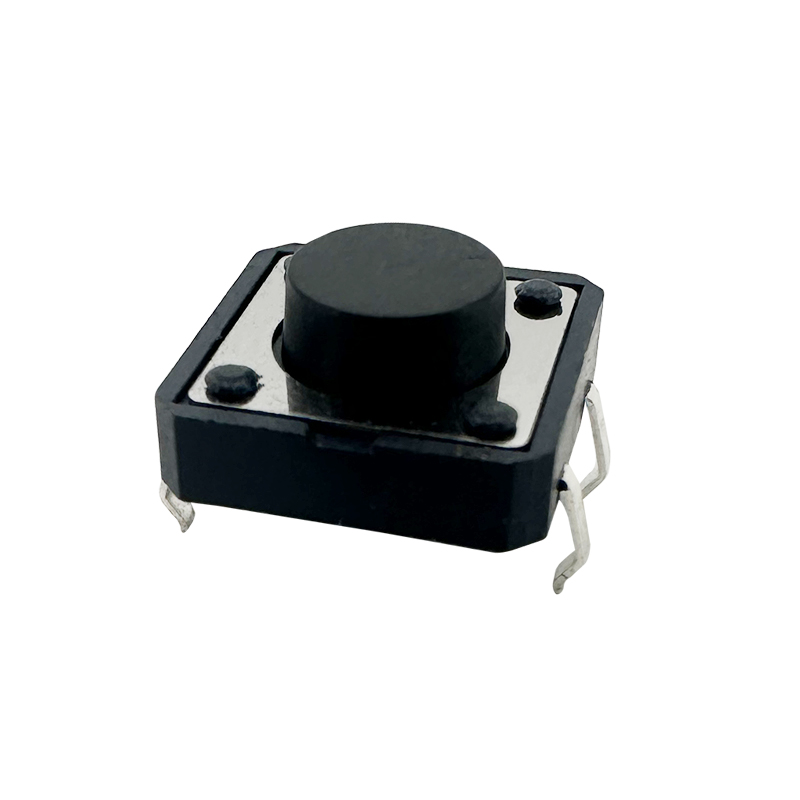

Tactile Switch :RHTGYS1202
